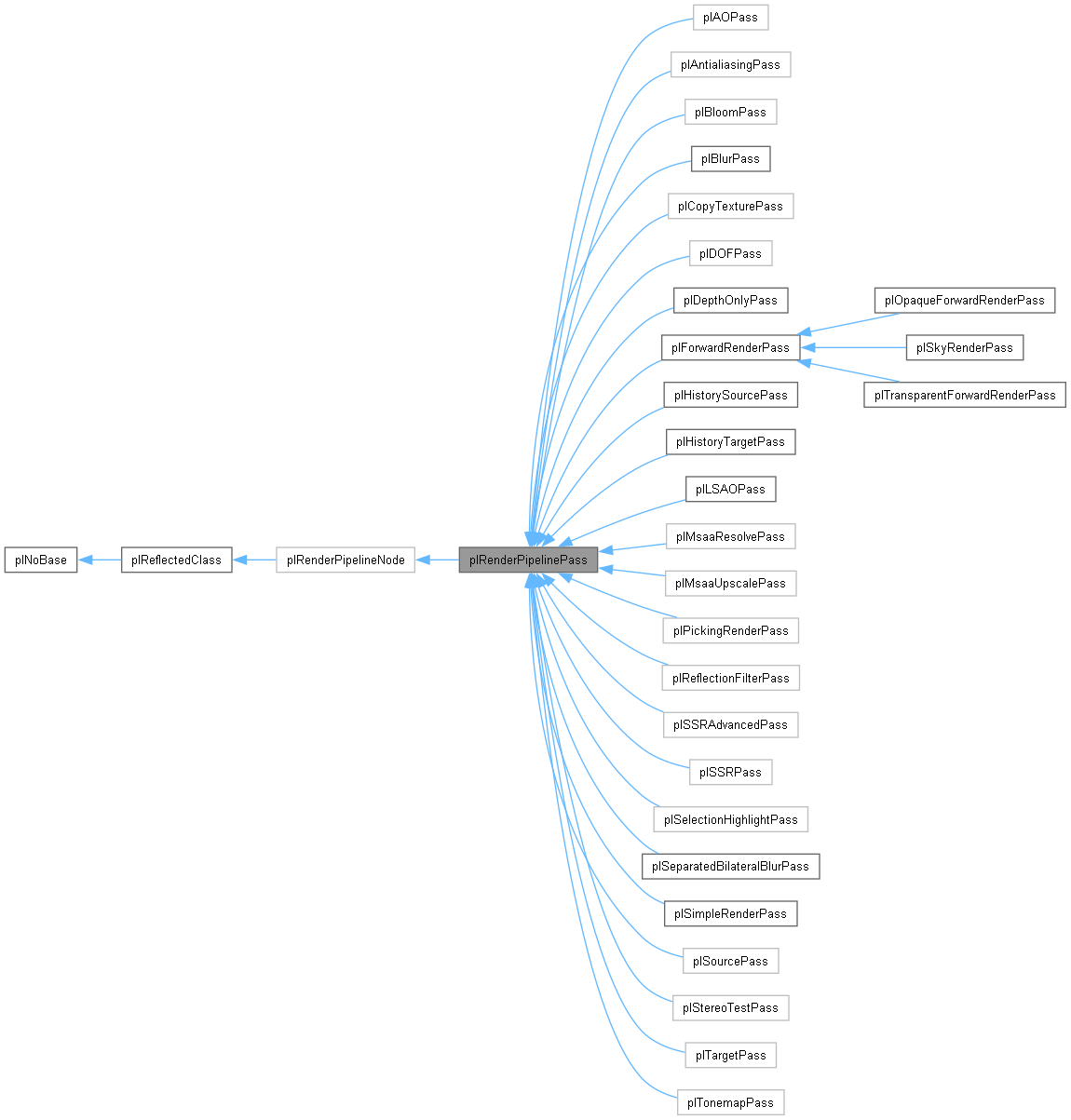

Inheritance diagram for plRenderPipelinePass:

[legend]

Public Member Functions
	plRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual bool	GetRenderTargetDescriptions (const plView &view, const plArrayPtr< plGALTextureCreationDescription *const > inputs, plArrayPtr< plGALTextureCreationDescription > outputs)=0
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual plGALTextureHandle	QueryTextureProvider (const plRenderPipelineNodePin *pPin, const plGALTextureCreationDescription &desc)

virtual void	InitRenderPipelinePass (const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	Execute (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)=0
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual void	ExecuteInactive (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)

virtual void	ReadBackProperties (plView *pView)
	Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

virtual plResult	Serialize (plStreamWriter &inout_stream) const

virtual plResult	Deserialize (plStreamReader &inout_stream)

void	RenderDataWithCategory (const plRenderViewContext &renderViewContext, plRenderData::Category category, plRenderDataBatch::Filter filter=plRenderDataBatch::Filter())

PL_ALWAYS_INLINE plRenderPipeline *	GetPipeline ()

PL_ALWAYS_INLINE const plRenderPipeline *	GetPipeline () const

Public Member Functions inherited from plRenderPipelineNode
void	InitializePins ()

plHashedString	GetPinName (const plRenderPipelineNodePin *pPin) const

const plRenderPipelineNodePin *	GetPinByName (const char *szName) const

const plRenderPipelineNodePin *	GetPinByName (plHashedString sName) const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetInputPins () const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Friends
class	plRenderPipeline

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Member Function Documentation

◆ Execute()

virtual void plRenderPipelinePass::Execute	(	const plRenderViewContext &	renderViewContext,
		const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

pure virtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implemented in plAntialiasingPass, plAOPass, plBloomPass, plBlurPass, plCopyTexturePass, plDepthOnlyPass, plDOFPass, plForwardRenderPass, plHistorySourcePass, plHistoryTargetPass, plLSAOPass, plMsaaResolvePass, plMsaaUpscalePass, plPickingRenderPass, plReflectionFilterPass, plSelectionHighlightPass, plSeparatedBilateralBlurPass, plSimpleRenderPass, plSourcePass, plSSRAdvancedPass, plSSRPass, plStereoTestPass, plTargetPass, plTonemapPass, and plTransparentForwardRenderPass.

◆ GetRenderTargetDescriptions()

virtual bool plRenderPipelinePass::GetRenderTargetDescriptions	(	const plView &	view,
		const plArrayPtr< plGALTextureCreationDescription *const >	inputs,
		plArrayPtr< plGALTextureCreationDescription >	outputs )

pure virtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implemented in plAntialiasingPass, plAOPass, plBloomPass, plBlurPass, plCopyTexturePass, plDepthOnlyPass, plDOFPass, plForwardRenderPass, plHistorySourcePass, plHistoryTargetPass, plLSAOPass, plMsaaResolvePass, plMsaaUpscalePass, plOpaqueForwardRenderPass, plPickingRenderPass, plReflectionFilterPass, plSelectionHighlightPass, plSeparatedBilateralBlurPass, plSimpleRenderPass, plSourcePass, plSSRAdvancedPass, plSSRPass, plStereoTestPass, plTargetPass, and plTonemapPass.

◆ InitRenderPipelinePass()

void plRenderPipelinePass::InitRenderPipelinePass	(	const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

virtual

After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

Reimplemented in plLSAOPass, and plPickingRenderPass.

◆ QueryTextureProvider()

virtual plGALTextureHandle plRenderPipelinePass::QueryTextureProvider	(	const plRenderPipelineNodePin *	pPin,
		const plGALTextureCreationDescription &	desc )

inlinevirtual

Returns the current texture this node provides at the given *ProviderPin. This function is called every frame if this node holds a plRenderPipelineNodeInputProviderPin or plRenderPipelineNodeOutputProviderPin pin. The node can return a valid texture handle, or an invalid handle, in which case the missing texture will be created from the texture pool.

Parameters

pPin	The member pin for which the texture is requested.
desc	The format of the texture that should be provided.

Returns: The texture to use for this pin's connections. Or invalid, in which case it reverts to a regular input / output pin.

Reimplemented in plHistorySourcePass, plHistoryTargetPass, and plTargetPass.

◆ ReadBackProperties()

void plRenderPipelinePass::ReadBackProperties ( plView * pView )

virtual

Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

Reimplemented in plPickingRenderPass.

The documentation for this class was generated from the following files:

Code/Engine/RendererCore/Pipeline/RenderPipelinePass.h
Code/Engine/RendererCore/Pipeline/Implementation/RenderPipelinePass.cpp
