A standard forward render pass that renders into the color target. More...

#include <ForwardRenderPass.h>

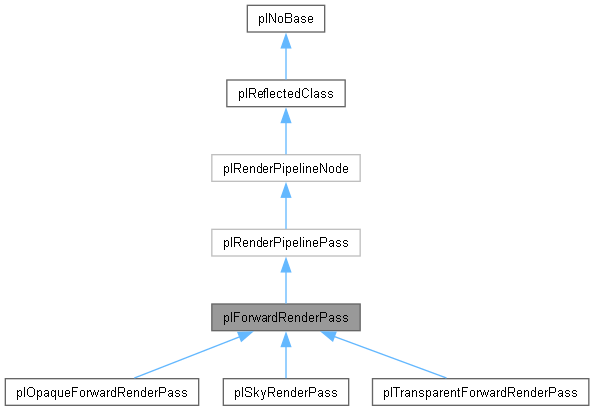

Inheritance diagram for plForwardRenderPass:

[legend]

Public Member Functions
	plForwardRenderPass (const char *szName="ForwardRenderPass")

virtual bool	GetRenderTargetDescriptions (const plView &view, const plArrayPtr< plGALTextureCreationDescription *const > inputs, plArrayPtr< plGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void	Execute (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual plResult	Serialize (plStreamWriter &inout_stream) const override

virtual plResult	Deserialize (plStreamReader &inout_stream) override

Public Member Functions inherited from plRenderPipelinePass
	plRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual plGALTextureHandle	QueryTextureProvider (const plRenderPipelineNodePin *pPin, const plGALTextureCreationDescription &desc)

virtual void	InitRenderPipelinePass (const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	ExecuteInactive (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)

virtual void	ReadBackProperties (plView *pView)
	Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

void	RenderDataWithCategory (const plRenderViewContext &renderViewContext, plRenderData::Category category, plRenderDataBatch::Filter filter=plRenderDataBatch::Filter())

PL_ALWAYS_INLINE plRenderPipeline *	GetPipeline ()

PL_ALWAYS_INLINE const plRenderPipeline *	GetPipeline () const

Public Member Functions inherited from plRenderPipelineNode
void	InitializePins ()

plHashedString	GetPinName (const plRenderPipelineNodePin *pPin) const

const plRenderPipelineNodePin *	GetPinByName (const char *szName) const

const plRenderPipelineNodePin *	GetPinByName (plHashedString sName) const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetInputPins () const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
virtual void	SetupResources (plGALCommandEncoder pCommandEncoder, const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection *const > outputs)

virtual void	SetupPermutationVars (const plRenderViewContext &renderViewContext)

virtual void	SetupLighting (const plRenderViewContext &renderViewContext)

virtual void	RenderObjects (const plRenderViewContext &renderViewContext)=0

Protected Attributes
plRenderPipelineNodePassThroughPin	m_PinColor

plRenderPipelineNodePassThroughPin	m_PinSSR

plRenderPipelineNodePassThroughPin	m_PinVelocity

plRenderPipelineNodePassThroughPin	m_PinMaterial

plRenderPipelineNodePassThroughPin	m_PinDepthStencil

plEnum< plForwardRenderShadingQuality >	m_ShadingQuality

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

A standard forward render pass that renders into the color target.

Member Function Documentation

◆ Deserialize()

plResult plForwardRenderPass::Deserialize ( plStreamReader & inout_stream )

overridevirtual

Reimplemented from plRenderPipelinePass.

◆ Execute()

void plForwardRenderPass::Execute	(	const plRenderViewContext &	renderViewContext,
		const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements plRenderPipelinePass.

Reimplemented in plTransparentForwardRenderPass.

◆ GetRenderTargetDescriptions()

bool plForwardRenderPass::GetRenderTargetDescriptions	(	const plView &	view,
		const plArrayPtr< plGALTextureCreationDescription *const >	inputs,
		plArrayPtr< plGALTextureCreationDescription >	outputs )
