Allows to access data from a previous frame. Always comes in a pair with a plHistoryTargetPass. To preserve textures across the next frame you need to create this node to define the type of texture and initial state. This node's output pin will give access to the previous frame's content. Next, create an plHistoryTargetPass. It's input pin exposes the same texture as provided by the source node but allows you to write to by connecting the input pin to another pass that produces the image that you want to carry to the next frame. To connect an plHistoryTargetPass to its counterpart you need to set it's "SourcePassName" property to the name of the plHistorySourcePass you want to match. As both nodes expose the same texture, special care has to be taken that it's not used as input and output of another pass at the same time. In those cases, add a plCopyTexturePass to break up invalid state. More...

#include <HistorySourcePass.h>

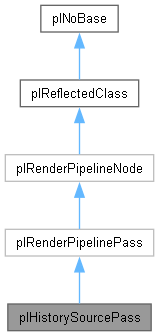

Inheritance diagram for plHistorySourcePass:

[legend]

Public Member Functions
	plHistorySourcePass (const char *szName="HistorySourcePass")

virtual bool	GetRenderTargetDescriptions (const plView &view, const plArrayPtr< plGALTextureCreationDescription *const > inputs, plArrayPtr< plGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual plGALTextureHandle	QueryTextureProvider (const plRenderPipelineNodePin *pPin, const plGALTextureCreationDescription &desc) override

virtual void	Execute (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual plResult	Serialize (plStreamWriter &inout_stream) const override

virtual plResult	Deserialize (plStreamReader &inout_stream) override

Public Member Functions inherited from plRenderPipelinePass
	plRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual void	InitRenderPipelinePass (const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	ExecuteInactive (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)

virtual void	ReadBackProperties (plView *pView)
	Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

void	RenderDataWithCategory (const plRenderViewContext &renderViewContext, plRenderData::Category category, plRenderDataBatch::Filter filter=plRenderDataBatch::Filter())

PL_ALWAYS_INLINE plRenderPipeline *	GetPipeline ()

PL_ALWAYS_INLINE const plRenderPipeline *	GetPipeline () const

Public Member Functions inherited from plRenderPipelineNode
void	InitializePins ()

plHashedString	GetPinName (const plRenderPipelineNodePin *pPin) const

const plRenderPipelineNodePin *	GetPinByName (const char *szName) const

const plRenderPipelineNodePin *	GetPinByName (plHashedString sName) const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetInputPins () const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Attributes
plRenderPipelineNodeOutputProviderPin	m_PinOutput

plEnum< plSourceFormat >	m_Format = plSourceFormat::Default

plEnum< plGALMSAASampleCount >	m_MsaaMode = plGALMSAASampleCount::None

plColor	m_ClearColor = plColor::Black

bool	m_bUseAsUAV = false

bool	m_bFirstExecute = true

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

Allows to access data from a previous frame. Always comes in a pair with a plHistoryTargetPass. To preserve textures across the next frame you need to create this node to define the type of texture and initial state. This node's output pin will give access to the previous frame's content. Next, create an plHistoryTargetPass. It's input pin exposes the same texture as provided by the source node but allows you to write to by connecting the input pin to another pass that produces the image that you want to carry to the next frame. To connect an plHistoryTargetPass to its counterpart you need to set it's "SourcePassName" property to the name of the plHistorySourcePass you want to match. As both nodes expose the same texture, special care has to be taken that it's not used as input and output of another pass at the same time. In those cases, add a plCopyTexturePass to break up invalid state.

Member Function Documentation

◆ Deserialize()

plResult plHistorySourcePass::Deserialize ( plStreamReader & inout_stream )

overridevirtual

Reimplemented from plRenderPipelinePass.

◆ Execute()

void plHistorySourcePass::Execute	(	const plRenderViewContext &	renderViewContext,
		const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements plRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool plHistorySourcePass::GetRenderTargetDescriptions	(	const plView &	view,
		const plArrayPtr< plGALTextureCreationDescription *const >	inputs,
		plArrayPtr< plGALTextureCreationDescription >	outputs )

overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements plRenderPipelinePass.

◆ QueryTextureProvider()

plGALTextureHandle plHistorySourcePass::QueryTextureProvider	(	const plRenderPipelineNodePin *	pPin,
		const plGALTextureCreationDescription &	desc )

overridevirtual

Returns the current texture this node provides at the given *ProviderPin. This function is called every frame if this node holds a plRenderPipelineNodeInputProviderPin or plRenderPipelineNodeOutputProviderPin pin. The node can return a valid texture handle, or an invalid handle, in which case the missing texture will be created from the texture pool.

Parameters

pPin	The member pin for which the texture is requested.
desc	The format of the texture that should be provided.

Returns: The texture to use for this pin's connections. Or invalid, in which case it reverts to a regular input / output pin.

Reimplemented from plRenderPipelinePass.

◆ Serialize()

plResult plHistorySourcePass::Serialize ( plStreamWriter & inout_stream ) const

overridevirtual

Reimplemented from plRenderPipelinePass.

The documentation for this class was generated from the following files:

Code/Engine/RendererCore/Pipeline/Passes/HistorySourcePass.h
Code/Engine/RendererCore/Pipeline/Implementation/Passes/HistorySourcePass.cpp
