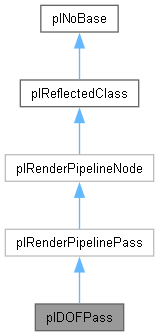

Inheritance diagram for plDOFPass:

[legend]

Public Member Functions
bool	GetRenderTargetDescriptions (const plView &view, const plArrayPtr< plGALTextureCreationDescription *const > inputs, plArrayPtr< plGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

void	Execute (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

void	ExecuteInactive (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs) override

Public Member Functions inherited from plRenderPipelinePass
	plRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual plGALTextureHandle	QueryTextureProvider (const plRenderPipelineNodePin *pPin, const plGALTextureCreationDescription &desc)

virtual void	InitRenderPipelinePass (const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	ReadBackProperties (plView *pView)
	Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

virtual plResult	Serialize (plStreamWriter &inout_stream) const

virtual plResult	Deserialize (plStreamReader &inout_stream)

void	RenderDataWithCategory (const plRenderViewContext &renderViewContext, plRenderData::Category category, plRenderDataBatch::Filter filter=plRenderDataBatch::Filter())

PL_ALWAYS_INLINE plRenderPipeline *	GetPipeline ()

PL_ALWAYS_INLINE const plRenderPipeline *	GetPipeline () const

Public Member Functions inherited from plRenderPipelineNode
void	InitializePins ()

plHashedString	GetPinName (const plRenderPipelineNodePin *pPin) const

const plRenderPipelineNodePin *	GetPinByName (const char *szName) const

const plRenderPipelineNodePin *	GetPinByName (plHashedString sName) const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetInputPins () const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
void	UpdateConstantBuffer ()

Protected Attributes
plRenderPipelineNodeInputPin	m_pInput

plRenderPipelineNodeInputPin	m_pDepth

plRenderPipelineNodeOutputPin	m_pOutput

plShaderResourceHandle	m_hShader

plConstantBufferStorageHandle	m_hConstantBuffer

plGALTextureHandle	m_hBokehTexture1

plGALTextureHandle	m_hBokehTexture2

float	m_fRadius

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Member Function Documentation

◆ Execute()

void plDOFPass::Execute	(	const plRenderViewContext &	renderViewContext,
		const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements plRenderPipelinePass.

◆ ExecuteInactive()

void plDOFPass::ExecuteInactive	(	const plRenderViewContext &	renderViewContext,
		const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

overridevirtual

Reimplemented from plRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool plDOFPass::GetRenderTargetDescriptions	(	const plView &	view,
		const plArrayPtr< plGALTextureCreationDescription *const >	inputs,
		plArrayPtr< plGALTextureCreationDescription >	outputs )

overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements plRenderPipelinePass.

The documentation for this class was generated from the following files:

Code/Engine/RendererCore/Pipeline/Passes/DOFPass.h
Code/Engine/RendererCore/Pipeline/Implementation/Passes/DOFPass.cpp
