#include <LSAOPass.h>

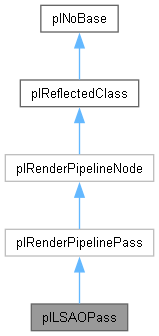

Inheritance diagram for plLSAOPass:

[legend]

Public Member Functions
virtual bool	GetRenderTargetDescriptions (const plView &view, const plArrayPtr< plGALTextureCreationDescription *const > inputs, plArrayPtr< plGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void	InitRenderPipelinePass (const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs) override
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	Execute (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual void	ExecuteInactive (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs) override

virtual plResult	Serialize (plStreamWriter &inout_stream) const override

virtual plResult	Deserialize (plStreamReader &inout_stream) override

plUInt32	GetLineToLinePixelOffset () const

void	SetLineToLinePixelOffset (plUInt32 uiPixelOffset)

plUInt32	GetLineSamplePixelOffset () const

void	SetLineSamplePixelOffset (plUInt32 uiPixelOffset)

float	GetDepthCutoffDistance () const

void	SetDepthCutoffDistance (float fDepthCutoffDistance)

float	GetOcclusionFalloff () const

void	SetOcclusionFalloff (float fFalloff)

Public Member Functions inherited from plRenderPipelinePass
	plRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual plGALTextureHandle	QueryTextureProvider (const plRenderPipelineNodePin *pPin, const plGALTextureCreationDescription &desc)

virtual void	ReadBackProperties (plView *pView)
	Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

void	RenderDataWithCategory (const plRenderViewContext &renderViewContext, plRenderData::Category category, plRenderDataBatch::Filter filter=plRenderDataBatch::Filter())

PL_ALWAYS_INLINE plRenderPipeline *	GetPipeline ()

PL_ALWAYS_INLINE const plRenderPipeline *	GetPipeline () const

Public Member Functions inherited from plRenderPipelineNode
void	InitializePins ()

plHashedString	GetPinName (const plRenderPipelineNodePin *pPin) const

const plRenderPipelineNodePin *	GetPinByName (const char *szName) const

const plRenderPipelineNodePin *	GetPinByName (plHashedString sName) const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetInputPins () const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
void	DestroyLineSweepData ()
	Destroys all GPU data that might have been created in in SetupLineSweepData.

void	SetupLineSweepData (const plVec3I32 &imageResolution)

void	AddLinesForDirection (const plVec3I32 &imageResolution, const plVec2I32 &sampleDir, plUInt32 lineIndex, plDynamicArray< LineInstruction > &outinLineInstructions, plUInt32 &outinTotalNumberOfSamples)

Protected Attributes
plRenderPipelineNodeInputPin	m_PinDepthInput

plRenderPipelineNodeOutputPin	m_PinOutput

plConstantBufferStorageHandle	m_hLineSweepCB

bool	m_bSweepDataDirty = true

bool	m_bConstantsDirty = true

plGALBufferHandle	m_hLineSweepOutputBuffer
	Output of the line sweep pass.

plGALBufferUnorderedAccessViewHandle	m_hLineSweepOutputUAV

plGALBufferResourceViewHandle	m_hLineSweepOutputSRV

plGALBufferHandle	m_hLineInfoBuffer
	Structured buffer containing instructions for every single line to trace.

plGALBufferResourceViewHandle	m_hLineSweepInfoSRV

plUInt32	m_uiNumSweepLines = 0
	Total number of lines to be traced.

plInt32	m_iLineToLinePixelOffset = 2

plInt32	m_iLineSamplePixelOffsetFactor = 1

float	m_fOcclusionFalloff = 0.2f

float	m_fDepthCutoffDistance = 4.0f

plEnum< plLSAODepthCompareFunction >	m_DepthCompareFunction

bool	m_bDistributedGathering = true

plShaderResourceHandle	m_hShaderLineSweep

plShaderResourceHandle	m_hShaderGather

plShaderResourceHandle	m_hShaderAverage

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

Screen space ambient occlusion using "line sweep ambient occlusion" by Ville Timonen

Resources: Use in Quantum Break: http://wili.cc/research/quantum_break/SIGGRAPH_2015_Remedy_Notes.pdf Presentation slides EGSR: http://wili.cc/research/lsao/EGSR13_LSAO.pdf Paper: http://wili.cc/research/lsao/lsao.pdf

There are a few adjustments and own ideas worked into this implementation. The biggest change probably is that pixels in the gather pass compute their target linesample arithmetically instead of relying on lookups.

Member Function Documentation

◆ Deserialize()

plResult plLSAOPass::Deserialize ( plStreamReader & inout_stream )

overridevirtual

Reimplemented from plRenderPipelinePass.

◆ Execute()

void plLSAOPass::Execute	(	const plRenderViewContext &	renderViewContext,
		const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements plRenderPipelinePass.

◆ ExecuteInactive()

void plLSAOPass::ExecuteInactive	(	const plRenderViewContext &	renderViewContext,
		const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

overridevirtual

Reimplemented from plRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool plLSAOPass::GetRenderTargetDescriptions	(	const plView &	view,
		const plArrayPtr< plGALTextureCreationDescription *const >	inputs,
		plArrayPtr< plGALTextureCreationDescription >	outputs )

overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements plRenderPipelinePass.

◆ InitRenderPipelinePass()

void plLSAOPass::InitRenderPipelinePass	(	const plArrayPtr< plRenderPipelinePassConnection *const >	inputs,
		const plArrayPtr< plRenderPipelinePassConnection *const >	outputs )

overridevirtual

After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

Reimplemented from plRenderPipelinePass.

◆ Serialize()

plResult plLSAOPass::Serialize ( plStreamWriter & inout_stream ) const

overridevirtual

Reimplemented from plRenderPipelinePass.

The documentation for this class was generated from the following files:

Code/Engine/RendererCore/Pipeline/Passes/LSAOPass.h
Code/Engine/RendererCore/Pipeline/Implementation/Passes/LSAOPass.cpp
