Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
plBloomPass Class Reference

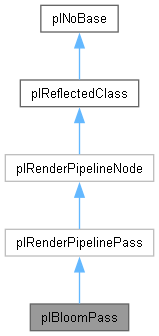

Inheritance diagram for plBloomPass:
Inheritance graph
[legend]

Public Member Functions

virtual bool GetRenderTargetDescriptions (const plView &view, const plArrayPtr< plGALTextureCreationDescription *const > inputs, plArrayPtr< plGALTextureCreationDescription > outputs) override
 For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void Execute (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection *const > inputs, const plArrayPtr< plRenderPipelinePassConnection *const > outputs) override
 Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual void ExecuteInactive (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection *const > inputs, const plArrayPtr< plRenderPipelinePassConnection *const > outputs) override

virtual plResult Serialize (plStreamWriter &inout_stream) const override

virtual plResult Deserialize (plStreamReader &inout_stream) override

- Public Member Functions inherited from plRenderPipelinePass
 plRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void SetName (const char *szName)
 Sets the name of the pass.

const char * GetName () const
 returns the name of the pass.

bool IsStereoAware () const
 True if the render pipeline pass can handle stereo cameras correctly.

virtual plGALTextureHandle QueryTextureProvider (const plRenderPipelineNodePin *pPin, const plGALTextureCreationDescription &desc)

virtual void InitRenderPipelinePass (const plArrayPtr< plRenderPipelinePassConnection *const > inputs, const plArrayPtr< plRenderPipelinePassConnection *const > outputs)
 After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void ReadBackProperties (plView *pView)
 Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

void RenderDataWithCategory (const plRenderViewContext &renderViewContext, plRenderData::Category category, plRenderDataBatch::Filter filter=plRenderDataBatch::Filter())

PL_ALWAYS_INLINE plRenderPipeline * GetPipeline ()

PL_ALWAYS_INLINE const plRenderPipeline * GetPipeline () const

- Public Member Functions inherited from plRenderPipelineNode
void InitializePins ()

plHashedString GetPinName (const plRenderPipelineNodePin *pPin) const

const plRenderPipelineNodePin * GetPinByName (const char *szName) const

const plRenderPipelineNodePin * GetPinByName (plHashedString sName) const

const plArrayPtr< const plRenderPipelineNodePin *const > GetInputPins () const

const plArrayPtr< const plRenderPipelineNodePin *const > GetOutputPins () const

- Public Member Functions inherited from plReflectedClass
virtual const plRTTI * GetDynamicRTTI () const

bool IsInstanceOf (const plRTTI *pType) const
 Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool IsInstanceOf () const
 Returns whether the type of this instance is of the given type or derived from it.


Protected Member Functions

void UpdateConstantBuffer (plVec2 pixelSize, const plColor &tintColor)


Protected Attributes

plRenderPipelineNodeInputPin m_PinInput

plRenderPipelineNodeOutputPin m_PinOutput

float m_fRadius = 0.2f

float m_fThreshold = 1.0f

float m_fIntensity = 0.3f

plColorGammaUB m_InnerTintColor = plColor::White

plColorGammaUB m_MidTintColor = plColor::White

plColorGammaUB m_OuterTintColor = plColor::White

plConstantBufferStorageHandle m_hConstantBuffer

plShaderResourceHandle m_hShader


Additional Inherited Members

- Static Public Member Functions inherited from plNoBase
static const plRTTI * GetStaticRTTI ()


Member Function Documentation

◆ Deserialize()

plResult plBloomPass::Deserialize ( plStreamReader & inout_stream)
overridevirtual

Reimplemented from plRenderPipelinePass.

◆ Execute()

void plBloomPass::Execute ( const plRenderViewContext & renderViewContext,
const plArrayPtr< plRenderPipelinePassConnection *const > inputs,
const plArrayPtr< plRenderPipelinePassConnection *const > outputs )
overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements plRenderPipelinePass.

◆ ExecuteInactive()

void plBloomPass::ExecuteInactive ( const plRenderViewContext & renderViewContext,
const plArrayPtr< plRenderPipelinePassConnection *const > inputs,
const plArrayPtr< plRenderPipelinePassConnection *const > outputs )
overridevirtual

Reimplemented from plRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool plBloomPass::GetRenderTargetDescriptions ( const plView & view,
const plArrayPtr< plGALTextureCreationDescription *const > inputs,
plArrayPtr< plGALTextureCreationDescription > outputs )
overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements plRenderPipelinePass.

◆ Serialize()

plResult plBloomPass::Serialize ( plStreamWriter & inout_stream) const
overridevirtual

Reimplemented from plRenderPipelinePass.

The documentation for this class was generated from the following files:
