plSeparatedBilateralBlurPass Class Reference

Depth aware blur on input and writes it to an output buffer of the same format. More...

#include <SeparatedBilateralBlur.h>

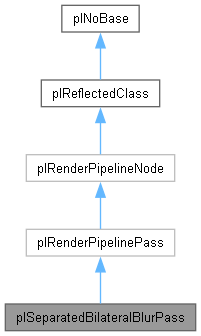

Inheritance diagram for plSeparatedBilateralBlurPass:
Inheritance graph
[legend]

Public Member Functions

virtual bool GetRenderTargetDescriptions (const plView &view, const plArrayPtr< plGALTextureCreationDescription *const > inputs, plArrayPtr< plGALTextureCreationDescription > outputs) override
 For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void Execute (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection *const > inputs, const plArrayPtr< plRenderPipelinePassConnection *const > outputs) override
 Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual plResult Serialize (plStreamWriter &inout_stream) const override

virtual plResult Deserialize (plStreamReader &inout_stream) override

void SetRadius (plUInt32 uiRadius)

plUInt32 GetRadius () const

void SetGaussianSigma (float fSigma)

float GetGaussianSigma () const

void SetSharpness (float fSharpness)

float GetSharpness () const

- Public Member Functions inherited from plRenderPipelinePass
 plRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void SetName (const char *szName)
 Sets the name of the pass.

const char * GetName () const
 returns the name of the pass.

bool IsStereoAware () const
 True if the render pipeline pass can handle stereo cameras correctly.

virtual plGALTextureHandle QueryTextureProvider (const plRenderPipelineNodePin *pPin, const plGALTextureCreationDescription &desc)

virtual void InitRenderPipelinePass (const plArrayPtr< plRenderPipelinePassConnection *const > inputs, const plArrayPtr< plRenderPipelinePassConnection *const > outputs)
 After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void ExecuteInactive (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection *const > inputs, const plArrayPtr< plRenderPipelinePassConnection *const > outputs)

virtual void ReadBackProperties (plView *pView)
 Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

void RenderDataWithCategory (const plRenderViewContext &renderViewContext, plRenderData::Category category, plRenderDataBatch::Filter filter=plRenderDataBatch::Filter())

PL_ALWAYS_INLINE plRenderPipeline * GetPipeline ()

PL_ALWAYS_INLINE const plRenderPipeline * GetPipeline () const

- Public Member Functions inherited from plRenderPipelineNode
void InitializePins ()

plHashedString GetPinName (const plRenderPipelineNodePin *pPin) const

const plRenderPipelineNodePin * GetPinByName (const char *szName) const

const plRenderPipelineNodePin * GetPinByName (plHashedString sName) const

const plArrayPtr< const plRenderPipelineNodePin *const > GetInputPins () const

const plArrayPtr< const plRenderPipelineNodePin *const > GetOutputPins () const

- Public Member Functions inherited from plReflectedClass
virtual const plRTTI * GetDynamicRTTI () const

bool IsInstanceOf (const plRTTI *pType) const
 Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool IsInstanceOf () const
 Returns whether the type of this instance is of the given type or derived from it.


Protected Attributes

plRenderPipelineNodeInputPin m_PinBlurSourceInput

plRenderPipelineNodeInputPin m_PinDepthInput

plRenderPipelineNodeOutputPin m_PinOutput

plUInt32 m_uiRadius = 7

float m_fGaussianSigma = 3.5f

float m_fSharpness = 120.0f

plConstantBufferStorageHandle m_hBilateralBlurCB

plShaderResourceHandle m_hShader


Additional Inherited Members

- Static Public Member Functions inherited from plNoBase
static const plRTTI * GetStaticRTTI ()


Detailed Description

Depth aware blur on input and writes it to an output buffer of the same format.

In theory it is mathematical nonsense to separate a bilateral blur, but it is common praxis and works good enough. (Thus the name "separated" in contrast to "separable")

Member Function Documentation

◆ Deserialize()

plResult plSeparatedBilateralBlurPass::Deserialize ( plStreamReader & inout_stream)
overridevirtual

Reimplemented from plRenderPipelinePass.

◆ Execute()

void plSeparatedBilateralBlurPass::Execute ( const plRenderViewContext & renderViewContext,
const plArrayPtr< plRenderPipelinePassConnection *const > inputs,
const plArrayPtr< plRenderPipelinePassConnection *const > outputs )
overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements plRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool plSeparatedBilateralBlurPass::GetRenderTargetDescriptions ( const plView & view,
const plArrayPtr< plGALTextureCreationDescription *const > inputs,
plArrayPtr< plGALTextureCreationDescription > outputs )
overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements plRenderPipelinePass.

◆ Serialize()

plResult plSeparatedBilateralBlurPass::Serialize ( plStreamWriter & inout_stream) const
overridevirtual

Reimplemented from plRenderPipelinePass.

The documentation for this class was generated from the following files:
