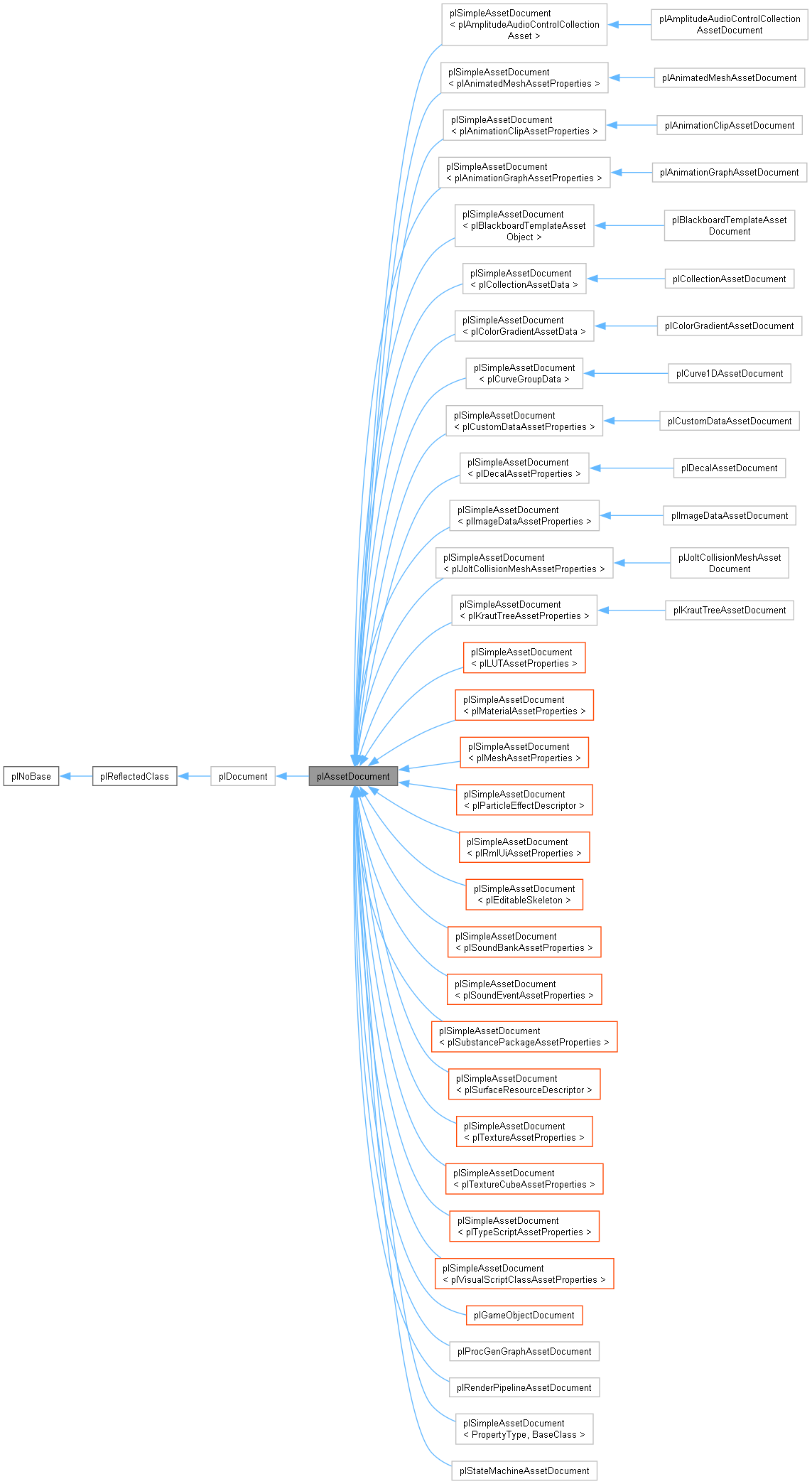

Inheritance diagram for plAssetDocument:

[legend]

Classes
class	ThumbnailInfo
	The thumbnail info containing the hash of the file is appended to assets. The serialized size of this class can't change since it is found by seeking to the end of the file. More...

Public Member Functions
	plAssetDocument (plStringView sDocumentPath, plDocumentObjectManager *pObjectManager, plAssetDocEngineConnection engineConnectionType)

Public Member Functions inherited from plDocument
	plDocument (plStringView sPath, plDocumentObjectManager *pDocumentObjectManagerImpl)

bool	IsModified () const

bool	IsReadOnly () const

const plUuid	GetGuid () const

const plDocumentObjectManager *	GetObjectManager () const

plDocumentObjectManager *	GetObjectManager ()

plSelectionManager *	GetSelectionManager () const

plCommandHistory *	GetCommandHistory () const

virtual plObjectAccessorBase *	GetObjectAccessor () const

virtual void	GetSupportedMimeTypesForPasting (plHybridArray< plString, 4 > &out_mimeTypes) const
	Whether this document supports pasting the given mime format into it.

virtual bool	CopySelectedObjects (plAbstractObjectGraph &out_objectGraph, plStringBuilder &out_sMimeType) const
	Creates the abstract graph of data to be copied and returns the mime type for the clipboard to identify the data.

virtual bool	Paste (const plArrayPtr< PasteInfo > &info, const plAbstractObjectGraph &objectGraph, bool bAllowPickedPosition, plStringView sMimeType)

void	BroadcastInterDocumentMessage (plReflectedClass pMessage, plDocument pSender)
	This will deliver the message to all open documents. The documents may respond, e.g. by modifying the content of the message.

virtual void	OnInterDocumentMessage (plReflectedClass pMessage, plDocument pSender)
	Called on all documents when BroadcastInterDocumentMessage() is called.

virtual plEditorInputContext *	GetEditorInputContextOverride ()
	Allows to return a single input context that currently overrides all others (in priority).

virtual void	DeleteSelectedObjects () const

const plSet< plString > &	GetUnknownObjectTypes () const

plUInt32	GetUnknownObjectTypeInstances () const

void	SetAddToResetFilesList (bool b)
	If disabled, this document will not be put into the recent files list.

bool	GetAddToRecentFilesList () const
	Whether this document shall be put into the recent files list.

void	ShowDocumentStatus (const plFormatString &msg) const
	Broadcasts a status message event. The window that displays the document may show this in some form, e.g. in the status bar.

virtual plResult	ComputeObjectTransformation (const plDocumentObject *pObject, plTransform &out_result) const
	Tries to compute the position and rotation for an object in the document. Returns PL_SUCCESS if it was possible.

virtual plManipulatorSearchStrategy	GetManipulatorSearchStrategy () const
	Needed by plManipulatorManager to know where to look for the manipulator attributes.

plStringView	GetDocumentPath () const
	Returns the absolute path to the document.

plStatus	SaveDocument (bool bForce=false)
	Saves the document, if it is modified. If bForce is true, the document will be written, even if it is not considered modified.

plTaskGroupID	SaveDocumentAsync (AfterSaveCallback callback, bool bForce=false)

void	DocumentRenamed (plStringView sNewDocumentPath)

plStatus	LoadDocument ()

void	EnsureVisible ()
	Brings the corresponding window to the front.

plDocumentManager *	GetDocumentManager () const

bool	HasWindowBeenRequested () const

const plDocumentTypeDescriptor *	GetDocumentTypeDescriptor () const

plStringView	GetDocumentTypeName () const
	Returns the document's type name. Same as GetDocumentTypeDescriptor()->m_sDocumentTypeName.

const plDocumentInfo *	GetDocumentInfo () const

virtual bool	CanEngineProcessBeRestarted () const
	Asks the document whether a restart of the engine process is allowed at this time.

bool	IsMainDocument () const
	Returns whether this document is a main document, i.e. self contained.

bool	IsSubDocument () const
	Returns whether this document is a sub-document, i.e. is part of another document.

const plDocument *	GetMainDocument () const
	In case this is a sub-document, returns the main document this belongs to. Otherwise 'this' is returned.

const plDocument *	GetActiveSubDocument () const
	At any given time, only the active sub-document can be edited. This returns the active sub-document which can also be this document itself. Changes to the active sub-document are generally triggered by plDocumentObjectStructureEvent::Type::AfterReset.

plDocument *	GetMainDocument ()

plDocument *	GetActiveSubDocument ()

virtual bool	ArePrefabsAllowed () const
	Whether the document allows to create prefabs in it. This may note be allowed for prefab documents themselves, to prevent nested prefabs.

virtual void	UpdatePrefabs ()
	Updates ALL prefabs in the document with the latest changes. Merges the current prefab templates with the instances in the document.

void	RevertPrefabs (const plDeque< const plDocumentObject * > &selection)
	Resets the given objects to their template prefab state, if they have local modifications.

virtual void	UnlinkPrefabs (const plDeque< const plDocumentObject * > &selection)
	Removes the link between a prefab instance and its template, turning the instance into a regular object.

virtual plStatus	CreatePrefabDocumentFromSelection (plStringView sFile, const plRTTI pRootType, plDelegate< void(plAbstractObjectNode )> adjustGraphNodeCB={}, plDelegate< void(plDocumentObject )> adjustNewNodesCB={}, plDelegate< void(plAbstractObjectGraph &graph, plDynamicArray< plAbstractObjectNode > &graphRootNodes)> finalizeGraphCB={})

virtual plStatus	CreatePrefabDocument (plStringView sFile, plArrayPtr< const plDocumentObject * > rootObjects, const plUuid &invPrefabSeed, plUuid &out_newDocumentGuid, plDelegate< void(plAbstractObjectNode )> adjustGraphNodeCB={}, bool bKeepOpen=false, plDelegate< void(plAbstractObjectGraph &graph, plDynamicArray< plAbstractObjectNode > &graphRootNodes)> finalizeGraphCB={})

virtual plUuid	ReplaceByPrefab (const plDocumentObject *pRootObject, plStringView sPrefabFile, const plUuid &prefabAsset, const plUuid &prefabSeed, bool bEnginePrefab)

virtual plUuid	RevertPrefab (const plDocumentObject *pObject)

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plEvent< const plEditorEngineDocumentMsg * >	m_ProcessMessageEvent

Public Attributes inherited from plDocument
plUniquePtr< plObjectMetaData< plUuid, plDocumentObjectMetaData > >	m_DocumentObjectMetaData

plEvent< const plDocumentEvent & >	m_EventsOne

plEvent< const plObjectAccessorChangeEvent & >	m_ObjectAccessorChangeEvents

Protected Member Functions
void	EngineConnectionEventHandler (const plEditorEngineProcessConnection::Event &e)

void	AddPrefabDependencies (const plDocumentObject pObject, plAssetDocumentInfo pInfo) const
	Adds all prefab dependencies to the plAssetDocumentInfo object. Called automatically by UpdateAssetDocumentInfo()

void	AddReferences (const plDocumentObject pObject, plAssetDocumentInfo pInfo, bool bInsidePrefab) const
	Crawls through all asset properties of pObject and adds all string properties that have a plAssetBrowserAttribute as a dependency to pInfo. Automatically called by UpdateAssetDocumentInfo()

virtual plDocumentInfo *	CreateDocumentInfo () override

plTransformStatus	DoTransformAsset (const plPlatformProfile *pAssetProfile, plBitflags< plTransformFlags > transformFlags)

Hash Functions
plUInt64	GetDocumentHash () const
	Computes the hash from all document objects.

void	GetChildHash (const plDocumentObject *pObject, plUInt64 &inout_uiHash) const
	Computes the hash for one document object and combines it with the given hash.

virtual void	InternalGetMetaDataHash (const plDocumentObject *pObject, plUInt64 &inout_uiHash) const
	Computes the hash for transform relevant meta data of the given document object and combines it with the given hash.

Reimplemented Base Functions
virtual plTaskGroupID	InternalSaveDocument (AfterSaveCallback callback) override
	Overrides the base function to call UpdateAssetDocumentInfo() to update the settings hash.

virtual void	InternalAfterSaveDocument () override
	Implements auto transform on save.

virtual void	InitializeAfterLoading (bool bFirstTimeCreation) override

virtual void	InitializeAfterLoadingAndSaving () override

Thumbnail Functions
virtual plTransformStatus	InternalCreateThumbnail (const ThumbnailInfo &thumbnailInfo)
	Override this function to generate a thumbnail. Only called if GetAssetFlags returns plAssetDocumentFlags::SupportsThumbnail.

plString	GetThumbnailFilePath (plStringView sSubAssetName=plStringView()) const
	Returns the full path to the jpg file in which the thumbnail for this asset is supposed to be.

void	InvalidateAssetThumbnail (plStringView sSubAssetName=plStringView()) const
	Should be called after manually changing the thumbnail, such that the system will reload it.

plStatus	RemoteCreateThumbnail (const ThumbnailInfo &thumbnailInfo, plArrayPtr< plStringView > viewExclusionTags) const
	Requests the engine side to render a thumbnail, will call SaveThumbnail on success.

plStatus	RemoteCreateThumbnail (const ThumbnailInfo &thumbnailInfo) const

plStatus	SaveThumbnail (const plImage &img, const ThumbnailInfo &thumbnailInfo) const
	Saves the given image as the new thumbnail for the asset.

plStatus	SaveThumbnail (const QImage &img, const ThumbnailInfo &thumbnailInfo) const
	Saves the given image as the new thumbnail for the asset.

void	AppendThumbnailInfo (plStringView sThumbnailFile, const ThumbnailInfo &thumbnailInfo) const
	Appends an asset header containing the thumbnail hash to the file. Each thumbnail is appended by it to check up-to-date state.

Protected Member Functions inherited from plDocument
void	SetModified (bool b)

void	SetReadOnly (bool b)

virtual plStatus	InternalLoadDocument ()

virtual void	AttachMetaDataBeforeSaving (plAbstractObjectGraph &graph) const

virtual void	RestoreMetaDataAfterLoading (const plAbstractObjectGraph &graph, bool bUndoable)

virtual void	BeforeClosing ()

void	SetUnknownObjectTypes (const plSet< plString > &Types, plUInt32 uiInstances)

virtual void	UpdatePrefabsRecursive (plDocumentObject *pObject)

virtual void	UpdatePrefabObject (plDocumentObject *pObject, const plUuid &PrefabAsset, const plUuid &PrefabSeed, plStringView sBasePrefab)

Protected Attributes
plUniquePtr< plIPCObjectMirrorEditor >	m_pMirror

EngineStatus	m_EngineStatus

plAssetDocEngineConnection	m_EngineConnectionType = plAssetDocEngineConnection::None

plEditorEngineConnection *	m_pEngineConnection

plHashTable< plUuid, plEditorEngineSyncObject * >	m_AllSyncObjects

plDeque< plEditorEngineSyncObject * >	m_SyncObjects

plHybridArray< plUuid, 32 >	m_DeletedObjects

Protected Attributes inherited from plDocument
plUniquePtr< plDocumentObjectManager >	m_pObjectManager

plUniquePtr< plCommandHistory >	m_pCommandHistory

plUniquePtr< plSelectionManager >	m_pSelectionManager

plUniquePtr< plObjectCommandAccessor >	m_pObjectAccessor
	Default object accessor used by every doc.

plDocumentInfo *	m_pDocumentInfo = nullptr

const plDocumentTypeDescriptor *	m_pTypeDescriptor = nullptr

plDocument *	m_pHostDocument = nullptr

plDocument *	m_pActiveSubDocument = nullptr

IPC Functions
enum class	EngineStatus { Unsupported , Disconnected , Initializing , Loaded }

EngineStatus	GetEngineStatus () const
	Returns the current state of the engine process side of this document.

virtual plVariant	GetCreateEngineMetaData () const
	Passed into plEngineProcessDocumentContext::Initialize on the engine process side. Allows the document to provide additional data to the engine process during context creation.

bool	SendMessageToEngine (plEditorEngineDocumentMsg *pMessage) const
	Sends a message to the corresponding plEngineProcessDocumentContext on the engine process.

virtual void	HandleEngineMessage (const plEditorEngineDocumentMsg *pMsg)
	Handles all messages received from the corresponding plEngineProcessDocumentContext on the engine process.

plEditorEngineConnection *	GetEditorEngineConnection () const
	Returns the plEditorEngineConnection for this document.

void	AddSyncObject (plEditorEngineSyncObject *pSync) const
	Registers a sync object for this document. It will be mirrored to the plEngineProcessDocumentContext on the engine process.

void	RemoveSyncObject (plEditorEngineSyncObject *pSync) const
	Removes a previously registered sync object. It will be removed on the engine process side.

plEditorEngineSyncObject *	FindSyncObject (const plUuid &guid) const
	Returns the sync object registered under the given guid.

plEditorEngineSyncObject *	FindSyncObject (const plRTTI *pType) const
	Returns the first sync object registered with the given type.

void	SyncObjectsToEngine () const
	Sends messages to sync all sync objects to the engine process side.

void	SendDocumentOpenMessage (bool bOpen)

Common Asset States
plEvent< const plCommonAssetUiState & >	m_CommonAssetUiChangeEvent
	Used to broadcast state change events for common asset states.

plUInt32	m_uiCommonAssetStateFlags = 0

virtual void	SetCommonAssetUiState (plCommonAssetUiState::Enum state, double value)
	Override this to handle a change to a common asset state differently.

virtual double	GetCommonAssetUiState (plCommonAssetUiState::Enum state) const
	Override this to return custom values for a common asset state.

Asset Functions
plAssetDocumentManager *	GetAssetDocumentManager () const

const plAssetDocumentInfo *	GetAssetDocumentInfo () const

plBitflags< plAssetDocumentFlags >	GetAssetFlags () const

const plAssetDocumentTypeDescriptor *	GetAssetDocumentTypeDescriptor () const

plTransformStatus	TransformAsset (plBitflags< plTransformFlags > transformFlags, const plPlatformProfile *pAssetProfile=nullptr)
	Transforms an asset. Typically not called manually but by the curator which takes care of dependencies first.

plTransformStatus	CreateThumbnail ()
	Updates the thumbnail of the asset. Should never be called manually. Called only by the curator which takes care of dependencies first.

plUInt16	GetAssetTypeVersion () const
	Returns the RTTI type version of this asset document type. E.g. when the algorithm to transform an asset changes, Increase the RTTI version. This will ensure that assets get re-transformed, even though their settings and dependencies might not have changed.

virtual void	UpdateAssetDocumentInfo (plAssetDocumentInfo *pInfo) const
	Override this to add custom data (e.g. additional file dependencies) to the info struct.

virtual plTransformStatus	InternalTransformAsset (plStreamWriter &stream, plStringView sOutputTag, const plPlatformProfile *pAssetProfile, const plAssetFileHeader &AssetHeader, plBitflags< plTransformFlags > transformFlags)=0
	Override this and write the transformed file for the given szOutputTag into the given stream.

virtual plTransformStatus	InternalTransformAsset (const char szTargetFile, plStringView sOutputTag, const plPlatformProfile pAssetProfile, const plAssetFileHeader &AssetHeader, plBitflags< plTransformFlags > transformFlags)
	Only override this function, if the transformed file for the given szOutputTag must be written from another process.

plStatus	RemoteExport (const plAssetFileHeader &header, const char *szOutputTarget) const

Additional Inherited Members
Public Types inherited from plDocument
using	AfterSaveCallback = plDelegate<void(plDocument*, plStatus)>

Static Public Member Functions inherited from plDocument
static plStatus	ReadDocument (plStringView sDocumentPath, plUniquePtr< plAbstractObjectGraph > &ref_pHeader, plUniquePtr< plAbstractObjectGraph > &ref_pObjects, plUniquePtr< plAbstractObjectGraph > &ref_pTypes)

static plStatus	ReadAndRegisterTypes (const plAbstractObjectGraph &types)

Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Static Public Attributes inherited from plDocument
static plEvent< const plDocumentEvent & >	s_EventsAny

Member Enumeration Documentation

◆ EngineStatus

enum class plAssetDocument::EngineStatus

strong

Enumerator
Unsupported	This document does not have engine IPC.
Disconnected	Engine process crashed or not started yet.
Initializing	Document is being initialized on the engine process side.
Loaded	Any message sent after this state is reached will work on a fully loaded document.

Member Function Documentation

◆ CreateDocumentInfo()

plDocumentInfo * plAssetDocument::CreateDocumentInfo ( )

overrideprotectedvirtual

Implements plDocument.

◆ GetCommonAssetUiState()

double plAssetDocument::GetCommonAssetUiState ( plCommonAssetUiState::Enum state ) const

virtual

Override this to return custom values for a common asset state.

Reimplemented in plAnimationClipAssetDocument.

◆ GetCreateEngineMetaData()

virtual plVariant plAssetDocument::GetCreateEngineMetaData ( ) const

inlinevirtual

Passed into plEngineProcessDocumentContext::Initialize on the engine process side. Allows the document to provide additional data to the engine process during context creation.

Reimplemented in plLayerDocument.

◆ HandleEngineMessage()

void plAssetDocument::HandleEngineMessage ( const plEditorEngineDocumentMsg * pMsg )

virtual

Handles all messages received from the corresponding plEngineProcessDocumentContext on the engine process.

Reimplemented in plGameObjectDocument, plScene2Document, and plSceneDocument.

◆ InitializeAfterLoading()

void plAssetDocument::InitializeAfterLoading ( bool bFirstTimeCreation )

overrideprotectedvirtual

Reimplemented from plDocument.

◆ InitializeAfterLoadingAndSaving()

void plAssetDocument::InitializeAfterLoadingAndSaving ( )

overrideprotectedvirtual

Reimplemented from plDocument.

◆ InternalAfterSaveDocument()

void plAssetDocument::InternalAfterSaveDocument ( )

overrideprotectedvirtual

Implements auto transform on save.

Todo: Should only be done for platform agnostic assets

Reimplemented from plDocument.

◆ InternalCreateThumbnail()

plTransformStatus plAssetDocument::InternalCreateThumbnail ( const ThumbnailInfo & thumbnailInfo )

protectedvirtual

Override this function to generate a thumbnail. Only called if GetAssetFlags returns plAssetDocumentFlags::SupportsThumbnail.

Reimplemented in plAnimatedMeshAssetDocument, plAnimationClipAssetDocument, plColorGradientAssetDocument, plCurve1DAssetDocument, plDecalAssetDocument, plJoltCollisionMeshAssetDocument, plKrautTreeAssetDocument, plMaterialAssetDocument, plMeshAssetDocument, plParticleEffectAssetDocument, plRmlUiAssetDocument, plSceneDocument, and plSkeletonAssetDocument.

◆ InternalGetMetaDataHash()

virtual void plAssetDocument::InternalGetMetaDataHash	(	const plDocumentObject *	pObject,
		plUInt64 &	inout_uiHash ) const

inlineprotectedvirtual

Computes the hash for transform relevant meta data of the given document object and combines it with the given hash.

Reimplemented in plAnimationGraphAssetDocument, plMaterialAssetDocument, plProcGenGraphAssetDocument, plRenderPipelineAssetDocument, plStateMachineAssetDocument, and plVisualScriptClassAssetDocument.

◆ InternalSaveDocument()

plTaskGroupID plAssetDocument::InternalSaveDocument ( AfterSaveCallback callback )

overrideprotectedvirtual

Overrides the base function to call UpdateAssetDocumentInfo() to update the settings hash.

Reimplemented from plDocument.

Reimplemented in plScene2Document.

◆ InternalTransformAsset() [1/2]

plTransformStatus plAssetDocument::InternalTransformAsset	(	const char *	szTargetFile,
		plStringView	sOutputTag,
		const plPlatformProfile *	pAssetProfile,
		const plAssetFileHeader &	AssetHeader,
		plBitflags< plTransformFlags >	transformFlags )

protectedvirtual

Only override this function, if the transformed file for the given szOutputTag must be written from another process.

szTargetFile is where the transformed asset should be written to. The overriding function must ensure to first write AssetHeader to the file, to make it a valid asset file or provide a custom plAssetDocumentManager::IsOutputUpToDate function. See plTransformFlags for definition of transform flags.

Reimplemented in plImageDataAssetDocument, plLUTAssetDocument, plMaterialAssetDocument, plRenderPipelineAssetDocument, plSceneDocument, plStateMachineAssetDocument, plSubstancePackageAssetDocument, plTextureAssetDocument, and plTextureCubeAssetDocument.

◆ InternalTransformAsset() [2/2]

virtual plTransformStatus plAssetDocument::InternalTransformAsset	(	plStreamWriter &	stream,
		plStringView	sOutputTag,
		const plPlatformProfile *	pAssetProfile,
		const plAssetFileHeader &	AssetHeader,
		plBitflags< plTransformFlags >	transformFlags )

protectedpure virtual

Override this and write the transformed file for the given szOutputTag into the given stream.

The stream already contains the plAssetFileHeader. This is the function to prefer when the asset can be written directly from the editor process. AssetHeader is already written to the stream, but provided as reference.

Parameters

stream	Data stream to write the asset to.
szOutputTag	Either empty for the default output or matches one of the tags defined in plAssetDocumentInfo::m_Outputs.
szPlatform	Platform for which is the output is to be created. Default is 'Default'.
AssetHeader	Header already written to the stream, provided for reference.
transformFlags	flags that affect the transform process, see plTransformFlags.

Implemented in plAmplitudeAudioControlCollectionAssetDocument, plAnimatedMeshAssetDocument, plAnimationClipAssetDocument, plAnimationGraphAssetDocument, plBlackboardTemplateAssetDocument, plCollectionAssetDocument, plColorGradientAssetDocument, plCurve1DAssetDocument, plCustomDataAssetDocument, plDecalAssetDocument, plImageDataAssetDocument, plJoltCollisionMeshAssetDocument, plKrautTreeAssetDocument, plLUTAssetDocument, plMaterialAssetDocument, plMeshAssetDocument, plParticleEffectAssetDocument, plProcGenGraphAssetDocument, plPropertyAnimAssetDocument, plRenderPipelineAssetDocument, plRmlUiAssetDocument, plSceneDocument, plSkeletonAssetDocument, plSoundBankAssetDocument, plSoundEventAssetDocument, plStateMachineAssetDocument, plSubstancePackageAssetDocument, plSurfaceAssetDocument, plTextureAssetDocument, plTextureCubeAssetDocument, plTypeScriptAssetDocument, and plVisualScriptClassAssetDocument.

◆ SaveThumbnail()

plStatus plAssetDocument::SaveThumbnail	(	const plImage &	img,
		const ThumbnailInfo &	thumbnailInfo ) const

protected

Saves the given image as the new thumbnail for the asset.

Todo: A conversion to B8G8R8X8_UNORM currently fails

◆ SendDocumentOpenMessage()

void plAssetDocument::SendDocumentOpenMessage ( bool bOpen )

/brief Sends a message that the document has been opened or closed. Resends all document data.

Calling this will always clear the existing document on the engine side and reset the state to the editor state.

◆ SetCommonAssetUiState()

void plAssetDocument::SetCommonAssetUiState	(	plCommonAssetUiState::Enum	state,
		double	value )

virtual

Override this to handle a change to a common asset state differently.

By default an on-off flag for every state is tracked, but nothing else. Also this automatically broadcasts the m_CommonAssetUiChangeEvent event.

Reimplemented in plAnimationClipAssetDocument.

◆ TransformAsset()

plTransformStatus plAssetDocument::TransformAsset	(	plBitflags< plTransformFlags >	transformFlags,
		const plPlatformProfile *	pAssetProfile = nullptr )

Transforms an asset. Typically not called manually but by the curator which takes care of dependencies first.

If plTransformFlags::ForceTransform is set, it will try to transform the asset, ignoring whether the transform is up to date. If plTransformFlags::TriggeredManually is set, transform produced changes will be saved back to the document. If plTransformFlags::BackgroundProcessing is set and transforming the asset would require re-saving it, nothing is done.

◆ UpdateAssetDocumentInfo()

void plAssetDocument::UpdateAssetDocumentInfo ( plAssetDocumentInfo * pInfo ) const

protectedvirtual

Override this to add custom data (e.g. additional file dependencies) to the info struct.

Note: ALWAYS call the base function! It automatically fills out references that it can determine. In most cases that is already sufficient.

Reimplemented in plAmplitudeAudioControlCollectionAssetDocument, plJoltCollisionMeshAssetDocument, plMaterialAssetDocument, plMeshAssetDocument, plParticleEffectAssetDocument, plProcGenGraphAssetDocument, plSceneDocument, plSkeletonAssetDocument, plSoundBankAssetDocument, plSoundEventAssetDocument, plSubstancePackageAssetDocument, plTextureAssetDocument, plTextureCubeAssetDocument, plTypeScriptAssetDocument, and plVisualScriptClassAssetDocument.

The documentation for this class was generated from the following files:

Code/Editor/EditorFramework/Assets/AssetDocument.h
Code/Editor/EditorFramework/Assets/Implementation/AssetDocument.cpp

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

IPC Functions

Common Asset States

Asset Functions

Additional Inherited Members

Member Enumeration Documentation

◆ EngineStatus

Member Function Documentation

◆ CreateDocumentInfo()

◆ GetCommonAssetUiState()

◆ GetCreateEngineMetaData()

◆ HandleEngineMessage()

◆ InitializeAfterLoading()

◆ InitializeAfterLoadingAndSaving()

◆ InternalAfterSaveDocument()

◆ InternalCreateThumbnail()

◆ InternalGetMetaDataHash()

◆ InternalSaveDocument()

◆ InternalTransformAsset() [1/2]

◆ InternalTransformAsset() [2/2]

◆ SaveThumbnail()

◆ SendDocumentOpenMessage()

◆ SetCommonAssetUiState()

◆ TransformAsset()

◆ UpdateAssetDocumentInfo()
