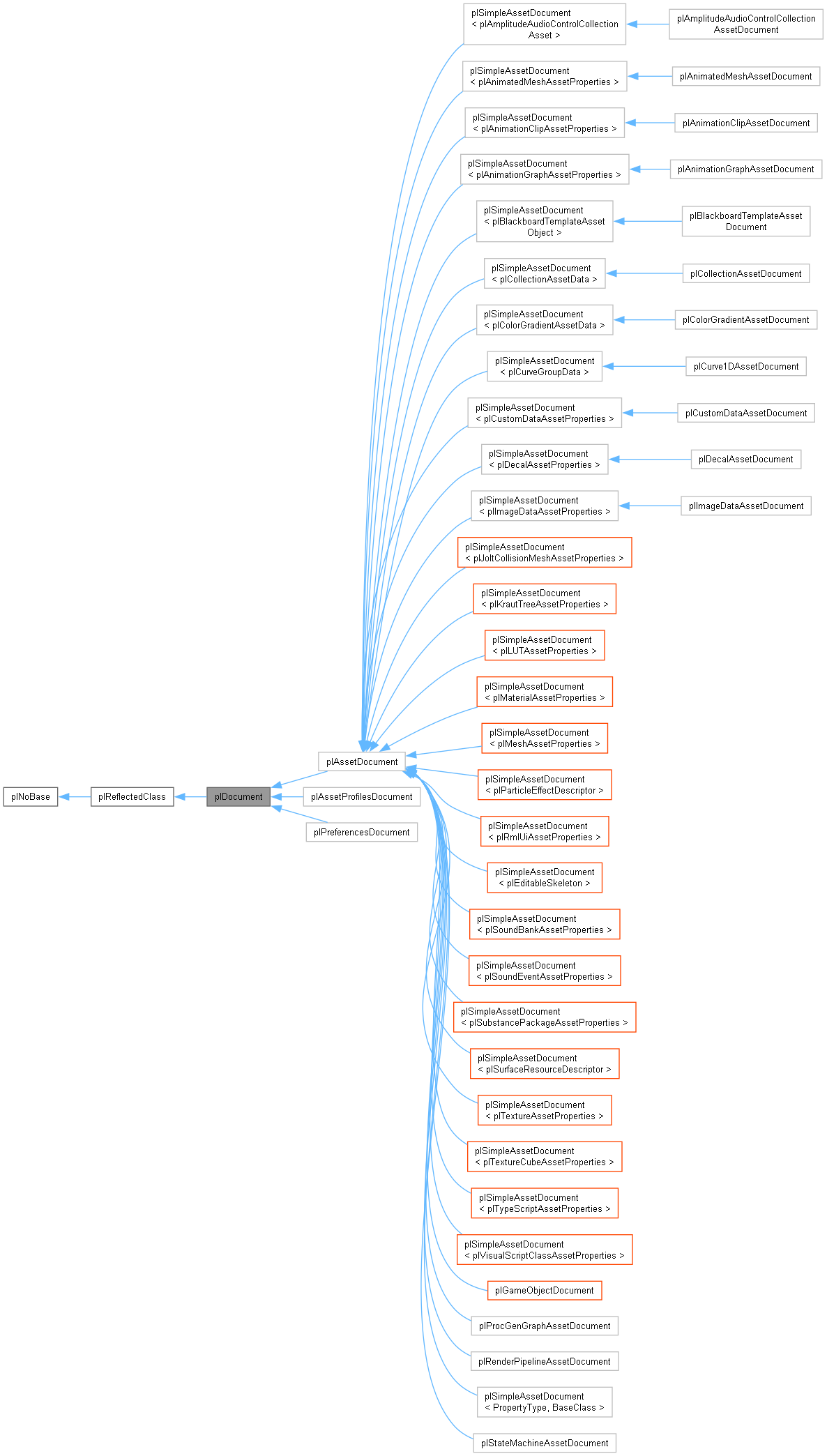

Inheritance diagram for plDocument:

[legend]

Classes
struct	PasteInfo

Public Member Functions
	plDocument (plStringView sPath, plDocumentObjectManager *pDocumentObjectManagerImpl)

Document State Functions
bool	IsModified () const

bool	IsReadOnly () const

const plUuid	GetGuid () const

const plDocumentObjectManager *	GetObjectManager () const

plDocumentObjectManager *	GetObjectManager ()

plSelectionManager *	GetSelectionManager () const

plCommandHistory *	GetCommandHistory () const

virtual plObjectAccessorBase *	GetObjectAccessor () const

Clipboard Functions
virtual void	GetSupportedMimeTypesForPasting (plHybridArray< plString, 4 > &out_mimeTypes) const
	Whether this document supports pasting the given mime format into it.

virtual bool	CopySelectedObjects (plAbstractObjectGraph &out_objectGraph, plStringBuilder &out_sMimeType) const
	Creates the abstract graph of data to be copied and returns the mime type for the clipboard to identify the data.

virtual bool	Paste (const plArrayPtr< PasteInfo > &info, const plAbstractObjectGraph &objectGraph, bool bAllowPickedPosition, plStringView sMimeType)

Inter Document Communication
void	BroadcastInterDocumentMessage (plReflectedClass pMessage, plDocument pSender)
	This will deliver the message to all open documents. The documents may respond, e.g. by modifying the content of the message.

virtual void	OnInterDocumentMessage (plReflectedClass pMessage, plDocument pSender)
	Called on all documents when BroadcastInterDocumentMessage() is called.

Editing Functionality
virtual plEditorInputContext *	GetEditorInputContextOverride ()
	Allows to return a single input context that currently overrides all others (in priority).

Misc Functions
virtual void	DeleteSelectedObjects () const

const plSet< plString > &	GetUnknownObjectTypes () const

plUInt32	GetUnknownObjectTypeInstances () const

void	SetAddToResetFilesList (bool b)
	If disabled, this document will not be put into the recent files list.

bool	GetAddToRecentFilesList () const
	Whether this document shall be put into the recent files list.

void	ShowDocumentStatus (const plFormatString &msg) const
	Broadcasts a status message event. The window that displays the document may show this in some form, e.g. in the status bar.

virtual plResult	ComputeObjectTransformation (const plDocumentObject *pObject, plTransform &out_result) const
	Tries to compute the position and rotation for an object in the document. Returns PL_SUCCESS if it was possible.

virtual plManipulatorSearchStrategy	GetManipulatorSearchStrategy () const
	Needed by plManipulatorManager to know where to look for the manipulator attributes.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plUniquePtr< plObjectMetaData< plUuid, plDocumentObjectMetaData > >	m_DocumentObjectMetaData

plEvent< const plDocumentEvent & >	m_EventsOne

plEvent< const plObjectAccessorChangeEvent & >	m_ObjectAccessorChangeEvents

Static Public Attributes
static plEvent< const plDocumentEvent & >	s_EventsAny

Protected Member Functions
void	SetModified (bool b)

void	SetReadOnly (bool b)

virtual plTaskGroupID	InternalSaveDocument (AfterSaveCallback callback)

virtual plStatus	InternalLoadDocument ()

virtual plDocumentInfo *	CreateDocumentInfo ()=0

virtual void	InternalAfterSaveDocument ()
	A hook to execute additional code after SUCCESSFULLY saving a document. E.g. manual asset transform can be done here.

virtual void	AttachMetaDataBeforeSaving (plAbstractObjectGraph &graph) const

virtual void	RestoreMetaDataAfterLoading (const plAbstractObjectGraph &graph, bool bUndoable)

virtual void	InitializeAfterLoading (bool bFirstTimeCreation)

virtual void	InitializeAfterLoadingAndSaving ()

virtual void	BeforeClosing ()

void	SetUnknownObjectTypes (const plSet< plString > &Types, plUInt32 uiInstances)

Protected Attributes
plUniquePtr< plDocumentObjectManager >	m_pObjectManager

plUniquePtr< plCommandHistory >	m_pCommandHistory

plUniquePtr< plSelectionManager >	m_pSelectionManager

plUniquePtr< plObjectCommandAccessor >	m_pObjectAccessor
	Default object accessor used by every doc.

plDocumentInfo *	m_pDocumentInfo = nullptr

const plDocumentTypeDescriptor *	m_pTypeDescriptor = nullptr

Friends
class	plDocumentManager

class	plCommandHistory

class	plSaveDocumentTask

class	plAfterSaveDocumentTask

Document Management Functions
using	AfterSaveCallback = plDelegate<void(plDocument*, plStatus)>

plStringView	GetDocumentPath () const
	Returns the absolute path to the document.

plStatus	SaveDocument (bool bForce=false)
	Saves the document, if it is modified. If bForce is true, the document will be written, even if it is not considered modified.

plTaskGroupID	SaveDocumentAsync (AfterSaveCallback callback, bool bForce=false)

void	DocumentRenamed (plStringView sNewDocumentPath)

plStatus	LoadDocument ()

void	EnsureVisible ()
	Brings the corresponding window to the front.

plDocumentManager *	GetDocumentManager () const

bool	HasWindowBeenRequested () const

const plDocumentTypeDescriptor *	GetDocumentTypeDescriptor () const

plStringView	GetDocumentTypeName () const
	Returns the document's type name. Same as GetDocumentTypeDescriptor()->m_sDocumentTypeName.

const plDocumentInfo *	GetDocumentInfo () const

virtual bool	CanEngineProcessBeRestarted () const
	Asks the document whether a restart of the engine process is allowed at this time.

static plStatus	ReadDocument (plStringView sDocumentPath, plUniquePtr< plAbstractObjectGraph > &ref_pHeader, plUniquePtr< plAbstractObjectGraph > &ref_pObjects, plUniquePtr< plAbstractObjectGraph > &ref_pTypes)

static plStatus	ReadAndRegisterTypes (const plAbstractObjectGraph &types)

Main / Sub-Document Functions
plDocument *	m_pHostDocument = nullptr

plDocument *	m_pActiveSubDocument = nullptr

bool	IsMainDocument () const
	Returns whether this document is a main document, i.e. self contained.

bool	IsSubDocument () const
	Returns whether this document is a sub-document, i.e. is part of another document.

const plDocument *	GetMainDocument () const
	In case this is a sub-document, returns the main document this belongs to. Otherwise 'this' is returned.

const plDocument *	GetActiveSubDocument () const
	At any given time, only the active sub-document can be edited. This returns the active sub-document which can also be this document itself. Changes to the active sub-document are generally triggered by plDocumentObjectStructureEvent::Type::AfterReset.

plDocument *	GetMainDocument ()

plDocument *	GetActiveSubDocument ()

Prefab Functions
virtual bool	ArePrefabsAllowed () const
	Whether the document allows to create prefabs in it. This may note be allowed for prefab documents themselves, to prevent nested prefabs.

virtual void	UpdatePrefabs ()
	Updates ALL prefabs in the document with the latest changes. Merges the current prefab templates with the instances in the document.

void	RevertPrefabs (const plDeque< const plDocumentObject * > &selection)
	Resets the given objects to their template prefab state, if they have local modifications.

virtual void	UnlinkPrefabs (const plDeque< const plDocumentObject * > &selection)
	Removes the link between a prefab instance and its template, turning the instance into a regular object.

virtual plStatus	CreatePrefabDocumentFromSelection (plStringView sFile, const plRTTI pRootType, plDelegate< void(plAbstractObjectNode )> adjustGraphNodeCB={}, plDelegate< void(plDocumentObject )> adjustNewNodesCB={}, plDelegate< void(plAbstractObjectGraph &graph, plDynamicArray< plAbstractObjectNode > &graphRootNodes)> finalizeGraphCB={})

virtual plStatus	CreatePrefabDocument (plStringView sFile, plArrayPtr< const plDocumentObject * > rootObjects, const plUuid &invPrefabSeed, plUuid &out_newDocumentGuid, plDelegate< void(plAbstractObjectNode )> adjustGraphNodeCB={}, bool bKeepOpen=false, plDelegate< void(plAbstractObjectGraph &graph, plDynamicArray< plAbstractObjectNode > &graphRootNodes)> finalizeGraphCB={})

virtual plUuid	ReplaceByPrefab (const plDocumentObject *pRootObject, plStringView sPrefabFile, const plUuid &prefabAsset, const plUuid &prefabSeed, bool bEnginePrefab)

virtual plUuid	RevertPrefab (const plDocumentObject *pObject)

virtual void	UpdatePrefabsRecursive (plDocumentObject *pObject)

virtual void	UpdatePrefabObject (plDocumentObject *pObject, const plUuid &PrefabAsset, const plUuid &PrefabSeed, plStringView sBasePrefab)

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Member Function Documentation

◆ ArePrefabsAllowed()

virtual bool plDocument::ArePrefabsAllowed ( ) const

inlinevirtual

Whether the document allows to create prefabs in it. This may note be allowed for prefab documents themselves, to prevent nested prefabs.

Reimplemented in plSceneDocument.

◆ CanEngineProcessBeRestarted()

virtual bool plDocument::CanEngineProcessBeRestarted ( ) const

inlinevirtual

Asks the document whether a restart of the engine process is allowed at this time.

Documents that are currently interacting with the engine process (active play-the-game mode) should return false. All others should return true. As long as any document returns false, automatic engine process reload is suppressed.

Reimplemented in plSceneDocument.

◆ ComputeObjectTransformation()

plResult plDocument::ComputeObjectTransformation	(	const plDocumentObject *	pObject,
		plTransform &	out_result ) const

virtual

Tries to compute the position and rotation for an object in the document. Returns PL_SUCCESS if it was possible.

Reimplemented in plGameObjectDocument, and plParticleEffectAssetDocument.

◆ CopySelectedObjects()

virtual bool plDocument::CopySelectedObjects	(	plAbstractObjectGraph &	out_objectGraph,
		plStringBuilder &	out_sMimeType ) const

inlinevirtual

Creates the abstract graph of data to be copied and returns the mime type for the clipboard to identify the data.

Reimplemented in plAnimationGraphAssetDocument, plMaterialAssetDocument, plProcGenGraphAssetDocument, plRenderPipelineAssetDocument, plSceneDocument, plStateMachineAssetDocument, and plVisualScriptClassAssetDocument.

◆ GetEditorInputContextOverride()

virtual plEditorInputContext * plDocument::GetEditorInputContextOverride ( )

inlinevirtual

Allows to return a single input context that currently overrides all others (in priority).

Used to implement custom tools that need to have priority over selection and camera movement.

Reimplemented in plGameObjectDocument.

◆ GetManipulatorSearchStrategy()

virtual plManipulatorSearchStrategy plDocument::GetManipulatorSearchStrategy ( ) const

inlinevirtual

Needed by plManipulatorManager to know where to look for the manipulator attributes.

Override this function for document types that use manipulators. The plManipulatorManager will assert that the document type doesn't return 'None' once it is in use.

Reimplemented in plPropertyAnimAssetDocument, plSceneDocument, and plSkeletonAssetDocument.

◆ GetSupportedMimeTypesForPasting()

virtual void plDocument::GetSupportedMimeTypesForPasting ( plHybridArray< plString, 4 > & out_mimeTypes ) const

inlinevirtual

Whether this document supports pasting the given mime format into it.

Reimplemented in plAnimationGraphAssetDocument, plMaterialAssetDocument, plProcGenGraphAssetDocument, plRenderPipelineAssetDocument, plSceneDocument, plStateMachineAssetDocument, and plVisualScriptClassAssetDocument.

◆ InternalAfterSaveDocument()

virtual void plDocument::InternalAfterSaveDocument ( )

inlineprotectedvirtual

A hook to execute additional code after SUCCESSFULLY saving a document. E.g. manual asset transform can be done here.

Reimplemented in plAssetDocument.

◆ InternalSaveDocument()

plTaskGroupID plDocument::InternalSaveDocument ( AfterSaveCallback callback )

protectedvirtual

Reimplemented in plAssetDocument, and plScene2Document.

◆ OnInterDocumentMessage()

virtual void plDocument::OnInterDocumentMessage	(	plReflectedClass *	pMessage,
		plDocument *	pSender )

inlinevirtual

Called on all documents when BroadcastInterDocumentMessage() is called.

Use the RTTI information to identify whether the message is of interest.

Reimplemented in plSceneDocument.

◆ RevertPrefab()

plUuid plDocument::RevertPrefab ( const plDocumentObject * pObject )

virtual

Reimplemented in plSceneDocument.

◆ UnlinkPrefabs()

void plDocument::UnlinkPrefabs ( const plDeque< const plDocumentObject * > & selection )

virtual

Removes the link between a prefab instance and its template, turning the instance into a regular object.

Reimplemented in plSceneDocument.

◆ UpdatePrefabs()

void plDocument::UpdatePrefabs ( )

virtual

Updates ALL prefabs in the document with the latest changes. Merges the current prefab templates with the instances in the document.

Reimplemented in plSceneDocument.

The documentation for this class was generated from the following files:

Code/Tools/Libs/ToolsFoundation/Document/Document.h
Code/Tools/Libs/ToolsFoundation/Document/Implementation/Document.cpp
Code/Tools/Libs/ToolsFoundation/Document/Implementation/DocumentPrefab.cpp
