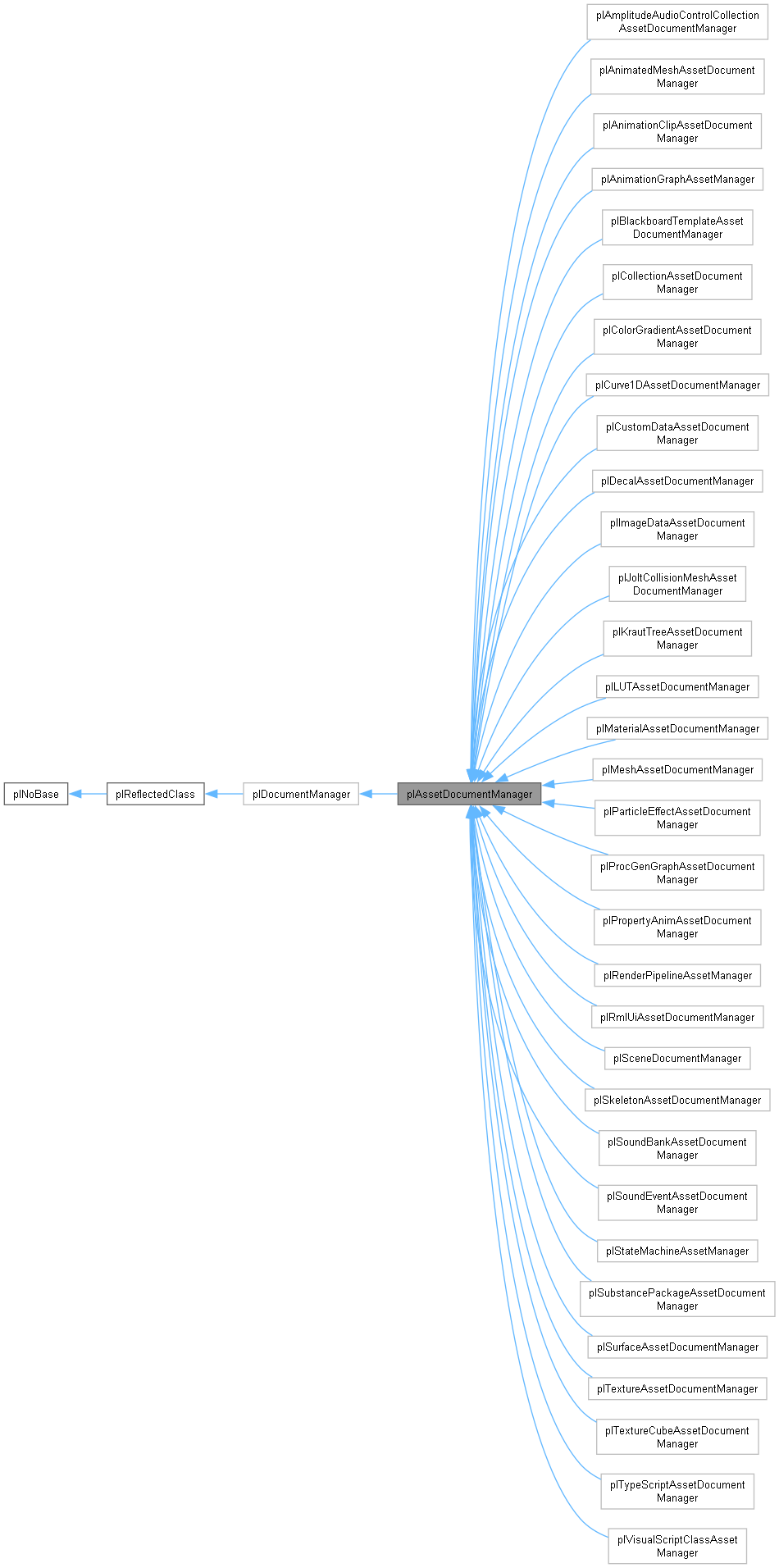

Inheritance diagram for plAssetDocumentManager:

[legend]

Public Member Functions
virtual plStatus	ReadAssetDocumentInfo (plUniquePtr< plAssetDocumentInfo > &out_pInfo, plStreamReader &inout_stream) const
	Opens the asset file and reads the "Header" into the given plAssetDocumentInfo.

virtual void	FillOutSubAssetList (const plAssetDocumentInfo &assetInfo, plDynamicArray< plSubAssetData > &out_subAssets) const

virtual plStatus	GetAdditionalOutputs (plDynamicArray< plString > &ref_files)

virtual plStatus	CloneDocument (plStringView sPath, plStringView sClonePath, plUuid &inout_cloneGuid) override

virtual plResult	OpenPickedDocument (const plDocumentObject *pPickedComponent, plUInt32 uiPartIndex)
	Called by the editor to try to open a document for the matching picking result.

plResult	TryOpenAssetDocument (const char *szPathOrGuid)

virtual void	GetAssetTypesRequiringTransformForSceneExport (plSet< plTempHashedString > &inout_assetTypes)

Thumbnail Functions
virtual plString	GenerateResourceThumbnailPath (plStringView sDocumentPath, plStringView sSubAssetName=plStringView())
	Returns the absolute path to the thumbnail that belongs to the given document.

virtual bool	IsThumbnailUpToDate (plStringView sDocumentPath, plStringView sSubAssetName, plUInt64 uiThumbnailHash, plUInt32 uiTypeVersion)

Public Member Functions inherited from plDocumentManager
plStatus	CanOpenDocument (plStringView sFilePath) const

plStatus	CreateDocument (plStringView sDocumentTypeName, plStringView sPath, plDocument &out_pDocument, plBitflags< plDocumentFlags > flags=plDocumentFlags::None, const plDocumentObject pOpenContext=nullptr)
	Creates a new document.

plStatus	OpenDocument (plStringView sDocumentTypeName, plStringView sPath, plDocument &out_pDocument, plBitflags< plDocumentFlags > flags=plDocumentFlags::AddToRecentFilesList\|plDocumentFlags::RequestWindow, const plDocumentObject pOpenContext=nullptr)
	Opens an existing document.

void	CloseDocument (plDocument *pDocument)

void	EnsureWindowRequested (plDocument pDocument, const plDocumentObject pOpenContext=nullptr)

const plDynamicArray< plDocument * > &	GetAllOpenDocuments () const
	Returns a list of all currently open documents that are managed by this document manager.

plDocument *	GetDocumentByPath (plStringView sPath) const

bool	EnsureDocumentIsClosed (plStringView sPath)
	If the given document is open, it will be closed. User is not asked about it, unsaved changes are discarded. Returns true if the document was open and needed to be closed. This function only operates on documents opened by this manager. Use EnsureDocumentIsClosedInAllManagers() to close documents of any type.

void	CloseAllDocumentsOfManager ()

void	GetSupportedDocumentTypes (plDynamicArray< const plDocumentTypeDescriptor * > &inout_documentTypes) const

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Static Protected Member Functions
static bool	IsResourceUpToDate (const char *szResourceFile, plUInt64 uiHash, plUInt16 uiTypeVersion)

static void	GenerateOutputFilename (plStringBuilder &inout_sRelativeDocumentPath, const plPlatformProfile pAssetProfile, const char szExtension, bool bPlatformSpecific)

Output Functions
enum	OutputReliability : plUInt8 { Unknown = 0 , Good = 1 , Perfect = 2 }

virtual void	AddEntriesToAssetTable (plStringView sDataDirectory, const plPlatformProfile *pAssetProfile, plDelegate< void(plStringView sGuid, plStringView sPath, plStringView sType)> addEntry) const

virtual plString	GetAssetTableEntry (const plSubAsset pSubAsset, plStringView sDataDirectory, const plPlatformProfile pAssetProfile) const

plString	GetAbsoluteOutputFileName (const plAssetDocumentTypeDescriptor pTypeDesc, plStringView sDocumentPath, plStringView sOutputTag, const plPlatformProfile pAssetProfile=nullptr) const
	Calls GetRelativeOutputFileName and prepends [DataDir]/AssetCache/ .

virtual plString	GetRelativeOutputFileName (const plAssetDocumentTypeDescriptor pTypeDesc, plStringView sDataDirectory, plStringView sDocumentPath, plStringView sOutputTag, const plPlatformProfile pAssetProfile=nullptr) const
	Relative to 'AssetCache' folder.

virtual bool	GeneratesProfileSpecificAssets () const =0

bool	IsOutputUpToDate (plStringView sDocumentPath, const plDynamicArray< plString > &outputs, plUInt64 uiHash, const plAssetDocumentTypeDescriptor *pTypeDescriptor)

virtual bool	IsOutputUpToDate (plStringView sDocumentPath, plStringView sOutputTag, plUInt64 uiHash, const plAssetDocumentTypeDescriptor *pTypeDescriptor)

virtual OutputReliability	GetAssetTypeOutputReliability () const

Asset Profile Functions
void	ComputeAssetProfileHash (const plPlatformProfile *pAssetProfile)
	Called by the plAssetCurator when the active asset profile changes to re-compute m_uiAssetProfileHash.

PL_ALWAYS_INLINE plUInt64	GetAssetProfileHash () const
	Returns the hash that was previously computed through ComputeAssetProfileHash().

static const plPlatformProfile *	DetermineFinalTargetProfile (const plPlatformProfile *pAssetProfile)
	Returns pAssetProfile, or if that is null, plAssetCurator::GetSingleton()->GetActiveAssetProfile().

Additional Inherited Members
Public Types inherited from plDocumentManager
using	CustomAction = plVariant ()(const plDocument)

Static Public Member Functions inherited from plDocumentManager
static const plHybridArray< plDocumentManager *, 16 > &	GetAllDocumentManagers ()

static plResult	FindDocumentTypeFromPath (plStringView sPath, bool bForCreation, const plDocumentTypeDescriptor *&out_pTypeDesc)

static plDocument *	GetDocumentByGuid (const plUuid &guid)

static bool	EnsureDocumentIsClosedInAllManagers (plStringView sPath)
	If the given document is open, it will be closed. User is not asked about it, unsaved changes are discarded. Returns true if the document was open and needed to be closed.

static void	CloseAllDocuments ()

static const plDocumentTypeDescriptor *	GetDescriptorForDocumentType (plStringView sDocumentType)

static const plMap< plString, const plDocumentTypeDescriptor * > &	GetAllDocumentDescriptors ()

Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Static Public Attributes inherited from plDocumentManager
static plCopyOnBroadcastEvent< const Event & >	s_Events

static plEvent< Request & >	s_Requests

static plMap< plString, CustomAction >	s_CustomActions

Protected Member Functions inherited from plDocumentManager
virtual void	InternalCloneDocument (plStringView sPath, plStringView sClonePath, const plUuid &documentId, const plUuid &seedGuid, const plUuid &cloneGuid, plAbstractObjectGraph pHeader, plAbstractObjectGraph pObjects, plAbstractObjectGraph *pTypes)

Member Enumeration Documentation

◆ OutputReliability

enum plAssetDocumentManager::OutputReliability : plUInt8

Describes how likely it is that a generated file is 'corrupted', due to dependency issues and such. For example a prefab may not work correctly, if it was written with a very different C++ plugin state, but this can't be detected later. Whereas a texture always produces exactly the same output and is thus perfectly reliable. This is used to clear asset caches selectively, and keep things that are unlikely to be in a broken state.

Member Function Documentation

◆ CloneDocument()

plStatus plAssetDocumentManager::CloneDocument	(	plStringView	sPath,
		plStringView	sClonePath,
		plUuid &	inout_cloneGuid )

overridevirtual

Reimplemented from plDocumentManager.

◆ GetAdditionalOutputs()

virtual plStatus plAssetDocumentManager::GetAdditionalOutputs ( plDynamicArray< plString > & ref_files )

inlinevirtual

If this asset type has additional output files that need to be generated (like a texture atlas that combines outputs from multiple assets) this function should make sure those files are all generated and return the list of relative file paths (from the data directory root).

Reimplemented in plTypeScriptAssetDocumentManager.

◆ GetAssetTypeOutputReliability()

virtual OutputReliability plAssetDocumentManager::GetAssetTypeOutputReliability ( ) const

inlinevirtual

See also: OutputReliability

Reimplemented in plColorGradientAssetDocumentManager, plCurve1DAssetDocumentManager, plCustomDataAssetDocumentManager, plImageDataAssetDocumentManager, plLUTAssetDocumentManager, plRenderPipelineAssetManager, plSoundBankAssetDocumentManager, plSoundEventAssetDocumentManager, plStateMachineAssetManager, plSurfaceAssetDocumentManager, plTextureAssetDocumentManager, and plTextureCubeAssetDocumentManager.

◆ GetAssetTypesRequiringTransformForSceneExport()

virtual void plAssetDocumentManager::GetAssetTypesRequiringTransformForSceneExport ( plSet< plTempHashedString > & inout_assetTypes )

inlinevirtual

In case this manager deals with types that need to be force transformed on scene export, it can add the asset type names to this list. This is only needed for assets that have such special dependencies for their transform step, that the regular dependency tracking doesn't work for them. Currently the only known case are Collection assets, because they have to manually go through the Package dependencies transitively, which means that the asset curator can't know when they need to be updated.

Reimplemented in plCollectionAssetDocumentManager.

◆ GetRelativeOutputFileName()

plString plAssetDocumentManager::GetRelativeOutputFileName	(	const plAssetDocumentTypeDescriptor *	pTypeDesc,
		plStringView	sDataDirectory,
		plStringView	sDocumentPath,
		plStringView	sOutputTag,
		const plPlatformProfile *	pAssetProfile = nullptr ) const

virtual

Relative to 'AssetCache' folder.

Reimplemented in plMaterialAssetDocumentManager, and plTextureAssetDocumentManager.

◆ OpenPickedDocument()

virtual plResult plAssetDocumentManager::OpenPickedDocument	(	const plDocumentObject *	pPickedComponent,
		plUInt32	uiPartIndex )

inlinevirtual

Called by the editor to try to open a document for the matching picking result.

Reimplemented in plMeshAssetDocumentManager.

The documentation for this class was generated from the following files:

Code/Editor/EditorFramework/Assets/AssetDocumentManager.h
Code/Editor/EditorFramework/Assets/Implementation/AssetDocumentManager.cpp
