An example character controller (CC) implementation build upon plJoltCharacterControllerComponent. More...

#include <JoltDefaultCharacterComponent.h>

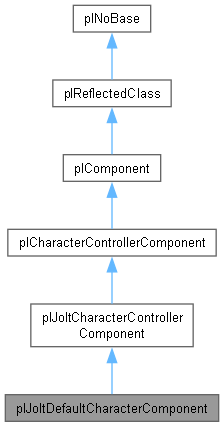

Inheritance diagram for plJoltDefaultCharacterComponent:

[legend]

Classes
struct	Config

Public Types
enum class	GroundState : plUInt8 { OnGround , Sliding , InAir }

Public Member Functions
virtual void	SerializeComponent (plWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (plWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

bool	GetAllowJumpInAir () const

void	SetAllowJumpInAir (bool inAllow)

void	SetWalkSurfaceInteraction (const char *szName)

const char *	GetWalkSurfaceInteraction () const

void	SetFallbackWalkSurfaceFile (const char *szFile)

const char *	GetFallbackWalkSurfaceFile () const

void	SetHeadObjectReference (const char *szReference)
	Sets an object GUID for an object that is the 'head' (controls the camera).

void	SetInputState (plMsgMoveCharacterController &ref_msg)
	This message is used to steer the CC.

float	GetCurrentCapsuleHeight () const
	Returns the current height of the entire capsule (crouching or standing).

float	GetCurrentCylinderHeight () const
	Returns the current height of the cylindrical part of the capsule (crouching or standing).

virtual float	GetShapeRadius () const override
	Returns the radius of the shape. This never changes at runtime.

virtual bool	IsTouchingGround () override
	Checks whether the CC is currently touching the ground.

GroundState	GetGroundState () const

bool	IsStandingOnGround () const

bool	IsSlidingOnGround () const

bool	IsInAir () const

virtual bool	IsCrouching () override
	Checks whether the CC is currently in the crouch state.

virtual void	TeleportCharacter (const plVec3 &vGlobalFootPosition) override
	Instantly teleports the character to the target position. Doesn't change its rotation.

Public Member Functions inherited from plJoltCharacterControllerComponent
void	SetObjectToIgnore (plUInt32 uiObjectFilterID)
	The CC will move through the given physics body.

void	ClearObjectToIgnore ()

void	SetMaxClimbingSlope (plAngle slope)
	The maximum slope that the character can walk up.

plAngle	GetMaxClimbingSlope () const

void	SetMass (float fMass)
	The mass with which the character will push down on objects that it is standing on.

float	GetMass () const

void	SetStrength (float fStrength)
	The strength with which the character will push against objects that it is running into.

float	GetStrength () const

virtual void	RawMove (const plVec3 &vMoveDeltaGlobal) override
	Attempts to move the character into the given direction.

virtual void	MoveCharacter (plMsgMoveCharacterController &msg) override
	Instructs the CC to move in certain directions. An implementation can queue the request for later processing.

virtual bool	IsDestinationUnobstructed (const plVec3 &vGlobalFootPos, float fCharacterHeight) override
	Checks whether the CC can be teleported to the target position without getting stuck.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plAngle	m_RotateSpeed = plAngle::MakeFromDegree(90.0f)
	How many degrees per second the character turns.

float	m_fShapeRadius = 0.25f
	The radius of the capsule shape.

float	m_fCylinderHeightCrouch = 0.9f
	The total cylinder height when the character crouches.

float	m_fCylinderHeightStand = 1.7f
	The total cylinder height when the character stands.

float	m_fFootRadius = 0.15f
	The radius of the feet area, where it is checked whether the CC properly stands on the ground.

float	m_fWalkSpeedCrouching = 0.5f
	Meters per second movement speed when crouching.

float	m_fWalkSpeedStanding = 1.5f
	Meters per second movement speed when standing.

float	m_fWalkSpeedRunning = 3.5f
	Meters per second movement speed when standing and running.

float	m_fMaxStepUp = 0.25f
	The maximum step height that the CC can step up in a single frame.

float	m_fMaxStepDown = 0.25f
	The maximum step height that the CC can step down in a single frame (without 'falling').

float	m_fJumpImpulse = 5.0f
	The physics impulse to use for jumping.

bool	m_bAllowJumpInAir = false
	Do we allow the CC to jump in the air? such as double jumping.

plHashedString	m_sWalkSurfaceInteraction
	The surface interaction to spawn regularly when walking.

plSurfaceResourceHandle	m_hFallbackWalkSurface
	The surface type to use for interactions, when no other surface type is available.

float	m_fWalkInteractionDistance = 1.0f
	How far the CC has to walk for spawning another surface interaction.

float	m_fRunInteractionDistance = 3.0f
	How far the CC has to run for spawning another surface interaction.

float	m_fAirSpeed = 2.5f
	How fast to move while falling. The higher, the more "air control" the player has.

float	m_fAirFriction = 0.5f
	How much lateral motion to lose while falling.

Public Attributes inherited from plJoltCharacterControllerComponent
plUInt8	m_uiCollisionLayer = 0
	The collision layer determines with which other actors this actor collides.

plUInt8	m_uiPresenceCollisionLayer = 0
	In case a 'presence shape' is used, this defines which geometry the presence bodies collides with.

plBitflags< plJoltCharacterDebugFlags >	m_DebugFlags
	What aspects of the CC to visualize.

Protected Member Functions
virtual void	OnSimulationStarted () override
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

virtual void	OnActivated () override
	This method is called when the component gets activated.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

void	OnUpdateLocalBounds (plMsgUpdateLocalBounds &msg) const

virtual void	OnApplyRootMotion (plMsgApplyRootMotion &msg)

virtual void	DetermineConfig (Config &out_inputs)

virtual void	UpdateCharacter () override
	Called up to once per frame, but potentially less often, if physics updates were skipped due to high framerates.

virtual void	ApplyRotationZ ()

void	ResetInputState ()
	Clears the input states to neutral values.

void	ResetInternalState ()

virtual JPH::Ref< JPH::Shape >	MakeNextCharacterShape () override
	Creates a new shape with the given height (and fixed radius)

void	ApplyCrouchState ()

void	InteractWithSurfaces (const ContactPoint &contact, const Config &cfg)

void	StoreLateralVelocity ()

void	ClampLateralVelocity ()

void	MoveHeadObject ()

void	DebugVisualizations ()

void	CheckFeet ()

Protected Member Functions inherited from plJoltCharacterControllerComponent
PL_ALWAYS_INLINE float	GetUpdateTimeDelta () const
	Returns the time delta to use for updating the character. This may differ from the world delta.

PL_ALWAYS_INLINE float	GetInverseUpdateTimeDelta () const
	Returns the inverse of update time delta.

JPH::CharacterVirtual *	GetJoltCharacter ()
	Gives access to the internally used JPH::CharacterVirtual.

const JPH::CharacterVirtual *	GetJoltCharacter () const

plResult	TryChangeShape (JPH::Shape *pNewShape)
	Attempts to change the character shape to the new one. Fails if the new shape overlaps with surrounding geometry.

void	RawMoveWithVelocity (const plVec3 &vVelocity, float fMaxStairStepUp, float fMaxStepDown)
	Moves the character using the given velocity and timestep, making it collide with and slide along obstacles.

void	RawMoveIntoDirection (const plVec3 &vDirection)
	Variant of RawMoveWithVelocity() that takes a direction vector instead.

void	RawMoveToPosition (const plVec3 &vTargetPosition)
	Variant of RawMoveWithVelocity() that takes a target position instead.

void	TeleportToPosition (const plVec3 &vGlobalFootPos)
	Teleports the character to the destination position, even if it would get stuck there.

bool	StickToGround (float fMaxDist)
	If the CC is slightly above the ground, this will move it down so that it touches the ground.

void	CollectCastContacts (plDynamicArray< ContactPoint > &out_Contacts, const JPH::Shape *pShape, const plVec3 &vQueryPosition, const plQuat &qQueryRotation, const plVec3 &vSweepDir) const
	Gathers all contact points that are found by sweeping the shape along a direction.

void	CollectContacts (plDynamicArray< ContactPoint > &out_Contacts, const JPH::Shape *pShape, const plVec3 &vQueryPosition, const plQuat &qQueryRotation, float fCollisionTolerance) const
	Gathers all contact points of the shape at the target position.

plVec3	GetContactVelocityAndPushAway (const ContactPoint &contact, float fPushForce)
	Detects the velocity at the contact point. If it is a dynamic body, a force pushing it away is applied.

void	SpawnContactInteraction (const ContactPoint &contact, const plHashedString &sSurfaceInteraction, plSurfaceResourceHandle hFallbackSurface, const plVec3 &vInteractionNormal=plVec3(0, 0, 1))
	Spawns a surface interaction prefab at the given contact point.

void	VisualizeContact (const ContactPoint &contact, const plColor &color) const
	Debug draws the contact point.

void	VisualizeContacts (const plDynamicArray< ContactPoint > &contacts, const plColor &color) const
	Debug draws all the contact points.

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	Deinitialize ()
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
GroundState	m_LastGroundState = GroundState::InAir

plUInt8	m_uiInputJumpBit: 1

plUInt8	m_uiInputCrouchBit: 1

plUInt8	m_uiInputRunBit: 1

plUInt8	m_uiIsCrouchingBit: 1

plAngle	m_InputRotateZ

plVec2	m_vInputDirection = plVec2::MakeZero()

float	m_fVelocityUp = 0.0f

float	m_fNextCylinderHeight = 0

float	m_fAccumulatedWalkDistance = 0.0f

plVec2	m_vVelocityLateral = plVec2::MakeZero()

plTransform	m_PreviousTransform

bool	m_bFeetOnSolidGround = false

float	m_fCurrentCylinderHeight = 0

float	m_fHeadHeightOffset = 0.0f

float	m_fHeadTargetHeight = 0.0f

plGameObjectHandle	m_hHeadObject

plVec3	m_vAbsoluteRootMotion = plVec3::MakeZero()

plUInt32	m_uiUserDataIndex = plInvalidIndex

plUInt32	m_uiJoltBodyID = plInvalidIndex

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

An example character controller (CC) implementation build upon plJoltCharacterControllerComponent.

This component implements typical behavior for an FPS type of game. It is mainly meant as an example, as most games would rather implement their own CC to control the exact details.

It is also possible to derive from this component and override some virtual functions to just tweak the behavior of this sample implementation, in case you only need minor tweaks.

Member Enumeration Documentation

◆ GroundState

enum class plJoltDefaultCharacterComponent::GroundState : plUInt8

strong

Enumerator
OnGround	Character is touching the ground.
Sliding	Character is touching a steep surface and therefore slides downwards.
InAir	Character isn't touching any ground surface (may still touch a wall or ceiling)

Member Function Documentation

◆ DeserializeComponent()

void plJoltDefaultCharacterComponent::DeserializeComponent ( plWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from plJoltCharacterControllerComponent.

◆ GetShapeRadius()

float plJoltDefaultCharacterComponent::GetShapeRadius ( ) const

overridevirtual

Returns the radius of the shape. This never changes at runtime.

Implements plJoltCharacterControllerComponent.

◆ IsCrouching()

virtual bool plJoltDefaultCharacterComponent::IsCrouching ( )

inlineoverridevirtual

Checks whether the CC is currently in the crouch state.

Reimplemented from plJoltCharacterControllerComponent.

◆ IsTouchingGround()

virtual bool plJoltDefaultCharacterComponent::IsTouchingGround ( )

inlineoverridevirtual

Checks whether the CC is currently touching the ground.

Reimplemented from plJoltCharacterControllerComponent.

◆ MakeNextCharacterShape()

JPH::Ref< JPH::Shape > plJoltDefaultCharacterComponent::MakeNextCharacterShape ( )

overrideprotectedvirtual

Creates a new shape with the given height (and fixed radius)

Implements plJoltCharacterControllerComponent.

◆ OnActivated()

void plJoltDefaultCharacterComponent::OnActivated ( )

overrideprotectedvirtual

This method is called when the component gets activated.

By default a component is active, but it can be created in an inactive state. In such a case OnActivated() is only called once a component is activated. If a component gets switched between active and inactive at runtime, OnActivated() and OnDeactivated() are called accordingly. In contrast Initialize() and Deinitialize() are only ever called once.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ OnDeactivated()

void plJoltDefaultCharacterComponent::OnDeactivated ( )

overrideprotectedvirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plJoltCharacterControllerComponent.

◆ OnSimulationStarted()

void plJoltDefaultCharacterComponent::OnSimulationStarted ( )

overrideprotectedvirtual

This method is called once for active components, at the start of the next world update, but only when the world is simulated.

This is the one preferred method to setup typical game logic. In a pure game environment there is no practical difference between OnActivated() and OnSimulationStarted(), as OnSimulationStarted() will be called right after OnActivated().

However, when a scene is open inside the editor, there is an important difference: OnActivated() is called once the component was created. OnSimulationStarted() is only called once the game simulation is started inside the editor. As an example, if a component starts a sound in OnActivated(), that sound will play right after the scene has been loaded into the editor. If instead the sound gets started in OnSimulationStarted(), it will only play once the user starts the game mode inside the editor.

Additionally, OnSimulationStarted() is only ever executed once on a component, even if the plWorld pauses and resumes world simulation multiple times. Thus components that should only execute a thing exactly once, will work correctly. In contrast OnActivated() and OnDeactivated() will be executed every time the component's active state is toggled, which could re-execute the same behavior multiple times.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plJoltCharacterControllerComponent.

◆ SerializeComponent()

void plJoltDefaultCharacterComponent::SerializeComponent ( plWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from plJoltCharacterControllerComponent.

◆ TeleportCharacter()

void plJoltDefaultCharacterComponent::TeleportCharacter ( const plVec3 & vGlobalFootPosition )

overridevirtual

Instantly teleports the character to the target position. Doesn't change its rotation.

Reimplemented from plJoltCharacterControllerComponent.

◆ UpdateCharacter()

void plJoltDefaultCharacterComponent::UpdateCharacter ( )

overrideprotectedvirtual

Called up to once per frame, but potentially less often, if physics updates were skipped due to high framerates.

All shape modifications and moves should only be executed during this step. The given deltaTime should be used, rather than the world's time diff.

Implements plJoltCharacterControllerComponent.

The documentation for this class was generated from the following files:

Code/EnginePlugins/JoltPlugin/Character/JoltDefaultCharacterComponent.h
Code/EnginePlugins/JoltPlugin/Character/Implementation/JoltDefaultCharacterComponent.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ GroundState

Member Function Documentation

◆ DeserializeComponent()

◆ GetShapeRadius()

◆ IsCrouching()

◆ IsTouchingGround()

◆ MakeNextCharacterShape()

◆ OnActivated()

◆ OnDeactivated()

◆ OnSimulationStarted()

◆ SerializeComponent()

◆ TeleportCharacter()

◆ UpdateCharacter()
