Base class for character controllers (CC). More...

#include <JoltCharacterControllerComponent.h>

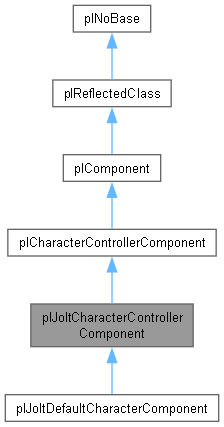

Inheritance diagram for plJoltCharacterControllerComponent:

[legend]

Classes
struct	ContactPoint
	Describes a point where the CC collided with other geometry. More...

Public Member Functions
virtual void	SerializeComponent (plWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (plWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

void	SetObjectToIgnore (plUInt32 uiObjectFilterID)
	The CC will move through the given physics body.

void	ClearObjectToIgnore ()

void	SetMaxClimbingSlope (plAngle slope)
	The maximum slope that the character can walk up.

plAngle	GetMaxClimbingSlope () const

void	SetMass (float fMass)
	The mass with which the character will push down on objects that it is standing on.

float	GetMass () const

void	SetStrength (float fStrength)
	The strength with which the character will push against objects that it is running into.

float	GetStrength () const

virtual void	RawMove (const plVec3 &vMoveDeltaGlobal) override
	Attempts to move the character into the given direction.

virtual void	MoveCharacter (plMsgMoveCharacterController &msg) override
	Instructs the CC to move in certain directions. An implementation can queue the request for later processing.

virtual void	TeleportCharacter (const plVec3 &vGlobalFootPos) override
	Teleports the CC to the desired global position. Ignores obstacles on the path.

virtual bool	IsDestinationUnobstructed (const plVec3 &vGlobalFootPos, float fCharacterHeight) override
	Checks whether the CC can be teleported to the target position without getting stuck.

virtual bool	IsTouchingGround () override
	Checks whether the CC is currently touching the ground.

virtual bool	IsCrouching () override
	Checks whether the CC is currently in the crouch state.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plUInt8	m_uiCollisionLayer = 0
	The collision layer determines with which other actors this actor collides.

plUInt8	m_uiPresenceCollisionLayer = 0
	In case a 'presence shape' is used, this defines which geometry the presence bodies collides with.

plBitflags< plJoltCharacterDebugFlags >	m_DebugFlags
	What aspects of the CC to visualize.

Protected Member Functions
virtual void	OnSimulationStarted () override
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

PL_ALWAYS_INLINE float	GetUpdateTimeDelta () const
	Returns the time delta to use for updating the character. This may differ from the world delta.

PL_ALWAYS_INLINE float	GetInverseUpdateTimeDelta () const
	Returns the inverse of update time delta.

virtual JPH::Ref< JPH::Shape >	MakeNextCharacterShape ()=0
	Returns the shape that the character is supposed to use next.

virtual float	GetShapeRadius () const =0
	Returns the radius of the shape. This never changes at runtime.

virtual void	UpdateCharacter ()=0
	Called up to once per frame, but potentially less often, if physics updates were skipped due to high framerates.

JPH::CharacterVirtual *	GetJoltCharacter ()
	Gives access to the internally used JPH::CharacterVirtual.

const JPH::CharacterVirtual *	GetJoltCharacter () const

plResult	TryChangeShape (JPH::Shape *pNewShape)
	Attempts to change the character shape to the new one. Fails if the new shape overlaps with surrounding geometry.

void	RawMoveWithVelocity (const plVec3 &vVelocity, float fMaxStairStepUp, float fMaxStepDown)
	Moves the character using the given velocity and timestep, making it collide with and slide along obstacles.

void	RawMoveIntoDirection (const plVec3 &vDirection)
	Variant of RawMoveWithVelocity() that takes a direction vector instead.

void	RawMoveToPosition (const plVec3 &vTargetPosition)
	Variant of RawMoveWithVelocity() that takes a target position instead.

void	TeleportToPosition (const plVec3 &vGlobalFootPos)
	Teleports the character to the destination position, even if it would get stuck there.

bool	StickToGround (float fMaxDist)
	If the CC is slightly above the ground, this will move it down so that it touches the ground.

void	CollectCastContacts (plDynamicArray< ContactPoint > &out_Contacts, const JPH::Shape *pShape, const plVec3 &vQueryPosition, const plQuat &qQueryRotation, const plVec3 &vSweepDir) const
	Gathers all contact points that are found by sweeping the shape along a direction.

void	CollectContacts (plDynamicArray< ContactPoint > &out_Contacts, const JPH::Shape *pShape, const plVec3 &vQueryPosition, const plQuat &qQueryRotation, float fCollisionTolerance) const
	Gathers all contact points of the shape at the target position.

plVec3	GetContactVelocityAndPushAway (const ContactPoint &contact, float fPushForce)
	Detects the velocity at the contact point. If it is a dynamic body, a force pushing it away is applied.

void	SpawnContactInteraction (const ContactPoint &contact, const plHashedString &sSurfaceInteraction, plSurfaceResourceHandle hFallbackSurface, const plVec3 &vInteractionNormal=plVec3(0, 0, 1))
	Spawns a surface interaction prefab at the given contact point.

void	VisualizeContact (const ContactPoint &contact, const plColor &color) const
	Debug draws the contact point.

void	VisualizeContacts (const plDynamicArray< ContactPoint > &contacts, const plColor &color) const
	Debug draws all the contact points.

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	Deinitialize ()
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

virtual void	OnActivated ()
	This method is called when the component gets activated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Friends
class	plJoltWorldModule

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Detailed Description

Base class for character controllers (CC).

This class provides general functionality for building a character controller. It tries not to implement things that are game specific. It is assumed that most games implement their own character controller to be able to build very specific behavior. The plJoltDefaultCharacterComponent is an example implementation that shows how this can be achieved on top of this class.

Member Function Documentation

◆ ClearObjectToIgnore()

void plJoltCharacterControllerComponent::ClearObjectToIgnore ( )

See also: SetObjectToIgnore()

◆ CollectContacts()

void plJoltCharacterControllerComponent::CollectContacts	(	plDynamicArray< ContactPoint > &	out_Contacts,
		const JPH::Shape *	pShape,
		const plVec3 &	vQueryPosition,
		const plQuat &	qQueryRotation,
		float	fCollisionTolerance ) const

protected

Gathers all contact points of the shape at the target position.

Use fCollisionTolerance > 0 (e.g. 0.02f) to find contacts with walls/ground that the shape is touching but not penetrating.

◆ DeserializeComponent()

void plJoltCharacterControllerComponent::DeserializeComponent ( plWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from plCharacterControllerComponent.

Reimplemented in plJoltDefaultCharacterComponent.

◆ GetContactVelocityAndPushAway()

plVec3 plJoltCharacterControllerComponent::GetContactVelocityAndPushAway	(	const ContactPoint &	contact,
		float	fPushForce )

protected

Detects the velocity at the contact point. If it is a dynamic body, a force pushing it away is applied.

This is mainly used to get the velocity of the kinematic object that a character is standing on. It can then be incorporated into the movement, such that the character rides along. If the body at the contact point is dynamic, optionally a force can be applied, simulating that the character's weight pushes down on it.

◆ GetShapeRadius()

virtual float plJoltCharacterControllerComponent::GetShapeRadius ( ) const

protectedpure virtual

Returns the radius of the shape. This never changes at runtime.

Implemented in plJoltDefaultCharacterComponent.

◆ IsCrouching()

virtual bool plJoltCharacterControllerComponent::IsCrouching ( )

inlineoverridevirtual

Checks whether the CC is currently in the crouch state.

Implements plCharacterControllerComponent.

Reimplemented in plJoltDefaultCharacterComponent.

◆ IsDestinationUnobstructed()

virtual bool plJoltCharacterControllerComponent::IsDestinationUnobstructed	(	const plVec3 &	vGlobalFootPos,
		float	fCharacterHeight )

inlineoverridevirtual

Checks whether the CC can be teleported to the target position without getting stuck.

This can be used to check before using TeleportCharacter(). It can also be used to check whether a character can stand up from a crouching position, by passing a non-zero character height.

If a character height of 0 is passed in, the current height is used.

Implements plCharacterControllerComponent.

◆ IsTouchingGround()

virtual bool plJoltCharacterControllerComponent::IsTouchingGround ( )

inlineoverridevirtual

Checks whether the CC is currently touching the ground.

Implements plCharacterControllerComponent.

Reimplemented in plJoltDefaultCharacterComponent.

◆ MakeNextCharacterShape()

virtual JPH::Ref< JPH::Shape > plJoltCharacterControllerComponent::MakeNextCharacterShape ( )

protectedpure virtual

Returns the shape that the character is supposed to use next.

The desired target state (radius, height, etc) has to be stored somewhere else (e.g. as members in derived classes). The shape can be cached. The shape may not get applied to the character, in case this is used by things like TryResize and the next shape is determined to not fit.

Implemented in plJoltDefaultCharacterComponent.

◆ MoveCharacter()

virtual void plJoltCharacterControllerComponent::MoveCharacter ( plMsgMoveCharacterController & msg )

inlineoverridevirtual

Instructs the CC to move in certain directions. An implementation can queue the request for later processing.

It can also add further functionality, such as adding gravity, stair stepping, etc.

Implements plCharacterControllerComponent.

◆ OnDeactivated()

void plJoltCharacterControllerComponent::OnDeactivated ( )

overrideprotectedvirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

Reimplemented in plJoltDefaultCharacterComponent.

◆ OnSimulationStarted()

void plJoltCharacterControllerComponent::OnSimulationStarted ( )

overrideprotectedvirtual

This method is called once for active components, at the start of the next world update, but only when the world is simulated.

This is the one preferred method to setup typical game logic. In a pure game environment there is no practical difference between OnActivated() and OnSimulationStarted(), as OnSimulationStarted() will be called right after OnActivated().

However, when a scene is open inside the editor, there is an important difference: OnActivated() is called once the component was created. OnSimulationStarted() is only called once the game simulation is started inside the editor. As an example, if a component starts a sound in OnActivated(), that sound will play right after the scene has been loaded into the editor. If instead the sound gets started in OnSimulationStarted(), it will only play once the user starts the game mode inside the editor.

Additionally, OnSimulationStarted() is only ever executed once on a component, even if the plWorld pauses and resumes world simulation multiple times. Thus components that should only execute a thing exactly once, will work correctly. In contrast OnActivated() and OnDeactivated() will be executed every time the component's active state is toggled, which could re-execute the same behavior multiple times.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

Reimplemented in plJoltDefaultCharacterComponent.

◆ RawMove()

virtual void plJoltCharacterControllerComponent::RawMove ( const plVec3 & vMoveDeltaGlobal )

inlineoverridevirtual

Attempts to move the character into the given direction.

Implements the specific constraints, such as colliding with geometry and sliding along walls. Should NOT add further functionality, such as gravity. This function applies the result immediately and moves the owner object to the final location.

Implements plCharacterControllerComponent.

◆ SerializeComponent()

void plJoltCharacterControllerComponent::SerializeComponent ( plWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from plCharacterControllerComponent.

Reimplemented in plJoltDefaultCharacterComponent.

◆ SetObjectToIgnore()

void plJoltCharacterControllerComponent::SetObjectToIgnore ( plUInt32 uiObjectFilterID )

The CC will move through the given physics body.

Currently only one such object can be set. This is mainly used to ignore an object that the player is currently carrying, so that there are no unintended collisions.

Call ClearObjectToIgnore() to re-enable collisions.

◆ SpawnContactInteraction()

void plJoltCharacterControllerComponent::SpawnContactInteraction	(	const ContactPoint &	contact,
		const plHashedString &	sSurfaceInteraction,
		plSurfaceResourceHandle	hFallbackSurface,
		const plVec3 &	vInteractionNormal = plVec3(0, 0, 1) )

protected

Spawns a surface interaction prefab at the given contact point.

hFallbackSurface is used, if no other surface could be determined from the contact point.

◆ StickToGround()

bool plJoltCharacterControllerComponent::StickToGround ( float fMaxDist )

protected

If the CC is slightly above the ground, this will move it down so that it touches the ground.

If within the max distance no ground contact is found, the function does nothing and returns false.

◆ TeleportCharacter()

virtual void plJoltCharacterControllerComponent::TeleportCharacter ( const plVec3 & vGlobalFootPos )

inlineoverridevirtual

Teleports the CC to the desired global position. Ignores obstacles on the path.

Careful, the CC may get stuck in the new location, if it is inside static geometry. If it teleports into dynamic geometry, the result may also be undesirable.

Implements plCharacterControllerComponent.

Reimplemented in plJoltDefaultCharacterComponent.

◆ UpdateCharacter()

virtual void plJoltCharacterControllerComponent::UpdateCharacter ( )

protectedpure virtual

Called up to once per frame, but potentially less often, if physics updates were skipped due to high framerates.

All shape modifications and moves should only be executed during this step. The given deltaTime should be used, rather than the world's time diff.

Implemented in plJoltDefaultCharacterComponent.

Member Data Documentation

◆ m_uiCollisionLayer

plUInt8 plJoltCharacterControllerComponent::m_uiCollisionLayer = 0

The collision layer determines with which other actors this actor collides.

See also: plJoltActorComponent

The documentation for this class was generated from the following files:

Code/EnginePlugins/JoltPlugin/Character/JoltCharacterControllerComponent.h
Code/EnginePlugins/JoltPlugin/Character/Implementation/JoltCharacterControllerComponent.cpp

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ ClearObjectToIgnore()

◆ CollectContacts()

◆ DeserializeComponent()

◆ GetContactVelocityAndPushAway()

◆ GetShapeRadius()

◆ IsCrouching()

◆ IsDestinationUnobstructed()

◆ IsTouchingGround()

◆ MakeNextCharacterShape()

◆ MoveCharacter()

◆ OnDeactivated()

◆ OnSimulationStarted()

◆ RawMove()

◆ SerializeComponent()

◆ SetObjectToIgnore()

◆ SpawnContactInteraction()

◆ StickToGround()

◆ TeleportCharacter()

◆ UpdateCharacter()

Member Data Documentation

◆ m_uiCollisionLayer
