A forward render pass that renders all sky objects into the color target. More...

#include <SkyRenderPass.h>

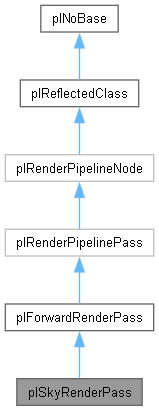

Inheritance diagram for plSkyRenderPass:

[legend]

Public Member Functions
	plSkyRenderPass (const char *szName="SkyRenderPass")

Public Member Functions inherited from plForwardRenderPass
	plForwardRenderPass (const char *szName="ForwardRenderPass")

virtual bool	GetRenderTargetDescriptions (const plView &view, const plArrayPtr< plGALTextureCreationDescription *const > inputs, plArrayPtr< plGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void	Execute (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual plResult	Serialize (plStreamWriter &inout_stream) const override

virtual plResult	Deserialize (plStreamReader &inout_stream) override

Public Member Functions inherited from plRenderPipelinePass
	plRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual plGALTextureHandle	QueryTextureProvider (const plRenderPipelineNodePin *pPin, const plGALTextureCreationDescription &desc)

virtual void	InitRenderPipelinePass (const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	ExecuteInactive (const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection const > outputs)

virtual void	ReadBackProperties (plView *pView)
	Allows for the pass to write data back using plView::SetRenderPassReadBackProperty. E.g. picking results etc.

void	RenderDataWithCategory (const plRenderViewContext &renderViewContext, plRenderData::Category category, plRenderDataBatch::Filter filter=plRenderDataBatch::Filter())

PL_ALWAYS_INLINE plRenderPipeline *	GetPipeline ()

PL_ALWAYS_INLINE const plRenderPipeline *	GetPipeline () const

Public Member Functions inherited from plRenderPipelineNode
void	InitializePins ()

plHashedString	GetPinName (const plRenderPipelineNodePin *pPin) const

const plRenderPipelineNodePin *	GetPinByName (const char *szName) const

const plRenderPipelineNodePin *	GetPinByName (plHashedString sName) const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetInputPins () const

const plArrayPtr< const plRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
virtual void	RenderObjects (const plRenderViewContext &renderViewContext) override

Protected Member Functions inherited from plForwardRenderPass
virtual void	SetupResources (plGALCommandEncoder pCommandEncoder, const plRenderViewContext &renderViewContext, const plArrayPtr< plRenderPipelinePassConnection const > inputs, const plArrayPtr< plRenderPipelinePassConnection *const > outputs)

virtual void	SetupPermutationVars (const plRenderViewContext &renderViewContext)

virtual void	SetupLighting (const plRenderViewContext &renderViewContext)

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Protected Attributes inherited from plForwardRenderPass
plRenderPipelineNodePassThroughPin	m_PinColor

plRenderPipelineNodePassThroughPin	m_PinSSR

plRenderPipelineNodePassThroughPin	m_PinVelocity

plRenderPipelineNodePassThroughPin	m_PinMaterial

plRenderPipelineNodePassThroughPin	m_PinDepthStencil

plEnum< plForwardRenderShadingQuality >	m_ShadingQuality

Detailed Description

A forward render pass that renders all sky objects into the color target.

Member Function Documentation

◆ RenderObjects()

void plSkyRenderPass::RenderObjects ( const plRenderViewContext & renderViewContext )

overrideprotectedvirtual

Implements plForwardRenderPass.

The documentation for this class was generated from the following files:

Code/Engine/RendererCore/Pipeline/Passes/SkyRenderPass.h
Code/Engine/RendererCore/Pipeline/Implementation/Passes/SkyRenderPass.cpp
