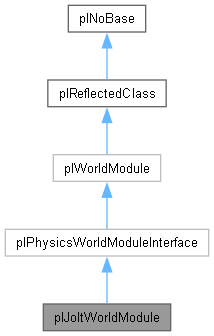

Inheritance diagram for plJoltWorldModule:

[legend]

Public Member Functions
	plJoltWorldModule (plWorld *pWorld)

virtual void	Initialize () override
	This method is called after the constructor. A derived type can override this method to do initialization work. Typically this is the method where updates function are registered.

virtual void	Deinitialize () override
	This method is called before the destructor. A derived type can override this method to do deinitialization work.

virtual void	OnSimulationStarted () override
	This method is called at the start of the next world update when the world is simulated. This method will be called after the initialization method.

JPH::PhysicsSystem *	GetJoltSystem ()

const JPH::PhysicsSystem *	GetJoltSystem () const

plUInt32	CreateObjectFilterID ()

void	DeleteObjectFilterID (plUInt32 &ref_uiObjectFilterID)

plUInt32	AllocateUserData (plJoltUserData *&out_pUserData)

void	DeallocateUserData (plUInt32 &ref_uiUserDataId)

const plJoltUserData &	GetUserData (plUInt32 uiUserDataId) const

void	SetGravity (const plVec3 &vObjectGravity, const plVec3 &vCharacterGravity)

virtual plVec3	GetGravity () const override

plVec3	GetCharacterGravity () const

virtual plUInt32	GetCollisionLayerByName (plStringView sName) const override
	Searches for a collision layer with the given name and returns its index.

virtual bool	Raycast (plPhysicsCastResult &out_result, const plVec3 &vStart, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params, plPhysicsHitCollection collection=plPhysicsHitCollection::Closest) const override

virtual bool	RaycastAll (plPhysicsCastResultArray &out_results, const plVec3 &vStart, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params) const override

virtual bool	SweepTestSphere (plPhysicsCastResult &out_result, float fSphereRadius, const plVec3 &vStart, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params, plPhysicsHitCollection collection=plPhysicsHitCollection::Closest) const override

virtual bool	SweepTestBox (plPhysicsCastResult &out_result, plVec3 vBoxExtends, const plTransform &transform, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params, plPhysicsHitCollection collection=plPhysicsHitCollection::Closest) const override

virtual bool	SweepTestCapsule (plPhysicsCastResult &out_result, float fCapsuleRadius, float fCapsuleHeight, const plTransform &transform, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params, plPhysicsHitCollection collection=plPhysicsHitCollection::Closest) const override

virtual bool	OverlapTestSphere (float fSphereRadius, const plVec3 &vPosition, const plPhysicsQueryParameters &params) const override

virtual bool	OverlapTestCapsule (float fCapsuleRadius, float fCapsuleHeight, const plTransform &transform, const plPhysicsQueryParameters &params) const override

virtual void	QueryShapesInSphere (plPhysicsOverlapResultArray &out_results, float fSphereRadius, const plVec3 &vPosition, const plPhysicsQueryParameters &params) const override

virtual void	AddStaticCollisionBox (plGameObject *pObject, plVec3 vBoxSize) override
	Adds a static actor with a box shape to pOwner.

virtual void	AddFixedJointComponent (plGameObject *pOwner, const plPhysicsWorldModuleInterface::FixedJointConfig &cfg) override
	Adds a fixed joint to pOwner.

virtual plBoundingBoxSphere	GetWorldSpaceBounds (plGameObject *pOwner, plUInt32 uiCollisionLayer, plBitflags< plPhysicsShapeType > shapeTypes, bool bIncludeChildObjects) const override
	Gets world space bounds of a physics object if its shape type is included in shapeTypes and its collision layer interacts with uiCollisionLayer.

const plSet< plJoltDynamicActorComponent * > &	GetActiveActors () const

const plMap< plJoltRagdollComponent *, plInt32 > &	GetActiveRagdolls () const

const plMap< plJoltRopeComponent *, plInt32 > &	GetActiveRopes () const

plArrayPtr< plJoltRagdollComponent * >	GetRagdollsPutToSleep ()

plUInt32	QueueBodyToAdd (JPH::Body *pBody, bool bAwake)
	Returns a uint32 that can be queried for completion with IsBodyStillQueuedToAdd().

bool	IsBodyStillQueuedToAdd (plUInt32 uiBodiesAddCounter) const
	Checks whether the last QueueBodyToAdd() has been processed already, or not.

JPH::GroupFilter *	GetGroupFilter () const

JPH::GroupFilter *	GetGroupFilterIgnoreSame () const

void	EnableJoinedBodiesCollisions (plUInt32 uiObjectFilterID1, plUInt32 uiObjectFilterID2, bool bEnable)

JPH::TempAllocator *	GetTempAllocator () const

void	ActivateCharacterController (plJoltCharacterControllerComponent *pCharacter, bool bActivate)

plJoltContactListener *	GetContactListener ()

void	CheckBreakableConstraints ()

void	QueryGeometryInBox (const plPhysicsQueryParameters &params, plBoundingBox box, plDynamicArray< plNavmeshTriangle > &out_triangles) const

Public Member Functions inherited from plWorldModule
plWorld *	GetWorld ()
	Returns the corresponding world to this module.

const plWorld *	GetWorld () const
	Returns the corresponding world to this module.

plUInt32	GetWorldIndex () const
	Same as GetWorld()->GetIndex(). Needed to break circular include dependencies.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plDeque< plComponentHandle >	m_RequireUpdate

plSet< plComponentHandle >	m_BreakableConstraints

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Protected Types inherited from plWorldModule
using	UpdateFunction = plDelegate<void(const UpdateContext&)>
	Update function delegate.

Protected Member Functions inherited from plPhysicsWorldModuleInterface
	plPhysicsWorldModuleInterface (plWorld *pWorld)

Protected Member Functions inherited from plWorldModule
	plWorldModule (plWorld *pWorld)

void	RegisterUpdateFunction (const UpdateFunctionDesc &desc)
	Registers the given update function at the world.

void	DeregisterUpdateFunction (const UpdateFunctionDesc &desc)
	De-registers the given update function from the world. Note that only the m_Function and the m_Phase of the description have to be valid for de-registration.

plAllocator *	GetAllocator ()
	Returns the allocator used by the world.

plInternal::WorldLargeBlockAllocator *	GetBlockAllocator ()
	Returns the block allocator used by the world.

bool	GetWorldSimulationEnabled () const
	Returns whether the world simulation is enabled.

virtual void	WorldClear ()
	Called by plWorld::Clear(). Can be used to clear cached data when a world is completely cleared of objects (but not deleted).

Protected Attributes inherited from plWorldModule
plWorld *	m_pWorld

Member Function Documentation

◆ AddFixedJointComponent()

void plJoltWorldModule::AddFixedJointComponent	(	plGameObject *	pOwner,
		const plPhysicsWorldModuleInterface::FixedJointConfig &	cfg )

overridevirtual

Adds a fixed joint to pOwner.

Reimplemented from plPhysicsWorldModuleInterface.

◆ AddStaticCollisionBox()

void plJoltWorldModule::AddStaticCollisionBox	(	plGameObject *	pOwner,
		plVec3	vBoxSize )

overridevirtual

Adds a static actor with a box shape to pOwner.

Reimplemented from plPhysicsWorldModuleInterface.

◆ Deinitialize()

void plJoltWorldModule::Deinitialize ( )

overridevirtual

This method is called before the destructor. A derived type can override this method to do deinitialization work.

Reimplemented from plWorldModule.

◆ GetCollisionLayerByName()

plUInt32 plJoltWorldModule::GetCollisionLayerByName ( plStringView sName ) const

overridevirtual

Searches for a collision layer with the given name and returns its index.

Returns plInvalidIndex if no such collision layer exists.

Implements plPhysicsWorldModuleInterface.

◆ GetGravity()

virtual plVec3 plJoltWorldModule::GetGravity ( ) const

inlineoverridevirtual

Implements plPhysicsWorldModuleInterface.

◆ GetWorldSpaceBounds()

plBoundingBoxSphere plJoltWorldModule::GetWorldSpaceBounds	(	plGameObject *	pOwner,
		plUInt32	uiCollisionLayer,
		plBitflags< plPhysicsShapeType >	shapeTypes,
		bool	bIncludeChildObjects ) const

overridevirtual

Gets world space bounds of a physics object if its shape type is included in shapeTypes and its collision layer interacts with uiCollisionLayer.

Reimplemented from plPhysicsWorldModuleInterface.

◆ Initialize()

void plJoltWorldModule::Initialize ( )

overridevirtual

This method is called after the constructor. A derived type can override this method to do initialization work. Typically this is the method where updates function are registered.

Reimplemented from plWorldModule.

◆ IsBodyStillQueuedToAdd()

bool plJoltWorldModule::IsBodyStillQueuedToAdd ( plUInt32 uiBodiesAddCounter ) const

inline

Checks whether the last QueueBodyToAdd() has been processed already, or not.

Bodies that aren't added to Jolt yet, may not get locked (they are not in the broadphase). If this is still the case, skip operations that wouldn't have an effect anyway.

◆ OnSimulationStarted()

void plJoltWorldModule::OnSimulationStarted ( )

overridevirtual

This method is called at the start of the next world update when the world is simulated. This method will be called after the initialization method.

Reimplemented from plWorldModule.

◆ OverlapTestCapsule()

bool plJoltWorldModule::OverlapTestCapsule	(	float	fCapsuleRadius,
		float	fCapsuleHeight,
		const plTransform &	transform,
		const plPhysicsQueryParameters &	params ) const

overridevirtual

Implements plPhysicsWorldModuleInterface.

◆ OverlapTestSphere()

bool plJoltWorldModule::OverlapTestSphere	(	float	fSphereRadius,
		const plVec3 &	vPosition,
		const plPhysicsQueryParameters &	params ) const

overridevirtual

Implements plPhysicsWorldModuleInterface.

◆ QueryShapesInSphere()

void plJoltWorldModule::QueryShapesInSphere	(	plPhysicsOverlapResultArray &	out_results,
		float	fSphereRadius,
		const plVec3 &	vPosition,
		const plPhysicsQueryParameters &	params ) const

overridevirtual

Implements plPhysicsWorldModuleInterface.

◆ Raycast()

bool plJoltWorldModule::Raycast	(	plPhysicsCastResult &	out_result,
		const plVec3 &	vStart,
		const plVec3 &	vDir,
		float	fDistance,
		const plPhysicsQueryParameters &	params,
		plPhysicsHitCollection	collection = plPhysicsHitCollection::Closest ) const

overridevirtual

Implements plPhysicsWorldModuleInterface.

◆ RaycastAll()

bool plJoltWorldModule::RaycastAll	(	plPhysicsCastResultArray &	out_results,
		const plVec3 &	vStart,
		const plVec3 &	vDir,
		float	fDistance,
		const plPhysicsQueryParameters &	params ) const

overridevirtual

Implements plPhysicsWorldModuleInterface.

◆ SweepTestBox()

bool plJoltWorldModule::SweepTestBox	(	plPhysicsCastResult &	out_result,
		plVec3	vBoxExtends,
		const plTransform &	transform,
		const plVec3 &	vDir,
		float	fDistance,
		const plPhysicsQueryParameters &	params,
		plPhysicsHitCollection	collection = plPhysicsHitCollection::Closest ) const

overridevirtual

Implements plPhysicsWorldModuleInterface.

◆ SweepTestCapsule()

bool plJoltWorldModule::SweepTestCapsule	(	plPhysicsCastResult &	out_result,
		float	fCapsuleRadius,
		float	fCapsuleHeight,
		const plTransform &	transform,
		const plVec3 &	vDir,
		float	fDistance,
		const plPhysicsQueryParameters &	params,
		plPhysicsHitCollection	collection = plPhysicsHitCollection::Closest ) const

overridevirtual

Implements plPhysicsWorldModuleInterface.

◆ SweepTestSphere()

bool plJoltWorldModule::SweepTestSphere	(	plPhysicsCastResult &	out_result,
		float	fSphereRadius,
		const plVec3 &	vStart,
		const plVec3 &	vDir,
		float	fDistance,
		const plPhysicsQueryParameters &	params,
		plPhysicsHitCollection	collection = plPhysicsHitCollection::Closest ) const

overridevirtual

Implements plPhysicsWorldModuleInterface.

The documentation for this class was generated from the following files:

Code/EnginePlugins/JoltPlugin/System/JoltWorldModule.h
Code/EnginePlugins/JoltPlugin/System/JoltQueries.cpp
Code/EnginePlugins/JoltPlugin/System/JoltWorldModule.cpp
