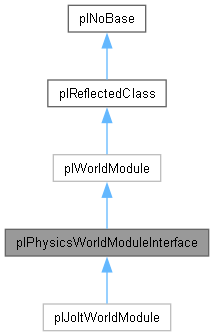

Inheritance diagram for plPhysicsWorldModuleInterface:

[legend]

Classes
struct	FixedJointConfig

struct	JointConfig

Public Member Functions
virtual plUInt32	GetCollisionLayerByName (plStringView sName) const =0
	Searches for a collision layer with the given name and returns its index.

virtual bool	Raycast (plPhysicsCastResult &out_result, const plVec3 &vStart, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params, plPhysicsHitCollection collection=plPhysicsHitCollection::Closest) const =0

virtual bool	RaycastAll (plPhysicsCastResultArray &out_results, const plVec3 &vStart, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params) const =0

virtual bool	SweepTestSphere (plPhysicsCastResult &out_result, float fSphereRadius, const plVec3 &vStart, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params, plPhysicsHitCollection collection=plPhysicsHitCollection::Closest) const =0

virtual bool	SweepTestBox (plPhysicsCastResult &out_result, plVec3 vBoxExtends, const plTransform &transform, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params, plPhysicsHitCollection collection=plPhysicsHitCollection::Closest) const =0

virtual bool	SweepTestCapsule (plPhysicsCastResult &out_result, float fCapsuleRadius, float fCapsuleHeight, const plTransform &transform, const plVec3 &vDir, float fDistance, const plPhysicsQueryParameters &params, plPhysicsHitCollection collection=plPhysicsHitCollection::Closest) const =0

virtual bool	OverlapTestSphere (float fSphereRadius, const plVec3 &vPosition, const plPhysicsQueryParameters &params) const =0

virtual bool	OverlapTestCapsule (float fCapsuleRadius, float fCapsuleHeight, const plTransform &transform, const plPhysicsQueryParameters &params) const =0

virtual void	QueryShapesInSphere (plPhysicsOverlapResultArray &out_results, float fSphereRadius, const plVec3 &vPosition, const plPhysicsQueryParameters &params) const =0

virtual plVec3	GetGravity () const =0

virtual void	AddStaticCollisionBox (plGameObject *pOwner, plVec3 vBoxSize)
	Adds a static actor with a box shape to pOwner.

virtual void	AddFixedJointComponent (plGameObject *pOwner, const plPhysicsWorldModuleInterface::FixedJointConfig &cfg)
	Adds a fixed joint to pOwner.

virtual plBoundingBoxSphere	GetWorldSpaceBounds (plGameObject *pOwner, plUInt32 uiCollisionLayer, plBitflags< plPhysicsShapeType > shapeTypes, bool bIncludeChildObjects) const
	Gets world space bounds of a physics object if its shape type is included in shapeTypes and its collision layer interacts with uiCollisionLayer.

Public Member Functions inherited from plWorldModule
plWorld *	GetWorld ()
	Returns the corresponding world to this module.

const plWorld *	GetWorld () const
	Returns the corresponding world to this module.

plUInt32	GetWorldIndex () const
	Same as GetWorld()->GetIndex(). Needed to break circular include dependencies.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
	plPhysicsWorldModuleInterface (plWorld *pWorld)

Protected Member Functions inherited from plWorldModule
	plWorldModule (plWorld *pWorld)

void	RegisterUpdateFunction (const UpdateFunctionDesc &desc)
	Registers the given update function at the world.

void	DeregisterUpdateFunction (const UpdateFunctionDesc &desc)
	De-registers the given update function from the world. Note that only the m_Function and the m_Phase of the description have to be valid for de-registration.

plAllocator *	GetAllocator ()
	Returns the allocator used by the world.

plInternal::WorldLargeBlockAllocator *	GetBlockAllocator ()
	Returns the block allocator used by the world.

bool	GetWorldSimulationEnabled () const
	Returns whether the world simulation is enabled.

virtual void	Initialize ()
	This method is called after the constructor. A derived type can override this method to do initialization work. Typically this is the method where updates function are registered.

virtual void	Deinitialize ()
	This method is called before the destructor. A derived type can override this method to do deinitialization work.

virtual void	OnSimulationStarted ()
	This method is called at the start of the next world update when the world is simulated. This method will be called after the initialization method.

virtual void	WorldClear ()
	Called by plWorld::Clear(). Can be used to clear cached data when a world is completely cleared of objects (but not deleted).

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Protected Types inherited from plWorldModule
using	UpdateFunction = plDelegate<void(const UpdateContext&)>
	Update function delegate.

Protected Attributes inherited from plWorldModule
plWorld *	m_pWorld

Member Function Documentation

◆ AddFixedJointComponent()

virtual void plPhysicsWorldModuleInterface::AddFixedJointComponent	(	plGameObject *	pOwner,
		const plPhysicsWorldModuleInterface::FixedJointConfig &	cfg )

inlinevirtual

Adds a fixed joint to pOwner.

Reimplemented in plJoltWorldModule.

◆ AddStaticCollisionBox()

virtual void plPhysicsWorldModuleInterface::AddStaticCollisionBox	(	plGameObject *	pOwner,
		plVec3	vBoxSize )

inlinevirtual

Adds a static actor with a box shape to pOwner.

Reimplemented in plJoltWorldModule.

◆ GetCollisionLayerByName()

virtual plUInt32 plPhysicsWorldModuleInterface::GetCollisionLayerByName ( plStringView sName ) const

pure virtual

Searches for a collision layer with the given name and returns its index.

Returns plInvalidIndex if no such collision layer exists.

Implemented in plJoltWorldModule.

◆ GetWorldSpaceBounds()

virtual plBoundingBoxSphere plPhysicsWorldModuleInterface::GetWorldSpaceBounds	(	plGameObject *	pOwner,
		plUInt32	uiCollisionLayer,
		plBitflags< plPhysicsShapeType >	shapeTypes,
		bool	bIncludeChildObjects ) const

inlinevirtual

Gets world space bounds of a physics object if its shape type is included in shapeTypes and its collision layer interacts with uiCollisionLayer.

Reimplemented in plJoltWorldModule.

The documentation for this class was generated from the following file:

Code/Engine/Core/Interfaces/PhysicsWorldModule.h
