Turns an object into a fully physically simulated movable object. More...

#include <JoltDynamicActorComponent.h>

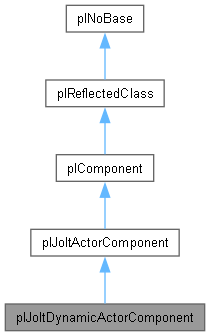

Inheritance diagram for plJoltDynamicActorComponent:

[legend]

Public Member Functions
virtual void	SerializeComponent (plWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (plWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

void	AddImpulseAtPos (plMsgPhysicsAddImpulse &ref_msg)
	Adds a physics impulse to this body at the given location.

void	AddForceAtPos (plMsgPhysicsAddForce &ref_msg)
	Adds a physics force to this body at the given location.

void	SetKinematic (bool b)
	Turns the actor into a 'kinematic' actor.

bool	GetKinematic () const

void	SetGravityFactor (float fFactor)
	Adjusts how strongly gravity affects this actor. Has no effect for kinematic actors.

float	GetGravityFactor () const

void	SetSurfaceFile (const char *szFile)

const char *	GetSurfaceFile () const

void	SetUseCustomCoM (bool b)
	Whether a custom center-of-mass shall be used.

bool	GetUseCustomCoM () const

void	AddLinearForce (const plVec3 &vForce)
	Adds a linear force to the center-of-mass of this actor. Unless there are other constraints, this would push the object, but not introduce any rotation.

void	AddLinearImpulse (const plVec3 &vImpulse)
	Adds a linear impulse to the center-of-mass of this actor. Unless there are other constraints, this would push the object, but not introduce any rotation.

void	AddAngularForce (const plVec3 &vForce)
	Adds an angular force to the center-of-mass of this actor. Unless there are other constraints, this would make the object rotate, but not move away.

void	AddAngularImpulse (const plVec3 &vImpulse)
	Adds an angular impulse to the center-of-mass of this actor. Unless there are other constraints, this would make the object rotate, but not move away.

void	AddConstraint (plComponentHandle hComponent)
	Should be called by components that add Jolt constraints to this body.

void	RemoveConstraint (plComponentHandle hComponent)
	Should be called when a constraint is removed (though not strictly required) to prevent unnecessary message sending.

float	GetMass () const
	Returns the actual mass of this actor which is either the user defined mass or has been calculated from density. For kinematic actors this function will return 0.

Public Member Functions inherited from plJoltActorComponent
void	SetInitialObjectFilterID (plUInt32 uiObjectFilterID)
	Sets the object filter ID to use. This can only be set right after creation, before the component gets activated.

plUInt32	GetObjectFilterID () const
	The object filter ID can be used to ignore collisions specifically with this one object.

plUInt32	GetJoltBodyID () const
	Returns the internal ID used by Jolt to identify this actor/body.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
bool	m_bCCD = false
	If enabled, a more precise simulation method is used, preventing fast moving actors from tunneling through walls. This comes at an extra performance cost.

bool	m_bStartAsleep = false
	If true, the actor will not be simulated right away, but only after another actor starts interacting with it. This is a performance optimization to prevent performance spikes after loading a level.

float	m_fInitialMass = 0.0f
	How heavy the object shall be. If zero, the mass is computed from the shapes and the density.

float	m_fDensity = 1.0f
	How dense the object shall be. Unused if m_fInitialMass is non-zero. Otherwise used to compute the weight from all the shapes.

float	m_fLinearDamping = 0.1f
	How much to dampen linear motion. The higher the value, the quicker a moving object comes to rest.

float	m_fAngularDamping = 0.05f
	How much to dampen angular motion. The higher the value, the quicker a rotating object comes to rest.

plSurfaceResourceHandle	m_hSurface
	Which surface to use for all shapes. The surface defines various physical properties and interactions.

plBitflags< plOnJoltContact >	m_OnContact
	What reactions should be triggered when an actor gets into contact with another.

plVec3	m_vCenterOfMass = plVec3::MakeZero()
	A local offset for the center of mass.

Public Attributes inherited from plJoltActorComponent
plUInt8	m_uiCollisionLayer = 0
	The collision layer determines with which other actors this actor collides.

Protected Member Functions
virtual void	OnSimulationStarted () override
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

const plJoltMaterial *	GetJoltMaterial () const

Protected Member Functions inherited from plJoltActorComponent
const plJoltUserData *	GetUserData () const

void	ExtractSubShapeGeometry (const plGameObject *pObject, plMsgExtractGeometry &msg) const

plResult	CreateShape (JPH::BodyCreationSettings pSettings, float fDensity, const plJoltMaterial pMaterial)

virtual void	CreateShapes (plDynamicArray< plJoltSubShape > &out_Shapes, const plTransform &rootTransform, float fDensity, const plJoltMaterial *pMaterial)

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	Deinitialize ()
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

virtual void	OnActivated ()
	This method is called when the component gets activated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
bool	m_bKinematic = false

float	m_fGravityFactor = 1.0f

plSmallArray< plComponentHandle, 1 >	m_Constraints

Protected Attributes inherited from plJoltActorComponent
plUInt32	m_uiUserDataIndex = plInvalidIndex

plUInt32	m_uiJoltBodyID = plInvalidIndex

plUInt32	m_uiObjectFilterID = plInvalidIndex

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Static Protected Member Functions inherited from plJoltActorComponent
static void	GatherShapes (plDynamicArray< plJoltSubShape > &shapes, plGameObject pObject, const plTransform &rootTransform, float fDensity, const plJoltMaterial pMaterial)

Detailed Description

Turns an object into a fully physically simulated movable object.

By default dynamic objects push each other and collide with static obstacles. They can be switched to be "kinematic" in which case they act like static objects, but can be moved around and will still push aside other dynamic objects.

Dynamic actors can also be moved through forces and impulses.

Dynamic actors must be made up of convex collision meshes. They cannot use concave meshes.

Member Function Documentation

◆ AddConstraint()

void plJoltDynamicActorComponent::AddConstraint ( plComponentHandle hComponent )

Should be called by components that add Jolt constraints to this body.

All registered components receive plJoltMsgDisconnectConstraints in case the body is deleted. It is necessary to react to that by removing the Jolt constraint, otherwise Jolt will crash during the next update.

◆ AddForceAtPos()

void plJoltDynamicActorComponent::AddForceAtPos ( plMsgPhysicsAddForce & ref_msg )

Adds a physics force to this body at the given location.

A force is something that applies a constant push, for example wind that blows on an object over a longer duration.

◆ AddImpulseAtPos()

void plJoltDynamicActorComponent::AddImpulseAtPos ( plMsgPhysicsAddImpulse & ref_msg )

Adds a physics impulse to this body at the given location.

An impulse is a force that is applied only once, e.g. a sudden push.

◆ DeserializeComponent()

void plJoltDynamicActorComponent::DeserializeComponent ( plWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from plJoltActorComponent.

◆ OnDeactivated()

void plJoltDynamicActorComponent::OnDeactivated ( )

overrideprotectedvirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plJoltActorComponent.

◆ OnSimulationStarted()

void plJoltDynamicActorComponent::OnSimulationStarted ( )

overrideprotectedvirtual

This method is called once for active components, at the start of the next world update, but only when the world is simulated.

This is the one preferred method to setup typical game logic. In a pure game environment there is no practical difference between OnActivated() and OnSimulationStarted(), as OnSimulationStarted() will be called right after OnActivated().

However, when a scene is open inside the editor, there is an important difference: OnActivated() is called once the component was created. OnSimulationStarted() is only called once the game simulation is started inside the editor. As an example, if a component starts a sound in OnActivated(), that sound will play right after the scene has been loaded into the editor. If instead the sound gets started in OnSimulationStarted(), it will only play once the user starts the game mode inside the editor.

Additionally, OnSimulationStarted() is only ever executed once on a component, even if the plWorld pauses and resumes world simulation multiple times. Thus components that should only execute a thing exactly once, will work correctly. In contrast OnActivated() and OnDeactivated() will be executed every time the component's active state is toggled, which could re-execute the same behavior multiple times.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plJoltActorComponent.

◆ SerializeComponent()

void plJoltDynamicActorComponent::SerializeComponent ( plWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from plJoltActorComponent.

◆ SetGravityFactor()

void plJoltDynamicActorComponent::SetGravityFactor ( float fFactor )

Adjusts how strongly gravity affects this actor. Has no effect for kinematic actors.

Set this to zero to fully disable gravity.

◆ SetKinematic()

void plJoltDynamicActorComponent::SetKinematic ( bool b )

Turns the actor into a 'kinematic' actor.

If an actor is kinematic, it isn't fully simulated anymore, meaning forces do not affect it further. Thus it does not fall down, it can't be pushed by other actors, it is mostly like a static actor.

However, it can be moved programmatically. If other code changes the position of this object, it will move to that location and while doing so, it pushes other dynamic actors out of the way.

Kinematic actors are typically used for moving platforms, doors and other objects that need to move and push aside dynamic actors.

Member Data Documentation

◆ m_vCenterOfMass

plVec3 plJoltDynamicActorComponent::m_vCenterOfMass = plVec3::MakeZero()

A local offset for the center of mass.

See also: SetUseCustomCoM()

The documentation for this class was generated from the following files:

Code/EnginePlugins/JoltPlugin/Actors/JoltDynamicActorComponent.h
Code/EnginePlugins/JoltPlugin/Actors/Implementation/JoltDynamicActorComponent.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ AddConstraint()

◆ AddForceAtPos()

◆ AddImpulseAtPos()

◆ DeserializeComponent()

◆ OnDeactivated()

◆ OnSimulationStarted()

◆ SerializeComponent()

◆ SetGravityFactor()

◆ SetKinematic()

Member Data Documentation

◆ m_vCenterOfMass
