plQtEngineDocumentWindow Class Reference

Base class for all document windows that need a connection to the engine process, and might want to render 3D content. More...

#include <EngineDocumentWindow.moc.h>

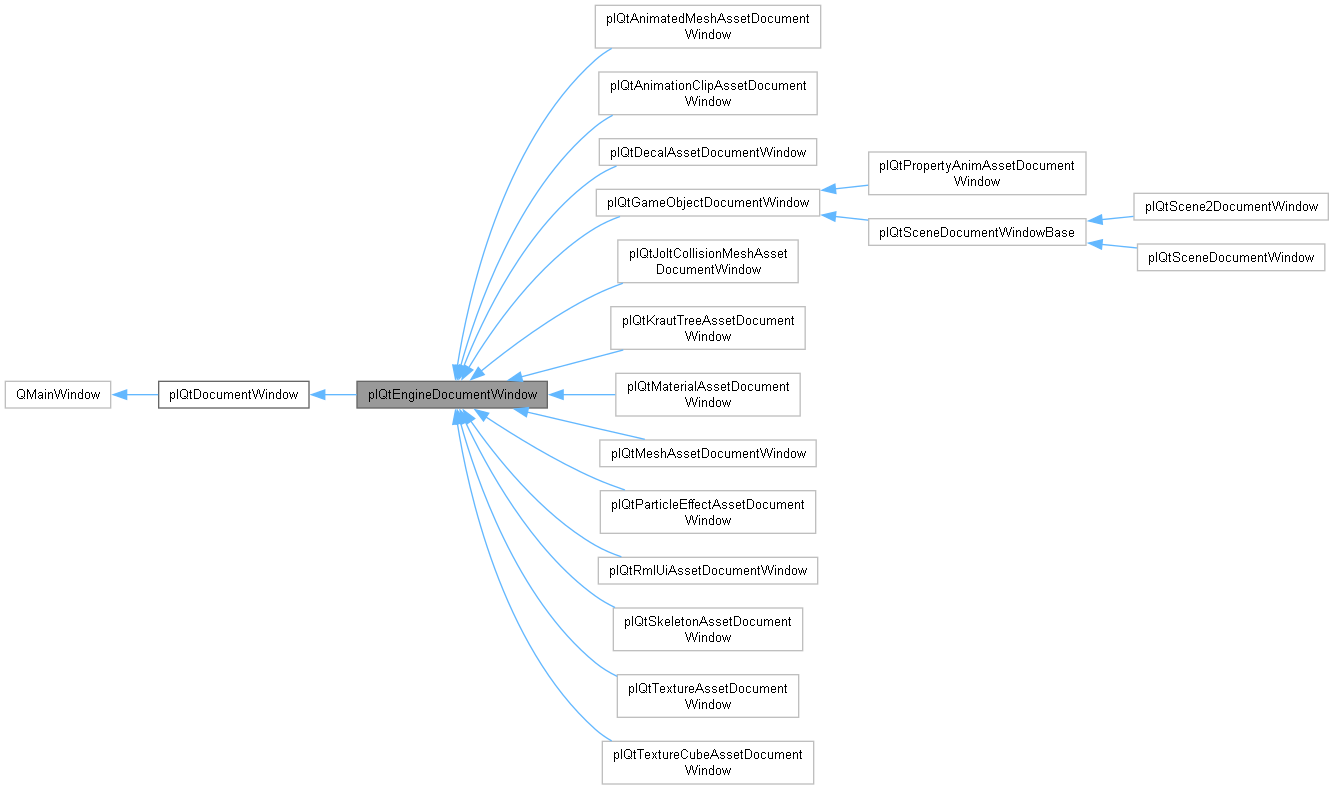

Inheritance diagram for plQtEngineDocumentWindow:
Inheritance graph
[legend]

Public Member Functions

 plQtEngineDocumentWindow (plAssetDocument *pDocument)

plEditorEngineConnection * GetEditorEngineConnection () const

const plObjectPickingResult & PickObject (plUInt16 uiScreenPosX, plUInt16 uiScreenPosY, plQtEngineViewWidget *pView) const

plAssetDocument * GetDocument () const

plQtEngineViewWidget * GetHoveredViewWidget () const
 Returns the plQtEngineViewWidget over which the mouse currently hovers.

plQtEngineViewWidget * GetFocusedViewWidget () const
 Returns the plQtEngineViewWidget that has the input focus.

plQtEngineViewWidget * GetViewWidgetByID (plUInt32 uiViewID) const

plArrayPtr< plQtEngineViewWidget *const > GetViewWidgets () const

void AddViewWidget (plQtEngineViewWidget *pView)

- Public Member Functions inherited from plQtDocumentWindow
 plQtDocumentWindow (plDocument *pDocument)

 plQtDocumentWindow (const char *szUniqueName)

void EnsureVisible ()

virtual plString GetWindowIcon () const

virtual plString GetDisplayName () const

virtual plString GetDisplayNameShort () const

const char * GetUniqueName () const

virtual const char * GetWindowLayoutGroupName () const =0
 The 'GroupName' is used for serializing window layouts. It should be unique among different window types.

plDocument * GetDocument () const

plStatus SaveDocument ()

bool CanCloseWindow ()

void CloseDocumentWindow ()

void ScheduleRestoreWindowLayout ()

bool IsVisibleInContainer () const

void SetTargetFramerate (plInt16 iTargetFPS)

void TriggerRedraw ()

virtual void RequestWindowTabContextMenu (const QPoint &globalPos)

plQtContainerWindow * GetContainerWindow () const

void ShowTemporaryStatusBarMsg (const plFormatString &text, plTime duration=plTime::MakeFromSeconds(5))
 Shows the given message for the given duration in the statusbar, then shows the permanent message again.

void SetPermanentStatusBarMsg (const plFormatString &text)
 Sets which text to show permanently in the statusbar. Set an empty string to clear the message.

virtual void CreateImageCapture (const char *szOutputPath)
 For unit tests to take a screenshot of the window (may include multiple views) to do image comparisons.


Public Attributes

plEvent< const plEngineWindowEvent & > m_EngineWindowEvent


Protected Member Functions

virtual void CommonAssetUiEventHandler (const plCommonAssetUiState &e)

virtual void ProcessMessageEventHandler (const plEditorEngineDocumentMsg *pMsg)

void RemoveViewWidget (plQtEngineViewWidget *pView)

void DestroyAllViews ()

virtual void InternalRedraw () override

- Protected Member Functions inherited from plQtDocumentWindow
virtual void showEvent (QShowEvent *event) override

virtual void hideEvent (QHideEvent *event) override

virtual bool event (QEvent *event) override

virtual bool eventFilter (QObject *obj, QEvent *e) override

void FinishWindowCreation ()


Protected Attributes

plHybridArray< plQtEngineViewWidget *, 4 > m_ViewWidgets


Friends

class plQtEngineViewWidget


Additional Inherited Members

- Static Public Member Functions inherited from plQtDocumentWindow
static const plDynamicArray< plQtDocumentWindow * > & GetAllDocumentWindows ()

static plQtDocumentWindow * FindWindowByDocument (const plDocument *pDocument)

- Static Public Attributes inherited from plQtDocumentWindow
static plEvent< const plQtDocumentWindowEvent & > s_Events

static bool s_bAllowRestoreWindowLayout = true
 In 'safe' mode we want to prevent the documents from using the stored window layout state.


Detailed Description

Base class for all document windows that need a connection to the engine process, and might want to render 3D content.

This class has an plEditorEngineConnection object for sending messages between the editor and the engine process. It also allows to embed plQtEngineViewWidget objects into the UI, which enable 3D rendering by the engine process.

Member Function Documentation

◆ InternalRedraw()

void plQtEngineDocumentWindow::InternalRedraw ( )
overrideprotectedvirtual

Reimplemented from plQtDocumentWindow.

The documentation for this class was generated from the following files:
