| virtual void | SerializeComponent (plWorldWriter &inout_stream) const override |
| | Override this to save the current state of the component to the given stream.
|
| |
| virtual void | DeserializeComponent (plWorldReader &inout_stream) override |
| | Override this to load the current state of the component from the given stream.
|
| |
|
void | SetLimitMode (plJoltConstraintLimitMode::Enum mode) |
| | Enables a translational limit on the slider.
|
| |
|
plJoltConstraintLimitMode::Enum | GetLimitMode () const |
| |
|
void | SetLowerLimitDistance (float f) |
| | Sets how far child actor may move in one direction.
|
| |
|
float | GetLowerLimitDistance () const |
| |
|
void | SetUpperLimitDistance (float f) |
| | Sets how far child actor may move in the other direction.
|
| |
|
float | GetUpperLimitDistance () const |
| |
|
void | SetFriction (float f) |
| | Sets how difficult it is to move the child actor.
|
| |
|
float | GetFriction () const |
| |
|
void | SetDriveMode (plJoltConstraintDriveMode::Enum mode) |
| | Enables a drive for the slider to either constantly move or attempt to reach a certain position.
|
| |
|
plJoltConstraintDriveMode::Enum | GetDriveMode () const |
| |
|
void | SetDriveTargetValue (float f) |
| | Sets the drive target position or velocity.
|
| |
|
float | GetDriveTargetValue () const |
| |
|
void | SetDriveStrength (float f) |
| | Sets how much force the drive may use to reach its target.
|
| |
|
float | GetDriveStrength () const |
| |
|
void | BreakConstraint () |
| | Removes the connection between the joined bodies. This cannot be reversed.
|
| |
|
void | SetBreakForce (float value) |
| | If set to larger than zero, the constraint will break when a linear force larger than this acts onto the constraint.
|
| |
|
float | GetBreakForce () const |
| |
|
void | SetBreakTorque (float value) |
| | If set to larger than zero, the constraint will break when a rotational force larger than this acts onto the constraint.
|
| |
|
float | GetBreakTorque () const |
| |
|
void | SetPairCollision (bool value) |
| | If disabled, the two joined actors pass through each other, rather than colliding.
|
| |
|
bool | GetPairCollision () const |
| |
|
void | SetParentActorReference (const char *szReference) |
| |
|
void | SetChildActorReference (const char *szReference) |
| |
|
void | SetChildActorAnchorReference (const char *szReference) |
| |
|
void | SetParentActor (plGameObjectHandle hActor) |
| | Sets which actor to attach the constraint to.
|
| |
|
void | SetChildActor (plGameObjectHandle hActor) |
| | Sets which actor to attach to the constraint.
|
| |
|
void | SetChildActorAnchor (plGameObjectHandle hActor) |
| | Sets an actor as a reference frame so that the constraint can start in a non-default configuration.
|
| |
|
void | SetActors (plGameObjectHandle hActorA, const plTransform &localFrameA, plGameObjectHandle hActorB, const plTransform &localFrameB) |
| | For manually providing actors and local frames to configure the start state. This is for advanced uses.
|
| |
|
void | OnJoltMsgDisconnectConstraints (plJoltMsgDisconnectConstraints &ref_msg) |
| | Forwards to BreakConstraint().
|
| |
| void | SetActiveFlag (bool bEnabled) |
| | Sets the active flag of the component, which affects its active state.
|
| |
| bool | GetActiveFlag () const |
| | Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.
|
| |
| bool | IsActive () const |
| | Checks whether this component is in an active state.
|
| |
| bool | IsActiveAndInitialized () const |
| | Returns whether this component is active and initialized.
|
| |
| bool | IsActiveAndSimulating () const |
| | Whether the component is currently active and simulation has been started as well.
|
| |
|
plComponentManagerBase * | GetOwningManager () |
| | Returns the corresponding manager for this component.
|
| |
|
const plComponentManagerBase * | GetOwningManager () const |
| | Returns the corresponding manager for this component.
|
| |
|
plGameObject * | GetOwner () |
| | Returns the owner game object if the component is attached to one or nullptr.
|
| |
|
const plGameObject * | GetOwner () const |
| | Returns the owner game object if the component is attached to one or nullptr.
|
| |
|
plWorld * | GetWorld () |
| | Returns the corresponding world for this component.
|
| |
|
const plWorld * | GetWorld () const |
| | Returns the corresponding world for this component.
|
| |
|
plComponentHandle | GetHandle () const |
| | Returns a handle to this component.
|
| |
|
plUInt32 | GetUniqueID () const |
| | Returns the unique id for this component.
|
| |
|
void | SetUniqueID (plUInt32 uiUniqueID) |
| | Sets the unique id for this component.
|
| |
|
void | EnsureInitialized () |
| | Ensures that the component is initialized. Must only be called from another component's Initialize callback.
|
| |
|
void | EnsureSimulationStarted () |
| | Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.
|
| |
|
PL_ALWAYS_INLINE bool | SendMessage (plMessage &ref_msg) |
| | Sends a message to this component.
|
| |
|
PL_ALWAYS_INLINE bool | SendMessage (plMessage &ref_msg) const |
| |
|
void | PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const |
| | Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.
|
| |
| virtual bool | HandlesMessage (const plMessage &msg) const |
| | Returns whether the given Message is handled by this component.
|
| |
|
void | SetUserFlag (plUInt8 uiFlagIndex, bool bSet) |
| | Be careful to check which flags may already be in use by base classes.
|
| |
|
bool | GetUserFlag (plUInt8 uiFlagIndex) const |
| | Retrieves a custom flag. Index must be between 0 and 7.
|
| |
|
void | SetCreatedByPrefab () |
| | Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.
|
| |
|
bool | WasCreatedByPrefab () const |
| | Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.
|
| |
|
virtual const plRTTI * | GetDynamicRTTI () const |
| |
|
bool | IsInstanceOf (const plRTTI *pType) const |
| | Returns whether the type of this instance is of the given type or derived from it.
|
| |
|
template<typename T > |
| PL_ALWAYS_INLINE bool | IsInstanceOf () const |
| | Returns whether the type of this instance is of the given type or derived from it.
|
| |
|
| virtual void | CreateContstraintType (JPH::Body *pBody0, JPH::Body *pBody1) override |
| |
| virtual void | ApplySettings () final override |
| |
| virtual bool | ExceededBreakingPoint () final override |
| |
| virtual void | OnSimulationStarted () override |
| | This method is called once for active components, at the start of the next world update, but only when the world is simulated.
|
| |
| virtual void | OnDeactivated () override |
| | This method is called when the component gets deactivated.
|
| |
|
plResult | FindParentBody (plUInt32 &out_uiJoltBodyID, plJoltDynamicActorComponent *&pRbComp) |
| |
|
plResult | FindChildBody (plUInt32 &out_uiJoltBodyID, plJoltDynamicActorComponent *&pRbComp) |
| |
|
plTransform | ComputeParentBodyGlobalFrame () const |
| |
|
plTransform | ComputeChildBodyGlobalFrame () const |
| |
|
void | QueueApplySettings () |
| |
|
| plComponent () |
| | Keep the constructor private or protected in derived classes, so it cannot be called manually.
|
| |
|
bool | IsDynamic () const |
| | Returns whether this component is dynamic and thus can only be attached to dynamic game objects.
|
| |
|
virtual plWorldModuleTypeId | GetTypeId () const =0 |
| |
|
virtual plComponentMode::Enum | GetMode () const =0 |
| |
| virtual void | Initialize () |
| | Can be overridden for basic initialization that depends on a valid hierarchy and position.
|
| |
| virtual void | Deinitialize () |
| | This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.
|
| |
| virtual void | OnActivated () |
| | This method is called when the component gets activated.
|
| |
|
void | EnableUnhandledMessageHandler (bool enable) |
| | By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.
|
| |
| virtual bool | OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) |
| | When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.
|
| |
| virtual bool | OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const |
| | When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.
|
| |
|
bool | IsInitialized () const |
| |
|
bool | IsInitializing () const |
| |
|
bool | IsSimulationStarted () const |
| |
Implements a sliding physics constraint.
The child actor may move along the parent actor along the positive X axis of the constraint. Usually lower and upper limits are used to prevent infinite movement.

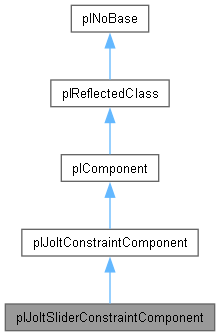

Public Member Functions inherited from plJoltConstraintComponent
