plParticleEmitter Class Reference

Base class for stream spawners that are used by plParticleEmitter's. More...

#include <ParticleEmitter.h>

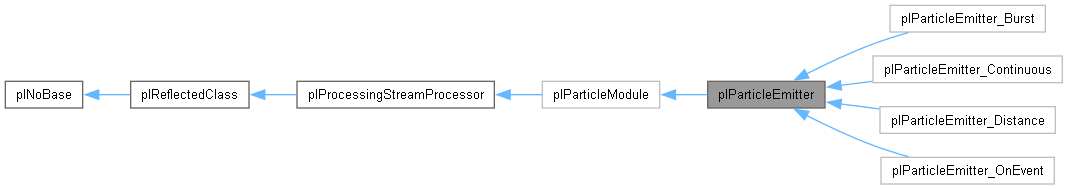

Inheritance diagram for plParticleEmitter:

Protected Member Functions
virtual bool	IsContinuous () const
virtual void	Process (plUInt64 uiNumElements) final override
	The actual method which processes the data, will be called with the number of elements to process.
virtual plUInt32	ComputeSpawnCount (const plTime &tDiff)=0
	Called once per update. Must return how many new particles are to be spawned.
virtual plParticleEmitterState	IsFinished ()=0
	Called before ComputeSpawnCount(). Should return true, if the emitter will never spawn any more particles.
virtual void	ProcessEventQueue (plParticleEventQueue queue)
Protected Member Functions inherited from plParticleModule
virtual void	OnReset ()
	Called by Reset()
void	CreateStream (const char *szName, plProcessingStream::DataType Type, plProcessingStream **ppStream, bool bWillInitializeStream)
virtual plResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.
plRandom &	GetRNG () const
Protected Member Functions inherited from plProcessingStreamProcessor
virtual void	InitializeElements (plUInt64 uiStartIndex, plUInt64 uiNumElements)=0
	This method needs to be implemented in order to initialize new elements to specific values.

Friends
class	plParticleSystemInstance
class	plParticleEmitterFactory

Additional Inherited Members
Public Member Functions inherited from plParticleModule
virtual void	CreateRequiredStreams ()=0
virtual void	QueryOptionalStreams ()
void	Reset (plParticleSystemInstance *pOwner)
virtual void	OnFinalize ()
	Called after everything is set up.
plParticleSystemInstance *	GetOwnerSystem ()
const plParticleSystemInstance *	GetOwnerSystem () const
plParticleEffectInstance *	GetOwnerEffect () const
virtual void	RequestRequiredWorldModulesForCache (plParticleWorldModule *pParticleModule)
	Override this to cache world module pointers for later (through plParticleWorldModule::GetCachedWorldModule()).
Public Member Functions inherited from plProcessingStreamProcessor
	plProcessingStreamProcessor ()
	Base constructor.
virtual	~plProcessingStreamProcessor ()
	Base destructor.
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()
Public Attributes inherited from plProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.
Protected Attributes inherited from plProcessingStreamProcessor
plProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Detailed Description

Base class for stream spawners that are used by plParticleEmitter's.

Member Function Documentation

ComputeSpawnCount()

virtual plUInt32 plParticleEmitter::ComputeSpawnCount ( const plTime & tDiff )

protectedpure virtual

Called once per update. Must return how many new particles are to be spawned.

Implemented in plParticleEmitter_Burst, plParticleEmitter_Continuous, plParticleEmitter_Distance, and plParticleEmitter_OnEvent.

IsFinished()

virtual plParticleEmitterState plParticleEmitter::IsFinished ( )

protectedpure virtual

Called before ComputeSpawnCount(). Should return true, if the emitter will never spawn any more particles.

Implemented in plParticleEmitter_Burst, plParticleEmitter_Continuous, plParticleEmitter_Distance, and plParticleEmitter_OnEvent.

Process()

void plParticleEmitter::Process ( plUInt64 uiNumElements )

finaloverrideprotectedvirtual

The actual method which processes the data, will be called with the number of elements to process.

Implements plProcessingStreamProcessor.

---

The documentation for this class was generated from the following files:

• Code/EnginePlugins/ParticlePlugin/Emitter/ParticleEmitter.h
• Code/EnginePlugins/ParticlePlugin/Emitter/ParticleEmitter.cpp
