plParticleEmitter_Continuous Class Reference

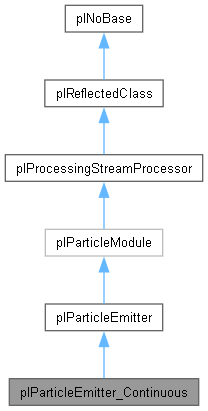

Inheritance diagram for plParticleEmitter_Continuous:

Public Member Functions
virtual void	CreateRequiredStreams () override
Public Member Functions inherited from plParticleModule
virtual void	QueryOptionalStreams ()
void	Reset (plParticleSystemInstance *pOwner)
plParticleSystemInstance *	GetOwnerSystem ()
const plParticleSystemInstance *	GetOwnerSystem () const
plParticleEffectInstance *	GetOwnerEffect () const
virtual void	RequestRequiredWorldModulesForCache (plParticleWorldModule *pParticleModule)
	Override this to cache world module pointers for later (through plParticleWorldModule::GetCachedWorldModule()).
Public Member Functions inherited from plProcessingStreamProcessor
	plProcessingStreamProcessor ()
	Base constructor.
virtual	~plProcessingStreamProcessor ()
	Base destructor.
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plTime	m_StartDelay
plUInt32	m_uiSpawnCountPerSec
plUInt32	m_uiSpawnCountPerSecRange
plTempHashedString	m_sSpawnCountScaleParameter
plCurve1DResourceHandle	m_hCountCurve
plTime	m_CurveDuration
Public Attributes inherited from plProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.

Protected Member Functions
virtual bool	IsContinuous () const override
virtual void	InitializeElements (plUInt64 uiStartIndex, plUInt64 uiNumElements) override
	This method needs to be implemented in order to initialize new elements to specific values.
virtual void	OnFinalize () override
	Called after everything is set up.
virtual plParticleEmitterState	IsFinished () override
	Called before ComputeSpawnCount(). Should return true, if the emitter will never spawn any more particles.
virtual plUInt32	ComputeSpawnCount (const plTime &tDiff) override
	Called once per update. Must return how many new particles are to be spawned.
Protected Member Functions inherited from plParticleEmitter
virtual void	Process (plUInt64 uiNumElements) final override
	The actual method which processes the data, will be called with the number of elements to process.
virtual void	ProcessEventQueue (plParticleEventQueue queue)
Protected Member Functions inherited from plParticleModule
virtual void	OnReset ()
	Called by Reset()
void	CreateStream (const char *szName, plProcessingStream::DataType Type, plProcessingStream **ppStream, bool bWillInitializeStream)
virtual plResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.
plRandom &	GetRNG () const

Protected Attributes
plTime	m_CountCurveTime
plTime	m_TimeSinceRandom
float	m_fCurSpawnPerSec
float	m_fCurSpawnCounter
Protected Attributes inherited from plProcessingStreamProcessor
plProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Member Function Documentation

ComputeSpawnCount()

plUInt32 plParticleEmitter_Continuous::ComputeSpawnCount ( const plTime & tDiff )

overrideprotectedvirtual

Called once per update. Must return how many new particles are to be spawned.

Implements plParticleEmitter.

CreateRequiredStreams()

virtual void plParticleEmitter_Continuous::CreateRequiredStreams ( )

inlineoverridevirtual

Implements plParticleModule.

InitializeElements()

virtual void plParticleEmitter_Continuous::InitializeElements ( plUInt64 uiStartIndex, plUInt64 uiNumElements )

inlineoverrideprotectedvirtual

This method needs to be implemented in order to initialize new elements to specific values.

Implements plProcessingStreamProcessor.

IsContinuous()

virtual bool plParticleEmitter_Continuous::IsContinuous ( ) const

inlineoverrideprotectedvirtual

Reimplemented from plParticleEmitter.

IsFinished()

plParticleEmitterState plParticleEmitter_Continuous::IsFinished ( )

overrideprotectedvirtual

Called before ComputeSpawnCount(). Should return true, if the emitter will never spawn any more particles.

Implements plParticleEmitter.

OnFinalize()

void plParticleEmitter_Continuous::OnFinalize ( )

overrideprotectedvirtual

Called after everything is set up.

Reimplemented from plParticleModule.

---

The documentation for this class was generated from the following files:

• Code/EnginePlugins/ParticlePlugin/Emitter/ParticleEmitter_Continuous.h
• Code/EnginePlugins/ParticlePlugin/Emitter/ParticleEmitter_Continuous.cpp
