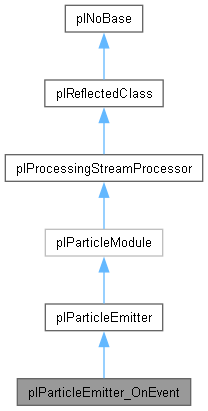

Inheritance diagram for plParticleEmitter_OnEvent:

[legend]

Public Member Functions
virtual void	CreateRequiredStreams () override

Public Member Functions inherited from plParticleModule
virtual void	QueryOptionalStreams ()

void	Reset (plParticleSystemInstance *pOwner)

virtual void	OnFinalize ()
	Called after everything is set up.

plParticleSystemInstance *	GetOwnerSystem ()

const plParticleSystemInstance *	GetOwnerSystem () const

plParticleEffectInstance *	GetOwnerEffect () const

virtual void	RequestRequiredWorldModulesForCache (plParticleWorldModule *pParticleModule)
	Override this to cache world module pointers for later (through plParticleWorldModule::GetCachedWorldModule()).

Public Member Functions inherited from plProcessingStreamProcessor
	plProcessingStreamProcessor ()
	Base constructor.

virtual	~plProcessingStreamProcessor ()
	Base destructor.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plTempHashedString	m_sEventName

plUInt32	m_uiSpawnCountMin = 1

plUInt32	m_uiSpawnCountRange = 0

plTempHashedString	m_sSpawnCountScaleParameter

Public Attributes inherited from plProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.

Protected Member Functions
virtual void	InitializeElements (plUInt64 uiStartIndex, plUInt64 uiNumElements) override
	This method needs to be implemented in order to initialize new elements to specific values.

virtual plParticleEmitterState	IsFinished () override
	Called before ComputeSpawnCount(). Should return true, if the emitter will never spawn any more particles.

virtual plUInt32	ComputeSpawnCount (const plTime &tDiff) override
	Called once per update. Must return how many new particles are to be spawned.

virtual void	ProcessEventQueue (plParticleEventQueue queue) override

Protected Member Functions inherited from plParticleEmitter
virtual bool	IsContinuous () const

virtual void	Process (plUInt64 uiNumElements) final override
	The actual method which processes the data, will be called with the number of elements to process.

Protected Member Functions inherited from plParticleModule
virtual void	OnReset ()
	Called by Reset()

void	CreateStream (const char szName, plProcessingStream::DataType Type, plProcessingStream *ppStream, bool bWillInitializeStream)

virtual plResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.

plRandom &	GetRNG () const

Protected Attributes
bool	m_bSpawn = false

Protected Attributes inherited from plProcessingStreamProcessor
plProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Member Function Documentation

◆ ComputeSpawnCount()

plUInt32 plParticleEmitter_OnEvent::ComputeSpawnCount ( const plTime & tDiff )

overrideprotectedvirtual

Called once per update. Must return how many new particles are to be spawned.

virtual void plParticleEmitter_OnEvent::CreateRequiredStreams ( )

inlineoverridevirtual

virtual void plParticleEmitter_OnEvent::InitializeElements	(	plUInt64	uiStartIndex,
		plUInt64	uiNumElements )

inlineoverrideprotectedvirtual

This method needs to be implemented in order to initialize new elements to specific values.

plParticleEmitterState plParticleEmitter_OnEvent::IsFinished ( )

overrideprotectedvirtual

Called before ComputeSpawnCount(). Should return true, if the emitter will never spawn any more particles.

void plParticleEmitter_OnEvent::ProcessEventQueue ( plParticleEventQueue queue )

overrideprotectedvirtual

Reimplemented from plParticleEmitter.

The documentation for this class was generated from the following files:
