plFallbackGameState Class Reference

plFallbackGameState is an plGameState that can handle existing worlds when no other game state is available. More...

#include <FallbackGameState.h>

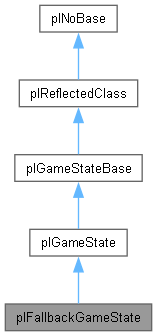

Inheritance diagram for plFallbackGameState:

Public Member Functions
void	EnableSceneSelectionMenu (bool bEnable)
	If disabled, pressing the Windows key won't show an onscreen menu to switch to a different scene.
void	EnableFreeCameras (bool bEnable)
	If disabled, moving around a scene with a free camera won't be possible.
void	EnableAutoSwitchToLoadedScene (bool bEnable)
	If disabled, the game state will not automatically switch to a scene that is being loaded in the background, once it is finished loading. Instead overriding code has to call SwitchToLoadedScene() itself.
virtual void	ProcessInput () override
	Called once per game update. Should handle input updates here.
virtual void	AfterWorldUpdate () override
	Called once each frame after the worlds have been updated.
virtual plGameStatePriority	DeterminePriority (plWorld *pWorld) const override
	Returns plGameStatePriority::Fallback.
virtual void	OnActivation (plWorld *pWorld, const plTransform *pStartPosition) override
	When a game state was chosen, it gets activated through this function.
virtual void	OnDeactivation () override
	Called when the game state is being shut down.
virtual plString	GetStartupSceneFile ()
	Returns the path to the scene file to load at startup. By default this is taken from the command line '-scene' option.
void	SwitchToLoadingScreen ()
	Creates a new world that's used as a temporary loading screen while waiting for loading of another world to finish.
plResult	StartSceneLoading (plStringView sSceneFile, plStringView sPreloadCollection)
	Starts loading a scene in the background.
void	CancelSceneLoading ()
	If a scene is currently being loaded in the background, cancel the loading.
bool	IsLoadingScene () const
	Whether a scene is currently being loaded.
bool	IsInLoadingScreen () const
	Whether the game state currently displays a loading screen. This usually implies that a scene is being loaded as well.
void	SwitchToLoadedScene ()
	Once scene loading has finished successfully, this can be called to switch to that scene.
plStringView	GetActiveSceneName () const
	Returns the name of the plWorld that is currently active.
plStringView	GetLoadingSceneName () const
	Returns the name of the plWorld that is currently being loaded.
Public Member Functions inherited from plGameState
virtual void	ScheduleRendering () override
	Has to call plRenderLoop::AddMainView for all views that need to be rendered.
plCamera *	GetMainCamera ()
	Gives access to the game state's main camera object.
Public Member Functions inherited from plGameStateBase
virtual void	BeforeWorldUpdate ()
	Called once each frame before the worlds are updated.
virtual void	RequestQuit ()
	Call this to signal that a game state requested the application to quit.
bool	WasQuitRequested () const
	Returns whether the game state wants to quit the application.
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Types
enum class	State {   Ok , NoProject , BadProject , NoScene ,   BadScene }

Protected Member Functions
virtual plUniquePtr< plWorld >	CreateLoadingScreenWorld ()
	Called by SwitchToLoadingScreen() to setup a new world that acts as the loading screen while waiting for another scene to finish loading.
virtual void	ConfigureInputActions () override
	Adds custom input actions, if necessary. Unless overridden OnActivation() will call this.
virtual plResult	SpawnPlayer (const plTransform *pStartPosition) override
	Overridable function that may create a player object.
virtual const plCameraComponent *	FindActiveCameraComponent ()
void	FindAvailableScenes ()
bool	DisplayMenu ()
Protected Member Functions inherited from plGameState
	plGameState ()
	This class cannot be instantiated directly.
virtual void	CreateActors ()
	Creates an actor with a default window (plGameStateWindow) adds it to the application.
plUniquePtr< plActor >	CreateXRActor ()
	Creates an XR Actor if XR is configured and available for the project.
plView *	CreateMainView ()
	Creates a default main view.
void	ChangeMainWorld (plWorld *pNewMainWorld)
	Sets m_pMainWorld and updates m_pMainView to use that new world for rendering.
virtual void	ConfigureMainCamera ()
	Sets up m_MainCamera for first use.
virtual plUniquePtr< plWindow >	CreateMainWindow ()
	Override this to modify the default window creation behavior. Called by CreateActors().
virtual plUniquePtr< plWindowOutputTargetGAL >	CreateMainOutputTarget (plWindow *pMainWindow)
	Override this to modify the default output target creation behavior. Called by CreateActors().
virtual void	SetupMainView (plGALSwapChainHandle hSwapChain, plSizeU32 viewportSize)
	Creates a default render view. Unless overridden, OnActivation() will do this for the main window.
virtual void	ConfigureMainWindowInputDevices (plWindow *pWindow)
	Configures available input devices, e.g. sets mouse speed, cursor clipping, etc. Called by CreateActors() with the result of CreateMainWindow().

Protected Attributes
plInt32	m_iActiveCameraComponentIndex
plUniquePtr< plWorld >	m_pActiveWorld
plUniquePtr< plSceneLoadUtility >	m_pSceneToLoad
State	m_State = State::Ok
bool	m_bShowMenu = false
bool	m_bEnableSceneSelectionMenu = true
bool	m_bEnableFreeCameras = true
bool	m_bIsInLoadingScreen = false
bool	m_bAutoSwitchToLoadedScene = true
bool	m_bCheckedForScenes = false
plDynamicArray< plString >	m_AvailableScenes
plUInt32	m_uiSelectedScene = 0
plString	m_sTitleOfLoadingScene
plString	m_sTitleOfActiveScene
Protected Attributes inherited from plGameState
plViewHandle	m_hMainView
plWorld *	m_pMainWorld = nullptr
plCamera	m_MainCamera
bool	m_bStateWantsToQuit = false
bool	m_bXREnabled = false
bool	m_bXRRemotingEnabled = false
plUniquePtr< plDummyXR >	m_pDummyXR
Protected Attributes inherited from plGameStateBase
bool	m_bStateWantsToQuit = false

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

plFallbackGameState is an plGameState that can handle existing worlds when no other game state is available.

This game state returns a priority of 'Fallback' in DeterminePriority() and therefore only takes over when no other game state is available. It implements a simple first person camera to fly around a scene.

This game state cannot be used in stand-alone applications that require the game state to create a new world. It is mainly for plEditor and plPlayer which make sure that a world already exists.

Member Function Documentation

AfterWorldUpdate()

void plFallbackGameState::AfterWorldUpdate ( )

overridevirtual

Called once each frame after the worlds have been updated.

Reimplemented from plGameStateBase.

ConfigureInputActions()

void plFallbackGameState::ConfigureInputActions ( )

overrideprotectedvirtual

Adds custom input actions, if necessary. Unless overridden OnActivation() will call this.

Reimplemented from plGameState.

DeterminePriority()

plGameStatePriority plFallbackGameState::DeterminePriority ( plWorld * pWorld ) const

overridevirtual

Returns plGameStatePriority::Fallback.

Implements plGameStateBase.

EnableFreeCameras()

void plFallbackGameState::EnableFreeCameras

(

bool

bEnable

)

If disabled, moving around a scene with a free camera won't be possible.

Also switching between scene cameras with Page Up/Down will be disabled.

OnActivation()

void plFallbackGameState::OnActivation ( plWorld * pWorld, const plTransform * pStartPosition )

overridevirtual

When a game state was chosen, it gets activated through this function.

Parameters

pWorld	The game state is supposed to operate on the given world. In a stand-alone application pWorld will always be nullptr and the game state is expected to create worlds itself. When run inside the editor, pWorld will already exist and the game state is expected to work on it.
pStartPosition	An optional transform for the 'player object' to start at. Usually nullptr, but may be set by the editor to relocate or create the player object at the given destination.

Reimplemented from plGameState.

OnDeactivation()

void plFallbackGameState::OnDeactivation ( )

overridevirtual

Called when the game state is being shut down.

Reimplemented from plGameState.

ProcessInput()

void plFallbackGameState::ProcessInput ( )

overridevirtual

Called once per game update. Should handle input updates here.

Reimplemented from plGameStateBase.

SpawnPlayer()

plResult plFallbackGameState::SpawnPlayer ( const plTransform * pStartPosition )

overrideprotectedvirtual

Overridable function that may create a player object.

By default called by OnActivation(). The default implementation will search the world for plPlayerStartComponent's and instantiate the given player prefab at one of those locations. If pStartPosition is not nullptr, it will be used as the spawn position for the player prefab, otherwise the location of the plPlayerStartComponent will be used.

Returns PL_SUCCESS if a prefab was spawned, PL_FAILURE if nothing was done.

Reimplemented from plGameState.

StartSceneLoading()

plResult plFallbackGameState::StartSceneLoading	(	plStringView	sSceneFile,
		plStringView	sPreloadCollection )

Starts loading a scene in the background.

If available, a collection can be provided. Resources referenced in the collection will be fully preloaded first and then the scene is loaded. This is the only way to get a proper estimation of loading progress and is necessary to get a smooth start, otherwise the engine will have to load resources on-demand, many of which will be needed during the first frame.

SwitchToLoadingScreen()

void plFallbackGameState::SwitchToLoadingScreen

(

)

Creates a new world that's used as a temporary loading screen while waiting for loading of another world to finish.

Usually this world would be set up in code and would be very quick to create. By default an entirely empty world is created.

---

The documentation for this class was generated from the following files:

• Code/Engine/GameEngine/GameState/FallbackGameState.h
• Code/Engine/GameEngine/GameState/Implementation/FallbackGameState.cpp
