plWindow Class Reference

A simple abstraction for platform specific window creation. More...

#include <Window.h>

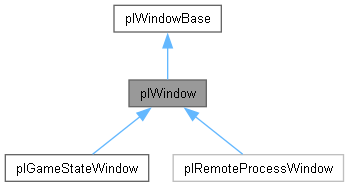

Inheritance diagram for plWindow:

Public Member Functions
	plWindow ()
	Creates empty window instance with standard settings.
virtual	~plWindow ()
	Destroys the window if not already done.
const plWindowCreationDesc &	GetCreationDescription () const
	Returns the currently active description struct.
virtual plSizeU32	GetClientAreaSize () const override
	Returns the size of the client area / ie. the window resolution.
virtual plWindowHandle	GetNativeWindowHandle () const override
	Returns the platform specific window handle.
virtual bool	IsFullscreenWindow (bool bOnlyProperFullscreenMode=false) const override
	Returns whether the window covers an entire monitor.
virtual bool	IsVisible () const override
	Whether the window can potentially be seen by the user. Windows that are minimized or hidden are not visible.
virtual void	AddReference () override
virtual void	RemoveReference () override
virtual void	ProcessWindowMessages () override
	Runs the platform specific message pump.
plResult	Initialize ()
	Creates a new platform specific window with the current settings.
plResult	Initialize (const plWindowCreationDesc &creationDescription)
	Creates a new platform specific window with the given settings.
bool	IsInitialized () const
	Gets if the window is up and running.
plResult	Destroy ()
	Destroys the window.
plResult	Resize (const plSizeU32 &newWindowSize)
	Tries to resize the window. Override OnResize to get the actual new window size.
virtual void	OnResize (const plSizeU32 &newWindowSize)
	Called on window resize messages.
virtual void	OnWindowMove (const plInt32 iNewPosX, const plInt32 iNewPosY)
	Called when the window position is changed. Not possible on all OSes.
virtual void	OnFocus (bool bHasFocus)
	Called when the window gets focus or loses focus.
virtual void	OnVisibleChange (bool bVisible)
	Called when the window gets focus or loses focus.
virtual void	OnClickClose ()
	Called when the close button of the window is clicked. Does nothing by default.
plStandardInputDevice *	GetInputDevice () const
	Returns the input device that is attached to this window and typically provides mouse / keyboard input.

Static Public Member Functions
static plUInt8	GetNextUnusedWindowNumber ()
	Returns a number that can be used as a window number in plWindowCreationDesc.

Protected Attributes
plWindowCreationDesc	m_CreationDescription

Detailed Description

A simple abstraction for platform specific window creation.

Will handle basic message looping. Notable events can be listened to by overriding the corresponding callbacks. You should call ProcessWindowMessages every frame to keep the window responsive. Input messages will not be forwarded automatically. You can do so by overriding the OnWindowMessage function.

Constructor & Destructor Documentation

plWindow()

plWindow::plWindow

(

)

Creates empty window instance with standard settings.

You need to call Initialize to actually create a window.

See also

plWindow::Initialize

Member Function Documentation

AddReference()

virtual void plWindow::AddReference ( )

inlineoverridevirtual

Implements plWindowBase.

GetClientAreaSize()

virtual plSizeU32 plWindow::GetClientAreaSize ( ) const

inlineoverridevirtual

Returns the size of the client area / ie. the window resolution.

Implements plWindowBase.

GetNativeWindowHandle()

plWindowHandle plWindow::GetNativeWindowHandle ( ) const

overridevirtual

Returns the platform specific window handle.

Implements plWindowBase.

GetNextUnusedWindowNumber()

plUInt8 plWindow::GetNextUnusedWindowNumber ( )

static

Returns a number that can be used as a window number in plWindowCreationDesc.

This number just increments every time an plWindow is created. It starts at zero.

Initialize() [1/2]

plResult plWindow::Initialize

(

)

Creates a new platform specific window with the current settings.

Will automatically call plWindow::Destroy if window is already initialized.

See also

plWindow::Destroy, plWindow::Initialize

Todo

Expose icon functionality somehow (101 == IDI_ICON1, see resource.h)

Todo

test & support for multiple windows

Initialize() [2/2]

plResult plWindow::Initialize ( const plWindowCreationDesc & creationDescription )

inline

Creates a new platform specific window with the given settings.

Will automatically call plWindow::Destroy if window is already initialized.

Parameters

creationDescription

Struct with various settings for window creation. Will be saved internally for later lookup.

See also

plWindow::Destroy, plWindow::Initialize

IsFullscreenWindow()

virtual bool plWindow::IsFullscreenWindow ( bool bOnlyProperFullscreenMode = false ) const

inlineoverridevirtual

Returns whether the window covers an entire monitor.

If bOnlyProperFullscreenMode == false, this includes borderless windows.

Implements plWindowBase.

IsVisible()

virtual bool plWindow::IsVisible ( ) const

inlineoverridevirtual

Whether the window can potentially be seen by the user. Windows that are minimized or hidden are not visible.

Implements plWindowBase.

OnClickClose()

virtual void plWindow::OnClickClose ( )

inlinevirtual

Called when the close button of the window is clicked. Does nothing by default.

Reimplemented in plGameStateWindow.

OnResize()

void plWindow::OnResize ( const plSizeU32 & newWindowSize )

virtual

Called on window resize messages.

Parameters

newWindowSize

New window size in pixel.

See also

OnWindowMessage

Reimplemented in plGameStateWindow.

ProcessWindowMessages()

void plWindow::ProcessWindowMessages ( )

overridevirtual

Runs the platform specific message pump.

You should call ProcessWindowMessages every frame to keep the window responsive.

Implements plWindowBase.

RemoveReference()

virtual void plWindow::RemoveReference ( )

inlineoverridevirtual

Implements plWindowBase.

Member Data Documentation

m_CreationDescription

plWindowCreationDesc plWindow::m_CreationDescription

protected

Description at creation time. plWindow will not update this in any method other than Initialize.

Remarks

That means that messages like Resize will also have no effect on this variable.

---

The documentation for this class was generated from the following files:

• Code/Engine/Core/System/Window.h
• Code/Engine/Core/System/Implementation/android/Window_android.inl
• Code/Engine/Core/System/Implementation/glfw/Window_glfw.inl
• Code/Engine/Core/System/Implementation/null/Window_null.inl
• Code/Engine/Core/System/Implementation/uwp/Window_uwp.inl
• Code/Engine/Core/System/Implementation/Win/Window_win32.inl
• Code/Engine/Core/System/Implementation/Window.cpp
