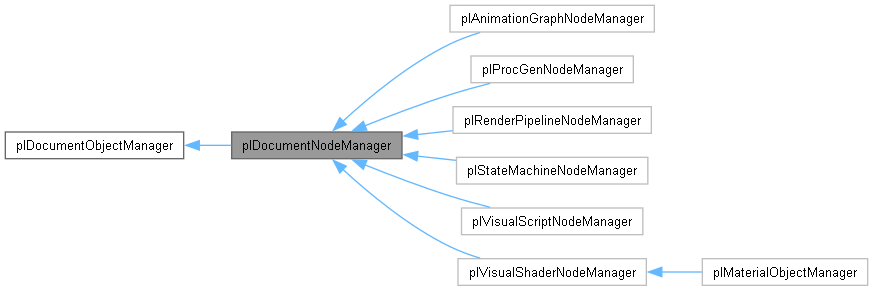

Inheritance diagram for plDocumentNodeManager:

[legend]

Classes
struct	NodeInternal

Public Types
enum class	CanConnectResult { ConnectNever , Connect1to1 , Connect1toN , ConnectNto1 , ConnectNtoN }

Public Member Functions
virtual void	GetNodeCreationTemplates (plDynamicArray< plNodeCreationTemplate > &out_templates) const
	For node documents this function is called instead of GetCreateableTypes to get a list for the node creation menu.

virtual const plRTTI *	GetConnectionType () const

plVec2	GetNodePos (const plDocumentObject *pObject) const

const plConnection &	GetConnection (const plDocumentObject *pObject) const

const plConnection *	GetConnectionIfExists (const plDocumentObject *pObject) const

const plPin *	GetInputPinByName (const plDocumentObject *pObject, plStringView sName) const

const plPin *	GetOutputPinByName (const plDocumentObject *pObject, plStringView sName) const

plArrayPtr< const plUniquePtr< const plPin > >	GetInputPins (const plDocumentObject *pObject) const

plArrayPtr< const plUniquePtr< const plPin > >	GetOutputPins (const plDocumentObject *pObject) const

bool	IsNode (const plDocumentObject *pObject) const

bool	IsConnection (const plDocumentObject *pObject) const

bool	IsDynamicPinProperty (const plDocumentObject pObject, const plAbstractProperty pProp) const

plArrayPtr< const plConnection *const >	GetConnections (const plPin &pin) const

bool	HasConnections (const plPin &pin) const

bool	IsConnected (const plPin &source, const plPin &target) const

plStatus	CanConnect (const plRTTI *pObjectType, const plPin &source, const plPin &target, CanConnectResult &ref_result) const

plStatus	CanDisconnect (const plConnection *pConnection) const

plStatus	CanDisconnect (const plDocumentObject *pObject) const

plStatus	CanMoveNode (const plDocumentObject *pObject, const plVec2 &vPos) const

void	Connect (const plDocumentObject *pObject, const plPin &source, const plPin &target)

void	Disconnect (const plDocumentObject *pObject)

void	MoveNode (const plDocumentObject *pObject, const plVec2 &vPos)

void	AttachMetaDataBeforeSaving (plAbstractObjectGraph &ref_graph) const

void	RestoreMetaDataAfterLoading (const plAbstractObjectGraph &graph, bool bUndoable)

void	GetMetaDataHash (const plDocumentObject *pObject, plUInt64 &inout_uiHash) const

bool	CopySelectedObjects (plAbstractObjectGraph &out_objectGraph) const

bool	PasteObjects (const plArrayPtr< plDocument::PasteInfo > &info, const plAbstractObjectGraph &objectGraph, const plVec2 &vPickedPosition, bool bAllowPickedPosition)

Public Member Functions inherited from plDocumentObjectManager
	plDocumentObjectManager (const plRTTI *pRootType=plDocumentRoot::GetStaticRTTI())

void	SetDocument (plDocument *pDocument)

plDocumentObject *	CreateObject (const plRTTI *pRtti, plUuid guid=plUuid())

void	DestroyObject (plDocumentObject *pObject)

virtual void	DestroyAllObjects ()

virtual void	GetCreateableTypes (plHybridArray< const plRTTI *, 32 > &ref_types) const

void	PatchEmbeddedClassObjects (const plDocumentObject *pObject) const

const plDocumentObject *	GetRootObject () const

plDocumentObject *	GetRootObject ()

const plDocumentObject *	GetObject (const plUuid &guid) const

plDocumentObject *	GetObject (const plUuid &guid)

const plDocument *	GetDocument () const

plDocument *	GetDocument ()

plStatus	SetValue (plDocumentObject *pObject, plStringView sProperty, const plVariant &newValue, plVariant index=plVariant())

plStatus	InsertValue (plDocumentObject *pObject, plStringView sProperty, const plVariant &newValue, plVariant index=plVariant())

plStatus	RemoveValue (plDocumentObject *pObject, plStringView sProperty, plVariant index=plVariant())

plStatus	MoveValue (plDocumentObject *pObject, plStringView sProperty, const plVariant &oldIndex, const plVariant &newIndex)

void	AddObject (plDocumentObject pObject, plDocumentObject pParent, plStringView sParentProperty, plVariant index)

void	RemoveObject (plDocumentObject *pObject)

void	MoveObject (plDocumentObject pObject, plDocumentObject pNewParent, plStringView sParentProperty, plVariant index)

plStatus	CanAdd (const plRTTI pRtti, const plDocumentObject pParent, plStringView sParentProperty, const plVariant &index) const

plStatus	CanRemove (const plDocumentObject *pObject) const

plStatus	CanMove (const plDocumentObject pObject, const plDocumentObject pNewParent, plStringView sParentProperty, const plVariant &index) const

plStatus	CanSelect (const plDocumentObject *pObject) const

bool	IsUnderRootProperty (plStringView sRootProperty, const plDocumentObject *pObject) const

bool	IsUnderRootProperty (plStringView sRootProperty, const plDocumentObject *pParent, plStringView sParentProperty) const

bool	IsTemporary (const plDocumentObject *pObject) const

bool	IsTemporary (const plDocumentObject *pParent, plStringView sParentProperty) const

plSharedPtr< plDocumentObjectManager::Storage >	SwapStorage (plSharedPtr< plDocumentObjectManager::Storage > pNewStorage)

plSharedPtr< plDocumentObjectManager::Storage >	GetStorage ()

Public Attributes
plEvent< const plDocumentNodeManagerEvent & >	m_NodeEvents

Public Attributes inherited from plDocumentObjectManager
plCopyOnBroadcastEvent< const plDocumentObjectStructureEvent & >	m_StructureEvents

plCopyOnBroadcastEvent< const plDocumentObjectPropertyEvent & >	m_PropertyEvents

plEvent< const plDocumentObjectEvent & >	m_ObjectEvents

Protected Member Functions
bool	CanReachNode (const plDocumentObject pSource, const plDocumentObject pTarget, plSet< const plDocumentObject * > &Visited) const
	Tests whether pTarget can be reached from pSource by following the pin connections.

bool	WouldConnectionCreateCircle (const plPin &source, const plPin &target) const
	Returns true if adding a connection between the two pins would create a circular graph.

plResult	ResolveConnection (const plUuid &sourceObject, const plUuid &targetObject, plStringView sourcePin, plStringView targetPin, const plPin &out_pSourcePin, const plPin &out_pTargetPin) const

virtual void	GetDynamicPinNames (const plDocumentObject *pObject, plStringView sPropertyName, plStringView sPinName, plDynamicArray< plString > &out_Names) const

virtual bool	TryRecreatePins (const plDocumentObject *pObject)

Member Enumeration Documentation

◆ CanConnectResult

enum class plDocumentNodeManager::CanConnectResult

strong

Enumerator
ConnectNever	Pins can't be connected.
Connect1to1	Output pin can have 1 outgoing connection, Input pin can have 1 incoming connection.
Connect1toN	Output pin can have 1 outgoing connection, Input pin can have N incoming connections.
ConnectNto1	Output pin can have N outgoing connections, Input pin can have 1 incoming connection.
ConnectNtoN	Output pin can have N outgoing connections, Input pin can have N incoming connections.

Member Function Documentation

◆ GetNodeCreationTemplates()

void plDocumentNodeManager::GetNodeCreationTemplates ( plDynamicArray< plNodeCreationTemplate > & out_templates ) const

virtual

For node documents this function is called instead of GetCreateableTypes to get a list for the node creation menu.

See also: plNodeCreationTemplate

Reimplemented in plVisualScriptNodeManager, and plVisualShaderNodeManager.

The documentation for this class was generated from the following files:

Code/Tools/Libs/ToolsFoundation/NodeObject/DocumentNodeManager.h
Code/Tools/Libs/ToolsFoundation/NodeObject/Implementation/DocumentNodeManager.cpp
