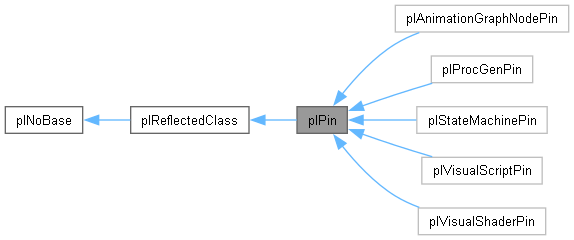

Inheritance diagram for plPin:

[legend]

Public Types
enum class	Type { Input , Output }

enum class	Shape { Circle , Rect , RoundRect , Arrow , Default = Circle }

Public Member Functions
	plPin (Type type, plStringView sName, const plColorGammaUB &color, const plDocumentObject *pObject)

Type	GetType () const

const char *	GetName () const

const plColorGammaUB &	GetColor () const

const plDocumentObject *	GetParent () const

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

The documentation for this class was generated from the following file:
