Public Member Functions | Protected Types | Protected Member Functions | Protected Attributes | List of all members
plSelectionContext Class Reference

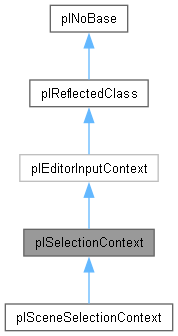

Inheritance diagram for plSelectionContext:
Inheritance graph
[legend]

Public Member Functions

 plSelectionContext (plQtEngineDocumentWindow *pOwnerWindow, plQtEngineViewWidget *pOwnerView, const plCamera *pCamera)

void SetWindowConfig (const plVec2I32 &vViewport)

void SetPickObjectOverride (plDelegate< void(const plDocumentObject *)> pickOverride)
 Adds a delegate that gets called whenever an object is picked, as long as the override is active.

void ResetPickObjectOverride ()

- Public Member Functions inherited from plEditorInputContext
void FocusLost (bool bCancel)

plEditorInput KeyPressEvent (QKeyEvent *e)

plEditorInput KeyReleaseEvent (QKeyEvent *e)

plEditorInput MousePressEvent (QMouseEvent *e)

plEditorInput MouseReleaseEvent (QMouseEvent *e)

plEditorInput MouseMoveEvent (QMouseEvent *e)

plEditorInput WheelEvent (QWheelEvent *e)

void MakeActiveInputContext (bool bActive=true)

bool IsActiveInputContext () const

void SetOwner (plQtEngineDocumentWindow *pOwnerWindow, plQtEngineViewWidget *pOwnerView)

plQtEngineDocumentWindow * GetOwnerWindow () const

plQtEngineViewWidget * GetOwnerView () const

bool GetShortcutsDisabled () const

void SetShortcutsDisabled (bool bDisabled)
 If set to true, the surrounding window will ensure to block all shortcuts and instead send keypress events to the input context.

virtual bool IsPickingSelectedAllowed () const

plVec2I32 SetMouseMode (MouseMode mode)
 Sets how the mouse will act when it reaches the screen border. UpdateMouseMode() must be called on every mouseMoveEvent to update the state.

plVec2I32 UpdateMouseMode (QMouseEvent *e)
 Updates the mouse position. Can always be called but will only have an effect if SetMouseMode() was called with one of the wrap modes.

virtual void UpdateStatusBarText (plQtEngineDocumentWindow *pWindow)

- Public Member Functions inherited from plReflectedClass
virtual const plRTTI * GetDynamicRTTI () const

bool IsInstanceOf (const plRTTI *pType) const
 Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool IsInstanceOf () const
 Returns whether the type of this instance is of the given type or derived from it.


Protected Types

enum class  Mode { None , Single , MarqueeAdd , MarqueeRemove }


Protected Member Functions

virtual plEditorInput DoMousePressEvent (QMouseEvent *e) override

virtual plEditorInput DoMouseReleaseEvent (QMouseEvent *e) override

virtual plEditorInput DoMouseMoveEvent (QMouseEvent *e) override

virtual plEditorInput DoKeyPressEvent (QKeyEvent *e) override

virtual plEditorInput DoKeyReleaseEvent (QKeyEvent *e) override

virtual void OnSetOwner (plQtEngineDocumentWindow *pOwnerWindow, plQtEngineViewWidget *pOwnerView) override

const plDocumentObject * determineObjectToSelect (const plDocumentObject *pickedObject, bool bToggle, bool bDirect) const

virtual void DoFocusLost (bool bCancel) override

virtual void OpenDocumentForPickedObject (const plObjectPickingResult &res) const

virtual void SelectPickedObject (const plObjectPickingResult &res, bool bToggle, bool bDirect) const

void SendMarqueeMsg (QMouseEvent *e, plUInt8 uiWhatToDo)

- Protected Member Functions inherited from plEditorInputContext
virtual plEditorInput DoWheelEvent (QWheelEvent *e)


Protected Attributes

plDelegate< void(const plDocumentObject *)> m_PickObjectOverride

const plCamera * m_pCamera

plVec2I32 m_vViewport

plEngineGizmoHandle m_hMarqueeGizmo

plVec3 m_vMarqueeStartPos

plUInt32 m_uiMarqueeID

bool m_bPressedSpace = false

Mode m_Mode = Mode::None


Additional Inherited Members

- Public Types inherited from plEditorInputContext
enum class  MouseMode { Normal , WrapAtScreenBorders , HideAndWrapAtScreenBorders }
 How the mouse position is updated when the mouse cursor reaches the screen borders. More...

- Static Public Member Functions inherited from plEditorInputContext
static void SetActiveInputContext (plEditorInputContext *pContext)

static bool IsAnyInputContextActive ()

static plEditorInputContext * GetActiveInputContext ()

static void UpdateActiveInputContext ()

- Static Public Member Functions inherited from plNoBase
static const plRTTI * GetStaticRTTI ()


Member Function Documentation

◆ DoFocusLost()

void plSelectionContext::DoFocusLost ( bool bCancel)
overrideprotectedvirtual

Reimplemented from plEditorInputContext.

◆ DoKeyPressEvent()

plEditorInput plSelectionContext::DoKeyPressEvent ( QKeyEvent * e)
overrideprotectedvirtual
Todo
Handle the current cursor (icon) across all active input contexts

Reimplemented from plEditorInputContext.

◆ DoKeyReleaseEvent()

plEditorInput plSelectionContext::DoKeyReleaseEvent ( QKeyEvent * e)
overrideprotectedvirtual

Reimplemented from plEditorInputContext.

◆ DoMouseMoveEvent()

plEditorInput plSelectionContext::DoMouseMoveEvent ( QMouseEvent * e)
overrideprotectedvirtual

Reimplemented from plEditorInputContext.

◆ DoMousePressEvent()

plEditorInput plSelectionContext::DoMousePressEvent ( QMouseEvent * e)
overrideprotectedvirtual

Reimplemented from plEditorInputContext.

◆ DoMouseReleaseEvent()

plEditorInput plSelectionContext::DoMouseReleaseEvent ( QMouseEvent * e)
overrideprotectedvirtual

Reimplemented from plEditorInputContext.

◆ OnSetOwner()

virtual void plSelectionContext::OnSetOwner ( plQtEngineDocumentWindow * pOwnerWindow,
plQtEngineViewWidget * pOwnerView )
inlineoverrideprotectedvirtual

Implements plEditorInputContext.

◆ SetPickObjectOverride()

void plSelectionContext::SetPickObjectOverride ( plDelegate< void(const plDocumentObject *)> pickOverride)

Adds a delegate that gets called whenever an object is picked, as long as the override is active.

It also changes the owner view's cursor to a cross-hair. If something gets picked, the override is called with a non-null object. In case the user presses ESC or the view gets destroyed while the override is active, the delegate is called with nullptr. This indicates that all picking should be stopped and the registered user should clean up.

The documentation for this class was generated from the following files:
