Projects a decal texture onto geometry within a box volume. More...

#include <DecalComponent.h>

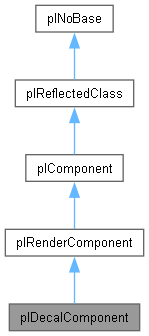

Inheritance diagram for plDecalComponent:

[legend]

Public Member Functions
virtual void	SerializeComponent (plWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (plWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

void	SetExtents (const plVec3 &value)
	Sets the extents of the box inside which to project the decal.

const plVec3 &	GetExtents () const

void	SetSizeVariance (float fVariance)
	The size variance defines how much the size may randomly deviate, such that the decals look different.

float	GetSizeVariance () const

void	SetColor (plColorGammaUB color)
	An additional tint color for the decal.

plColorGammaUB	GetColor () const

void	SetEmissiveColor (plColor color)
	An additional emissive color to make the decal glow.

plColor	GetEmissiveColor () const

void	SetInnerFadeAngle (plAngle fadeAngle)
	At which angle between the decal orientation and the surface it is projected onto, to start fading the decal out.

plAngle	GetInnerFadeAngle () const

void	SetOuterFadeAngle (plAngle fadeAngle)
	At which angle between the decal orientation and the surface it is projected onto, to fully fade out the decal.

plAngle	GetOuterFadeAngle () const

void	SetSortOrder (float fOrder)
	If multiple decals are in the same location, this allows to tweak which one is rendered on top.

float	GetSortOrder () const

void	SetWrapAround (bool bWrapAround)
	Whether the decal projection should use a kind of three-way texture mapping to wrap the image around curved geometry.

bool	GetWrapAround () const

void	SetMapNormalToGeometry (bool bMapNormal)

bool	GetMapNormalToGeometry () const

void	SetDecal (plUInt32 uiIndex, const plDecalResourceHandle &hResource)
	Sets the decal resource to use. If more than one is set, a random one will be chosen.

const plDecalResourceHandle &	GetDecal (plUInt32 uiIndex) const

void	SetProjectionAxis (plEnum< plBasisAxis > projectionAxis)
	Sets the cardinal axis into which the decal projection should be.

plEnum< plBasisAxis >	GetProjectionAxis () const

void	SetApplyOnlyTo (plGameObjectHandle hObject)
	If set, the decal only appears on the given object.

plGameObjectHandle	GetApplyOnlyTo () const

plUInt32	DecalFile_GetCount () const

const char *	DecalFile_Get (plUInt32 uiIndex) const

void	DecalFile_Set (plUInt32 uiIndex, const char *szFile)

void	DecalFile_Insert (plUInt32 uiIndex, const char *szFile)

void	DecalFile_Remove (plUInt32 uiIndex)

Public Member Functions inherited from plRenderComponent
void	TriggerLocalBoundsUpdate ()
	Call this when some value was modified that affects the size of the local bounding box and it should be recomputed.

PL_ALWAYS_INLINE plUInt32	GetUniqueIdForRendering (plUInt32 uiInnerIndex=0, plUInt32 uiInnerIndexShift=24) const
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plVarianceTypeTime	m_FadeOutDelay
	If non-zero, the decal fades out after this time and then vanishes.

plTime	m_FadeOutDuration
	How much time the fade out takes.

plEnum< plOnComponentFinishedAction >	m_OnFinishedAction
	If fade-out is used, the decal may delete itself afterwards.

Protected Member Functions
virtual void	OnSimulationStarted () override
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

virtual void	OnActivated () override
	This method is called when the component gets activated.

virtual plResult	GetLocalBounds (plBoundingBoxSphere &bounds, bool &bAlwaysVisible, plMsgUpdateLocalBounds &msg) override
	Called by plRenderComponent::OnUpdateLocalBounds(). If PL_SUCCESS is returned, bounds and bAlwaysVisible will be integrated into the plMsgUpdateLocalBounds result, otherwise the out values are simply ignored.

void	OnMsgExtractRenderData (plMsgExtractRenderData &msg) const

void	SetApplyToRef (const char *szReference)

void	UpdateApplyTo ()

void	OnTriggered (plMsgComponentInternalTrigger &msg)

void	OnMsgDeleteGameObject (plMsgDeleteGameObject &msg)

void	OnMsgOnlyApplyToObject (plMsgOnlyApplyToObject &msg)

void	OnMsgSetColor (plMsgSetColor &msg)

Protected Member Functions inherited from plRenderComponent
virtual void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

void	OnUpdateLocalBounds (plMsgUpdateLocalBounds &msg)

void	InvalidateCachedRenderData ()

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
plVec3	m_vExtents = plVec3(1.0f)

float	m_fSizeVariance = 0

plColorGammaUB	m_Color = plColor::White

plColor	m_EmissiveColor = plColor::Black

plAngle	m_InnerFadeAngle = plAngle::MakeFromDegree(50.0f)

plAngle	m_OuterFadeAngle = plAngle::MakeFromDegree(80.0f)

float	m_fSortOrder = 0

bool	m_bWrapAround = false

bool	m_bMapNormalToGeometry = false

plUInt8	m_uiRandomDecalIdx = 0xFF

plEnum< plBasisAxis >	m_ProjectionAxis

plHybridArray< plDecalResourceHandle, 1 >	m_Decals

plGameObjectHandle	m_hApplyOnlyToObject

plUInt32	m_uiApplyOnlyToId = 0

plTime	m_StartFadeOutTime

plUInt32	m_uiInternalSortKey = 0

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Additional Inherited Members
Static Public Member Functions inherited from plRenderComponent
static plUInt32	GetUniqueIdForRendering (const plComponent &component, plUInt32 uiInnerIndex=0, plUInt32 uiInnerIndexShift=24)
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

Projects a decal texture onto geometry within a box volume.

This is used to add dirt, scratches, signs and other surface imperfections to geometry. The component uses a box shape to define the position and volume and projection direction. This can be set up in a level to add detail, but it can also be used by dynamic effects such as bullet hits, to visualize the impact. To add variety a prefab may use different textures and vary in size.

Member Function Documentation

◆ DeserializeComponent()

void plDecalComponent::DeserializeComponent ( plWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from plComponent.

◆ GetLocalBounds()

plResult plDecalComponent::GetLocalBounds	(	plBoundingBoxSphere &	ref_bounds,
		bool &	ref_bAlwaysVisible,
		plMsgUpdateLocalBounds &	ref_msg )

overrideprotectedvirtual

Called by plRenderComponent::OnUpdateLocalBounds(). If PL_SUCCESS is returned, bounds and bAlwaysVisible will be integrated into the plMsgUpdateLocalBounds result, otherwise the out values are simply ignored.

Implements plRenderComponent.

◆ OnActivated()

void plDecalComponent::OnActivated ( )

overrideprotectedvirtual

This method is called when the component gets activated.

By default a component is active, but it can be created in an inactive state. In such a case OnActivated() is only called once a component is activated. If a component gets switched between active and inactive at runtime, OnActivated() and OnDeactivated() are called accordingly. In contrast Initialize() and Deinitialize() are only ever called once.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plRenderComponent.

◆ OnSimulationStarted()

void plDecalComponent::OnSimulationStarted ( )

overrideprotectedvirtual

This method is called once for active components, at the start of the next world update, but only when the world is simulated.

This is the one preferred method to setup typical game logic. In a pure game environment there is no practical difference between OnActivated() and OnSimulationStarted(), as OnSimulationStarted() will be called right after OnActivated().

However, when a scene is open inside the editor, there is an important difference: OnActivated() is called once the component was created. OnSimulationStarted() is only called once the game simulation is started inside the editor. As an example, if a component starts a sound in OnActivated(), that sound will play right after the scene has been loaded into the editor. If instead the sound gets started in OnSimulationStarted(), it will only play once the user starts the game mode inside the editor.

Additionally, OnSimulationStarted() is only ever executed once on a component, even if the plWorld pauses and resumes world simulation multiple times. Thus components that should only execute a thing exactly once, will work correctly. In contrast OnActivated() and OnDeactivated() will be executed every time the component's active state is toggled, which could re-execute the same behavior multiple times.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ SerializeComponent()

void plDecalComponent::SerializeComponent ( plWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from plComponent.

◆ SetApplyOnlyTo()

void plDecalComponent::SetApplyOnlyTo ( plGameObjectHandle hObject )

If set, the decal only appears on the given object.

This is typically used to limit the decal to a single dynamic object, such that damage decals don't project onto static geometry and other objects.

◆ SetDecal()

void plDecalComponent::SetDecal	(	plUInt32	uiIndex,
		const plDecalResourceHandle &	hResource )

Sets the decal resource to use. If more than one is set, a random one will be chosen.

Indices that are written to will be created on-demand.

The documentation for this class was generated from the following files:

Code/Engine/RendererCore/Decals/DecalComponent.h
Code/Engine/RendererCore/Decals/Implementation/DecalComponent.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ DeserializeComponent()

◆ GetLocalBounds()

◆ OnActivated()

◆ OnSimulationStarted()

◆ SerializeComponent()

◆ SetApplyOnlyTo()

◆ SetDecal()
