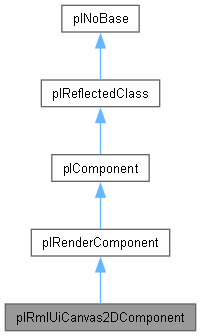

Inheritance diagram for plRmlUiCanvas2DComponent:

[legend]

Public Member Functions
plRmlUiCanvas2DComponent &	operator= (plRmlUiCanvas2DComponent &&rhs)

virtual void	Initialize () override
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

virtual void	OnActivated () override
	This method is called when the component gets activated.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

void	Update ()

void	SetRmlFile (const char *szFile)

const char *	GetRmlFile () const

void	SetRmlResource (const plRmlUiResourceHandle &hResource)

const plRmlUiResourceHandle &	GetRmlResource () const

void	SetOffset (const plVec2I32 &vOffset)

const plVec2I32 &	GetOffset () const

void	SetSize (const plVec2U32 &vSize)

const plVec2U32 &	GetSize () const

void	SetAnchorPoint (const plVec2 &vAnchorPoint)

const plVec2 &	GetAnchorPoint () const

void	SetPassInput (bool bPassInput)

bool	GetPassInput () const

void	SetAutobindBlackboards (bool bAutobind)
	Look for a blackboard component on the owner object and its parent and bind their blackboards during initialization of this component.

bool	GetAutobindBlackboards () const

plUInt32	AddDataBinding (plUniquePtr< plRmlUiDataBinding > &&pDataBinding)

void	RemoveDataBinding (plUInt32 uiDataBindingIndex)

plUInt32	AddBlackboardBinding (const plSharedPtr< plBlackboard > &pBlackboard)
	Adds the given blackboard as data binding. The name of the board is used as model name for the binding.

void	RemoveBlackboardBinding (plUInt32 uiDataBindingIndex)

plRmlUiContext *	GetOrCreateRmlContext ()

plRmlUiContext *	GetRmlContext ()

virtual void	SerializeComponent (plWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (plWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

virtual plResult	GetLocalBounds (plBoundingBoxSphere &ref_bounds, bool &ref_bAlwaysVisible, plMsgUpdateLocalBounds &ref_msg) override
	Called by plRenderComponent::OnUpdateLocalBounds(). If PL_SUCCESS is returned, bounds and bAlwaysVisible will be integrated into the plMsgUpdateLocalBounds result, otherwise the out values are simply ignored.

Public Member Functions inherited from plRenderComponent
void	TriggerLocalBoundsUpdate ()
	Call this when some value was modified that affects the size of the local bounding box and it should be recomputed.

PL_ALWAYS_INLINE plUInt32	GetUniqueIdForRendering (plUInt32 uiInnerIndex=0, plUInt32 uiInnerIndexShift=24) const
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
void	OnMsgExtractRenderData (plMsgExtractRenderData &msg) const

void	OnMsgReload (plMsgRmlUiReload &msg)

void	UpdateCachedValues ()

void	UpdateAutobinding ()

Protected Member Functions inherited from plRenderComponent
void	OnUpdateLocalBounds (plMsgUpdateLocalBounds &msg)

void	InvalidateCachedRenderData ()

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

virtual void	OnSimulationStarted ()
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
plRmlUiResourceHandle	m_hResource

plEvent< constplResourceEvent &, plMutex >::Unsubscriber	m_ResourceEventUnsubscriber

plVec2I32	m_vOffset = plVec2I32::MakeZero()

plVec2U32	m_vSize = plVec2U32::MakeZero()

plVec2	m_vAnchorPoint = plVec2::MakeZero()

plVec2U32	m_vReferenceResolution = plVec2U32::MakeZero()

bool	m_bPassInput = true

bool	m_bAutobindBlackboards = true

plRmlUiContext *	m_pContext = nullptr

plDynamicArray< plUniquePtr< plRmlUiDataBinding > >	m_DataBindings

plDynamicArray< plUInt32 >	m_AutoBindings

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Additional Inherited Members
Static Public Member Functions inherited from plRenderComponent
static plUInt32	GetUniqueIdForRendering (const plComponent &component, plUInt32 uiInnerIndex=0, plUInt32 uiInnerIndexShift=24)
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Member Function Documentation

◆ Deinitialize()

void plRmlUiCanvas2DComponent::Deinitialize ( )

overridevirtual

This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

This function is always called before destruction, even if the component is currently not active. The default implementation checks whether the component is currently active and will ensure OnDeactivated() gets called if necessary. For typical game code, prefer to use OnDeactivated().

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plRenderComponent.

◆ DeserializeComponent()

void plRmlUiCanvas2DComponent::DeserializeComponent ( plWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from plComponent.

◆ GetLocalBounds()

plResult plRmlUiCanvas2DComponent::GetLocalBounds	(	plBoundingBoxSphere &	ref_bounds,
		bool &	ref_bAlwaysVisible,
		plMsgUpdateLocalBounds &	ref_msg )

overridevirtual

Called by plRenderComponent::OnUpdateLocalBounds(). If PL_SUCCESS is returned, bounds and bAlwaysVisible will be integrated into the plMsgUpdateLocalBounds result, otherwise the out values are simply ignored.

Implements plRenderComponent.

◆ Initialize()

void plRmlUiCanvas2DComponent::Initialize ( )

overridevirtual

Can be overridden for basic initialization that depends on a valid hierarchy and position.

All trivial initialization should be done in the constructor. For typical game code, you should prefer to use OnSimulationStarted(). This method is called once for every component, after creation but only at the start of the next world update. Therefore the global position has already been computed and the owner plGameObject is set. Contrary to OnActivated() and OnSimulationStarted(), this function is always called for all components.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ OnActivated()

void plRmlUiCanvas2DComponent::OnActivated ( )

overridevirtual

This method is called when the component gets activated.

By default a component is active, but it can be created in an inactive state. In such a case OnActivated() is only called once a component is activated. If a component gets switched between active and inactive at runtime, OnActivated() and OnDeactivated() are called accordingly. In contrast Initialize() and Deinitialize() are only ever called once.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plRenderComponent.

◆ OnDeactivated()

void plRmlUiCanvas2DComponent::OnDeactivated ( )

overridevirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plRenderComponent.

◆ SerializeComponent()

void plRmlUiCanvas2DComponent::SerializeComponent ( plWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from plComponent.

The documentation for this class was generated from the following files:

Code/EnginePlugins/RmlUiPlugin/Components/RmlUiCanvas2DComponent.h
Code/EnginePlugins/RmlUiPlugin/Components/Implementation/RmlUiCanvas2DComponent.cpp
