plXRInputDevice Class Reference

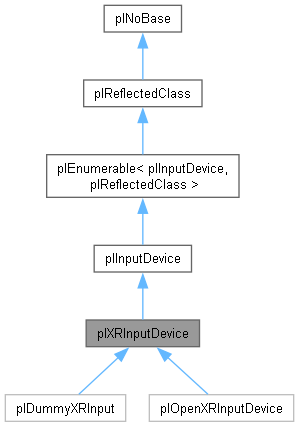

Inheritance diagram for plXRInputDevice:

Public Member Functions
Devices
virtual void	GetDeviceList (plHybridArray< plXRDeviceID, 64 > &out_devices) const =0
	Fills out a list of valid (connected) device IDs.
virtual plXRDeviceID	GetDeviceIDByType (plXRDeviceType::Enum type) const =0
	Returns the deviceID for a specific type of device. If the device is not connected, -1 is returned instead.
virtual const plXRDeviceState &	GetDeviceState (plXRDeviceID deviceID) const =0
	Returns the current device state for a valid device ID.
virtual plString	GetDeviceName (plXRDeviceID deviceID) const =0
	Returns the device name for a valid device ID.
virtual plBitflags< plXRDeviceFeatures >	GetDeviceFeatures (plXRDeviceID deviceID) const =0
	Returns the device features for a valid device ID.
const plXRDeviceEvent &	GetInputEvent ()
	Returns the input event. Allows tracking device addition and removal.
Public Member Functions inherited from plInputDevice
	plInputDevice ()
	Default Constructor.
float	GetInputSlotState (plStringView sSlot) const
	Allows to query current input values for the given slot.
bool	HasDeviceBeenUsedLastFrame () const
	Returns true, if the device was 'used' during the last frame, ie. when it generated input due to some user interaction.
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Attributes
plXRDeviceEvent	m_InputEvents
Protected Attributes inherited from plInputDevice
plMap< plString, float >	m_InputSlotValues
	Stores all the values for all input slots that this device handles.
plUInt32	m_uiLastCharacter
	If this input device type handles character input, it should write the last typed character into this variable. The plInputManager calls RetrieveLastCharacter() to query what the user typed last.
Protected Attributes inherited from plEnumerable< plInputDevice, plReflectedClass >
plEnumerable *	m_pNextInstance

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()
Protected Member Functions inherited from plInputDevice
virtual void	InitializeDevice ()=0
	Override this if you need to do device specific initialization before the first use.
virtual void	UpdateInputSlotValues ()=0
	Override this, if you need to query the state of the hardware to update the input slots.
virtual void	ResetInputSlotValues ()
	Override this, if you need to reset certain input slot values to zero, after the plInputManager is finished with the current frame update.
virtual void	RegisterInputSlots ()=0
	Override this to register all the input slots that this device exposes.
virtual void	UpdateHardwareState (plTime tTimeDifference)
	This function is called once after plInputManager::Update with the same time delta value. It allows to update hardware state, such as the vibration of gamepad motors.
Static Protected Member Functions inherited from plInputDevice
static void	RegisterInputSlot (plStringView sName, plStringView sDefaultDisplayName, plBitflags< plInputSlotFlags > SlotFlags)
	Calls RegisterInputSlot() on the plInputManager and passes the parameters through.

Member Function Documentation

GetDeviceFeatures()

virtual plBitflags< plXRDeviceFeatures > plXRInputDevice::GetDeviceFeatures ( plXRDeviceID deviceID ) const

pure virtual

Returns the device features for a valid device ID.

Implemented in plDummyXRInput, and plOpenXRInputDevice.

GetDeviceIDByType()

virtual plXRDeviceID plXRInputDevice::GetDeviceIDByType ( plXRDeviceType::Enum type ) const

pure virtual

Returns the deviceID for a specific type of device. If the device is not connected, -1 is returned instead.

Implemented in plDummyXRInput, and plOpenXRInputDevice.

GetDeviceList()

virtual void plXRInputDevice::GetDeviceList ( plHybridArray< plXRDeviceID, 64 > & out_devices ) const

pure virtual

Fills out a list of valid (connected) device IDs.

Implemented in plDummyXRInput, and plOpenXRInputDevice.

GetDeviceName()

virtual plString plXRInputDevice::GetDeviceName ( plXRDeviceID deviceID ) const

pure virtual

Returns the device name for a valid device ID.

This returns a human readable name to identify the device. For plXRDeviceType::HMD the name is always 'HMD'. This can be used for e.g. controllers to create custom game input logic or mappings if a certain type of controller is used. Values could be for example: 'Simple Controller', 'Mixed Reality Motion Controller', 'Hand Interaction' etc.

Implemented in plDummyXRInput, and plOpenXRInputDevice.

GetDeviceState()

virtual const plXRDeviceState & plXRInputDevice::GetDeviceState ( plXRDeviceID deviceID ) const

pure virtual

Returns the current device state for a valid device ID.

Implemented in plDummyXRInput, and plOpenXRInputDevice.

---

The documentation for this class was generated from the following file:

• Code/Engine/GameEngine/XR/XRInputDevice.h
