plDummyXRInput Class Reference

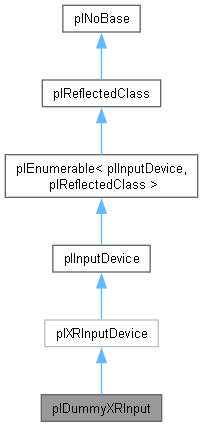

Inheritance diagram for plDummyXRInput:

Public Member Functions
void	GetDeviceList (plHybridArray< plXRDeviceID, 64 > &out_devices) const override
	Fills out a list of valid (connected) device IDs.
plXRDeviceID	GetDeviceIDByType (plXRDeviceType::Enum type) const override
	Returns the deviceID for a specific type of device. If the device is not connected, -1 is returned instead.
const plXRDeviceState &	GetDeviceState (plXRDeviceID deviceID) const override
	Returns the current device state for a valid device ID.
plString	GetDeviceName (plXRDeviceID deviceID) const override
	Returns the device name for a valid device ID.
plBitflags< plXRDeviceFeatures >	GetDeviceFeatures (plXRDeviceID deviceID) const override
	Returns the device features for a valid device ID.
Public Member Functions inherited from plXRInputDevice
const plXRDeviceEvent &	GetInputEvent ()
	Returns the input event. Allows tracking device addition and removal.
Public Member Functions inherited from plInputDevice
	plInputDevice ()
	Default Constructor.
float	GetInputSlotState (plStringView sSlot) const
	Allows to query current input values for the given slot.
bool	HasDeviceBeenUsedLastFrame () const
	Returns true, if the device was 'used' during the last frame, ie. when it generated input due to some user interaction.
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
void	InitializeDevice () override
	Override this if you need to do device specific initialization before the first use.
void	UpdateInputSlotValues () override
	Override this, if you need to query the state of the hardware to update the input slots.
void	RegisterInputSlots () override
	Override this to register all the input slots that this device exposes.
Protected Member Functions inherited from plInputDevice
virtual void	ResetInputSlotValues ()
	Override this, if you need to reset certain input slot values to zero, after the plInputManager is finished with the current frame update.
virtual void	UpdateHardwareState (plTime tTimeDifference)
	This function is called once after plInputManager::Update with the same time delta value. It allows to update hardware state, such as the vibration of gamepad motors.

Protected Attributes
plXRDeviceState	m_DeviceState [1]
Protected Attributes inherited from plXRInputDevice
plXRDeviceEvent	m_InputEvents
Protected Attributes inherited from plInputDevice
plMap< plString, float >	m_InputSlotValues
	Stores all the values for all input slots that this device handles.
plUInt32	m_uiLastCharacter
	If this input device type handles character input, it should write the last typed character into this variable. The plInputManager calls RetrieveLastCharacter() to query what the user typed last.
Protected Attributes inherited from plEnumerable< plInputDevice, plReflectedClass >
plEnumerable *	m_pNextInstance

Friends
class	plDummyXR

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()
Static Protected Member Functions inherited from plInputDevice
static void	RegisterInputSlot (plStringView sName, plStringView sDefaultDisplayName, plBitflags< plInputSlotFlags > SlotFlags)
	Calls RegisterInputSlot() on the plInputManager and passes the parameters through.

Member Function Documentation

GetDeviceFeatures()

plBitflags< plXRDeviceFeatures > plDummyXRInput::GetDeviceFeatures ( plXRDeviceID deviceID ) const

overridevirtual

Returns the device features for a valid device ID.

Implements plXRInputDevice.

GetDeviceIDByType()

plXRDeviceID plDummyXRInput::GetDeviceIDByType ( plXRDeviceType::Enum type ) const

overridevirtual

Returns the deviceID for a specific type of device. If the device is not connected, -1 is returned instead.

Implements plXRInputDevice.

GetDeviceList()

void plDummyXRInput::GetDeviceList ( plHybridArray< plXRDeviceID, 64 > & out_devices ) const

overridevirtual

Fills out a list of valid (connected) device IDs.

Implements plXRInputDevice.

GetDeviceName()

plString plDummyXRInput::GetDeviceName ( plXRDeviceID deviceID ) const

overridevirtual

Returns the device name for a valid device ID.

This returns a human readable name to identify the device. For plXRDeviceType::HMD the name is always 'HMD'. This can be used for e.g. controllers to create custom game input logic or mappings if a certain type of controller is used. Values could be for example: 'Simple Controller', 'Mixed Reality Motion Controller', 'Hand Interaction' etc.

Implements plXRInputDevice.

GetDeviceState()

const plXRDeviceState & plDummyXRInput::GetDeviceState ( plXRDeviceID deviceID ) const

overridevirtual

Returns the current device state for a valid device ID.

Implements plXRInputDevice.

InitializeDevice()

void plDummyXRInput::InitializeDevice ( )

overrideprotectedvirtual

Override this if you need to do device specific initialization before the first use.

Implements plInputDevice.

RegisterInputSlots()

void plDummyXRInput::RegisterInputSlots ( )

overrideprotectedvirtual

Override this to register all the input slots that this device exposes.

This is called once during initialization. It needs to call RegisterInputSlot() once for every input slot that this device exposes to the system.

Implements plInputDevice.

UpdateInputSlotValues()

void plDummyXRInput::UpdateInputSlotValues ( )

overrideprotectedvirtual

Override this, if you need to query the state of the hardware to update the input slots.

Note

This function might be called multiple times before ResetInputSlotValues() is called. This will be the case when plInputManager::PollHardware is used to make more frequent hardware updates than input is actually processed. Just make sure to always accumulate delta values (such as mouse move values) and don't expect ResetInputSlotValues() to be called in tandem with this function and it will be fine.

Implements plInputDevice.

---

The documentation for this class was generated from the following files:

• Code/Engine/GameEngine/XR/DummyXR.h
• Code/Engine/GameEngine/XR/Implementation/DummyXR.cpp
