Audio System Component that triggers an audio event. More...

#include <AudioTriggerComponent.h>

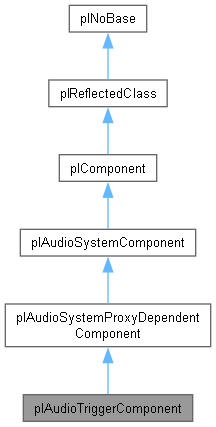

Inheritance diagram for plAudioTriggerComponent:

[legend]

Public Member Functions
void	Initialize () override
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

void	OnActivated () override
	This method is called when the component gets activated.

void	OnSimulationStarted () override
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

void	OnDeactivated () override
	This method is called when the component gets deactivated.

void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

void	SerializeComponent (plWorldWriter &stream) const override
	Override this to save the current state of the component to the given stream.

void	DeserializeComponent (plWorldReader &stream) override
	Override this to load the current state of the component from the given stream.

void	SetOcclusionCollisionLayer (plUInt8 uiCollisionLayer)
	Sets the collision layer on which rays should hit when calculating obstruction and occlusion.

plUInt8	GetOcclusionCollisionLayer () const
	Gets the current occlusion collision layer.

void	SetPlayTrigger (plString sName)
	Sets the name of the play trigger. If the provided name is the same than the current name, nothing will happen.

const plString &	GetPlayTrigger () const
	Gets the name of the current play trigger.

void	SetStopTrigger (plString sName)
	Sets the name of the stop trigger. If the provided name is the same than the current name, nothing will happen.

const plString &	GetStopTrigger () const
	Gets the name of the current stop trigger.

const plEnum< plAudioSystemTriggerState > &	GetState () const
	Gets the internal state of the play trigger.

bool	IsLoading () const
	Returns whether the play trigger is currently being loaded.

bool	IsReady () const
	Returns whether the play trigger is ready to be activated.

bool	IsStarting () const
	Returns whether the play trigger is being activated.

bool	IsPlaying () const
	Returns whether the play trigger has been activated and is currently playing.

bool	IsStopping () const
	Returns whether the event is being stopped, either by activating the stop trigger if defined, or by stopping the event directly.

bool	IsStopped () const
	Returns whether the play trigger has been activated and is currently stopped.

bool	IsUnloading () const
	Returns whether the play trigger is being unloaded.

void	Play (bool bSync=false)
	Activates the play trigger. If the play trigger was not loaded on initialization, this will load the play trigger the first time it's called.

void	Stop (bool bSync=false)
	If a stop trigger is defined, this will activate it. Otherwise, the triggered event will be stopped.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Protected Member Functions inherited from plAudioSystemProxyDependentComponent
plAudioSystemDataID	GetEntityId () const
	Get the ID of the entity referenced by the proxy.

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes inherited from plAudioSystemProxyDependentComponent
class plAudioProxyComponent *	m_pProxyComponent {nullptr}

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Detailed Description

Audio System Component that triggers an audio event.

This component takes as properties a mandatory play trigger an an optional stop trigger. The user should specify the name of the triggers as defined by the available audio controls loaded in the audio system. If the stop trigger is left empty, the component will send a StopEvent request to the audio system, that means the event triggered by the play trigger should be stoppable that way.

The component also exposes a property that allows to access the internal state through scripting.

Member Function Documentation

◆ Deinitialize()

void plAudioTriggerComponent::Deinitialize ( )

overridevirtual

This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

This function is always called before destruction, even if the component is currently not active. The default implementation checks whether the component is currently active and will ensure OnDeactivated() gets called if necessary. For typical game code, prefer to use OnDeactivated().

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plAudioSystemProxyDependentComponent.

◆ DeserializeComponent()

void plAudioTriggerComponent::DeserializeComponent ( plWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from plComponent.

◆ GetState()

const plEnum< plAudioSystemTriggerState > & plAudioTriggerComponent::GetState ( ) const

nodiscard

Gets the internal state of the play trigger.

Returns: An plEnum with the value of the play trigger state.

◆ Initialize()

void plAudioTriggerComponent::Initialize ( )

overridevirtual

Can be overridden for basic initialization that depends on a valid hierarchy and position.

All trivial initialization should be done in the constructor. For typical game code, you should prefer to use OnSimulationStarted(). This method is called once for every component, after creation but only at the start of the next world update. Therefore the global position has already been computed and the owner plGameObject is set. Contrary to OnActivated() and OnSimulationStarted(), this function is always called for all components.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plAudioSystemProxyDependentComponent.

◆ IsLoading()

bool plAudioTriggerComponent::IsLoading ( ) const

nodiscard

Returns whether the play trigger is currently being loaded.

Returns: True if the play trigger is currently being loaded, false otherwise.

◆ IsPlaying()

bool plAudioTriggerComponent::IsPlaying ( ) const

nodiscard

Returns whether the play trigger has been activated and is currently playing.

Returns: True if the play trigger is currently playing, false otherwise.

◆ IsReady()

bool plAudioTriggerComponent::IsReady ( ) const

nodiscard

Returns whether the play trigger is ready to be activated.

Returns: True if the play trigger is ready to be activated, false otherwise.

◆ IsStarting()

bool plAudioTriggerComponent::IsStarting ( ) const

nodiscard

Returns whether the play trigger is being activated.

Returns: True if the play trigger is being activated, false otherwise.

◆ IsStopped()

bool plAudioTriggerComponent::IsStopped ( ) const

nodiscard

Returns whether the play trigger has been activated and is currently stopped.

Returns: True if the play trigger is currently stopped, false otherwise.

◆ IsStopping()

bool plAudioTriggerComponent::IsStopping ( ) const

nodiscard

Returns whether the event is being stopped, either by activating the stop trigger if defined, or by stopping the event directly.

Returns: True if the event is being stopped, false otherwise.

◆ IsUnloading()

bool plAudioTriggerComponent::IsUnloading ( ) const

nodiscard

Returns whether the play trigger is being unloaded.

Returns: True if the play trigger is currently being unloaded, false otherwise.

◆ OnActivated()

void plAudioTriggerComponent::OnActivated ( )

overridevirtual

This method is called when the component gets activated.

By default a component is active, but it can be created in an inactive state. In such a case OnActivated() is only called once a component is activated. If a component gets switched between active and inactive at runtime, OnActivated() and OnDeactivated() are called accordingly. In contrast Initialize() and Deinitialize() are only ever called once.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ OnDeactivated()

void plAudioTriggerComponent::OnDeactivated ( )

overridevirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ OnSimulationStarted()

void plAudioTriggerComponent::OnSimulationStarted ( )

overridevirtual

This method is called once for active components, at the start of the next world update, but only when the world is simulated.

This is the one preferred method to setup typical game logic. In a pure game environment there is no practical difference between OnActivated() and OnSimulationStarted(), as OnSimulationStarted() will be called right after OnActivated().

However, when a scene is open inside the editor, there is an important difference: OnActivated() is called once the component was created. OnSimulationStarted() is only called once the game simulation is started inside the editor. As an example, if a component starts a sound in OnActivated(), that sound will play right after the scene has been loaded into the editor. If instead the sound gets started in OnSimulationStarted(), it will only play once the user starts the game mode inside the editor.

Additionally, OnSimulationStarted() is only ever executed once on a component, even if the plWorld pauses and resumes world simulation multiple times. Thus components that should only execute a thing exactly once, will work correctly. In contrast OnActivated() and OnDeactivated() will be executed every time the component's active state is toggled, which could re-execute the same behavior multiple times.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plAudioSystemProxyDependentComponent.

◆ plAudioSystemComponentIsAbstract()

void plAudioTriggerComponent::plAudioSystemComponentIsAbstract ( )

inlineoverrideprivatevirtual

Implements plAudioSystemComponent.

◆ Play()

void plAudioTriggerComponent::Play ( bool bSync = false )

Activates the play trigger. If the play trigger was not loaded on initialization, this will load the play trigger the first time it's called.

Parameters

bSync Whether the request should be executed synchronously or asynchronously.

◆ SerializeComponent()

void plAudioTriggerComponent::SerializeComponent ( plWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from plComponent.

◆ SetPlayTrigger()

void plAudioTriggerComponent::SetPlayTrigger ( plString sName )

Sets the name of the play trigger. If the provided name is the same than the current name, nothing will happen.

When setting a new name, the current event will be stopped if playing, but the new event will not be triggered automatically.

Parameters

sName The name of the play trigger.

◆ SetStopTrigger()

void plAudioTriggerComponent::SetStopTrigger ( plString sName )

Sets the name of the stop trigger. If the provided name is the same than the current name, nothing will happen.

Parameters

sName The name of the stop trigger.

◆ Stop()

void plAudioTriggerComponent::Stop ( bool bSync = false )

If a stop trigger is defined, this will activate it. Otherwise, the triggered event will be stopped.

Parameters

bSync Whether the request should be executed synchronously or asynchronously.

The documentation for this class was generated from the following files:

Code/EnginePlugins/AudioSystem/AudioSystemPlugin/Components/AudioTriggerComponent.h
Code/EnginePlugins/AudioSystem/AudioSystemPlugin/Implementation/Components/AudioTriggerComponent.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ Deinitialize()

◆ DeserializeComponent()

◆ GetState()

◆ Initialize()

◆ IsLoading()

◆ IsPlaying()

◆ IsReady()

◆ IsStarting()

◆ IsStopped()

◆ IsStopping()

◆ IsUnloading()

◆ OnActivated()

◆ OnDeactivated()

◆ OnSimulationStarted()

◆ plAudioSystemComponentIsAbstract()

◆ Play()

◆ SerializeComponent()

◆ SetPlayTrigger()

◆ SetStopTrigger()

◆ Stop()
