Component that represent an audio entity in the scene graph. More...

#include <AudioProxyComponent.h>

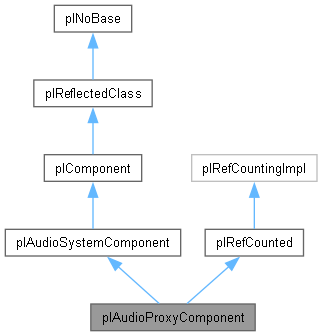

Inheritance diagram for plAudioProxyComponent:

[legend]

Public Member Functions
void	Initialize () override
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

plAudioSystemDataID	GetEntityId () const
	Gets the assigned Audio System Entity ID to this game object.

void	Unregister (bool bForce=false) const
	Unregisters this proxy from the audio system.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

virtual void	SerializeComponent (plWorldWriter &inout_stream) const
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (plWorldReader &inout_stream)
	Override this to load the current state of the component from the given stream.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Member Functions inherited from plRefCounted
virtual	~plRefCounted ()=default
	Adds a virtual destructor.

Public Member Functions inherited from plRefCountingImpl
	plRefCountingImpl ()=default
	Constructor.

	plRefCountingImpl (const plRefCountingImpl &rhs)

void	operator= (const plRefCountingImpl &rhs)

plInt32	AddRef () const
	Increments the reference counter. Returns the new reference count.

plInt32	ReleaseRef () const
	Decrements the reference counter. Returns the new reference count.

bool	IsReferenced () const
	Returns true if the reference count is greater than 0, false otherwise.

plInt32	GetRefCount () const
	Returns the current reference count.

Protected Member Functions
void	Update ()

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

virtual void	OnActivated ()
	This method is called when the component gets activated.

virtual void	OnDeactivated ()
	This method is called when the component gets deactivated.

virtual void	OnSimulationStarted ()
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Friends
class	plAudioSystemProxyDependentComponent

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Detailed Description

Component that represent an audio entity in the scene graph.

Audio proxies captures position and orientation data from the owner game object and pass them to the audio system to update entity transformation.

Audio components can't work without an audio proxy, since it is used to identify which entity has made a request. With that fact, exactly one audio proxy component should be present in the game object willing to send audio requests. If no audio proxy component is detected at the initialization of the scene, one will be created automatically, hence, it is not required to add this component manually in the editor.

Member Function Documentation

◆ Deinitialize()

void plAudioProxyComponent::Deinitialize ( )

overridevirtual

This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

This function is always called before destruction, even if the component is currently not active. The default implementation checks whether the component is currently active and will ensure OnDeactivated() gets called if necessary. For typical game code, prefer to use OnDeactivated().

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ GetEntityId()

plAudioSystemDataID plAudioProxyComponent::GetEntityId ( ) const

nodiscard

Gets the assigned Audio System Entity ID to this game object.

Entity ids are automatically assigned at the start of the simulation. They may change each time the game is simulated. You should not assert that the same ID will always be assigned to the same game object every time.

◆ Initialize()

void plAudioProxyComponent::Initialize ( )

overridevirtual

Can be overridden for basic initialization that depends on a valid hierarchy and position.

All trivial initialization should be done in the constructor. For typical game code, you should prefer to use OnSimulationStarted(). This method is called once for every component, after creation but only at the start of the next world update. Therefore the global position has already been computed and the owner plGameObject is set. Contrary to OnActivated() and OnSimulationStarted(), this function is always called for all components.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ plAudioSystemComponentIsAbstract()

void plAudioProxyComponent::plAudioSystemComponentIsAbstract ( )

inlineoverrideprivatevirtual

Implements plAudioSystemComponent.

◆ Unregister()

void plAudioProxyComponent::Unregister ( bool bForce = false ) const

Unregisters this proxy from the audio system.

Note that the proxy will be unregistered only if it is not referenced anymore, unless bForce is set to true.

Parameters

bForce Indicates if the entity should be unregistered even if some audio components depends on it.

The documentation for this class was generated from the following files:

Code/EnginePlugins/AudioSystem/AudioSystemPlugin/Components/AudioProxyComponent.h
Code/EnginePlugins/AudioSystem/AudioSystemPlugin/Implementation/Components/AudioProxyComponent.cpp
