plInputComponent raises this event when it detects input More...

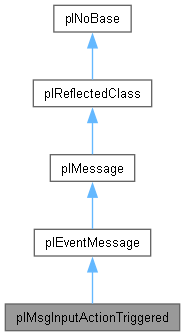

Inheritance diagram for plMsgInputActionTriggered:

[legend]

Public Member Functions
	PL_DECLARE_MESSAGE_TYPE (plMsgInputActionTriggered, plEventMessage)

Public Member Functions inherited from plEventMessage
	PL_DECLARE_MESSAGE_TYPE (plEventMessage, plMessage)

PL_ALWAYS_INLINE void	FillFromSenderComponent (const plComponent *pSenderComponent)

Public Member Functions inherited from plMessage
virtual plInt32	GetSortingKey () const
	Derived message types can override this method to influence sorting order. Smaller keys are processed first.

PL_ALWAYS_INLINE plMessageId	GetId () const
	Returns the id for this message type.

PL_ALWAYS_INLINE plUInt16	GetSize () const
	Returns the size in byte of this message.

PL_ALWAYS_INLINE plUInt64	GetHash () const
	Calculates a hash of the message.

virtual void	Serialize (plStreamWriter &inout_stream) const
	Implement this for efficient transmission across process boundaries (e.g. network transfer etc.)

virtual void	Deserialize (plStreamReader &inout_stream, plUInt8 uiTypeVersion)

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plHashedString	m_sInputAction
	The input action string.

plEnum< plTriggerState >	m_TriggerState
	The 'trigger state', depending on the key state and the configuration on the plInputComponent.

float	m_fKeyPressValue
	For analog keys, how much they are pressed. Typically between 0 and 1.

Public Attributes inherited from plEventMessage
plGameObjectHandle	m_hSenderObject

plComponentHandle	m_hSenderComponent

Additional Inherited Members
Static Public Member Functions inherited from plMessage
static void	PackageForTransfer (const plMessage &msg, plStreamWriter &inout_stream)
	Writes msg to stream in such a way that ReplicatePackedMessage() can restore it even in another process.

static plUniquePtr< plMessage >	ReplicatePackedMessage (plStreamReader &inout_stream)
	Restores a message that was written by PackageForTransfer()

Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Protected Member Functions inherited from plMessage
	plMessage (size_t messageSize)

Static Protected Member Functions inherited from plMessage
static PL_ALWAYS_INLINE plMessageId	GetNextMsgId ()

Protected Attributes inherited from plMessage
plMessageId	m_Id

plUInt16	m_uiSize

Static Protected Attributes inherited from plMessage
static plMessageId	s_NextMsgId = 0

Detailed Description

plInputComponent raises this event when it detects input

The documentation for this struct was generated from the following file:
