Proxy long ops represent a long operation on the editor side. More...

#include <LongOps.h>

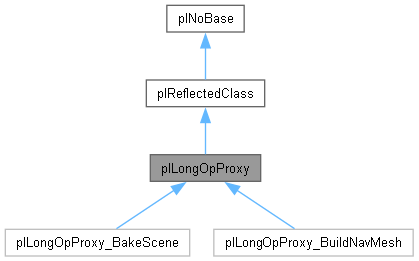

Inheritance diagram for plLongOpProxy:

[legend]

Public Member Functions
virtual void	InitializeRegistered (const plUuid &documentGuid, const plUuid &componentGuid)
	Called once by plLongOpControllerManager::RegisterLongOp() to inform the proxy to which plDocument and component (plDocumentObject) it is linked.

virtual const char *	GetDisplayName () const =0
	Called by the plQtLongOpsPanel to determine the display string to be shown in the UI.

virtual void	GetReplicationInfo (plStringBuilder &out_sReplicationOpType, plStreamWriter &inout_config)=0
	Called every time the long op shall be executed.

virtual void	Finalize (plResult result, const plDataBuffer &resultData)
	Called once the corresponding plLongOpWorker has finished.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

Proxy long ops represent a long operation on the editor side.

Proxy long ops have little functionality other than naming which plLongOpWorker to execute in the engine process and to feed it with the necessary parameters. Since the proxy long op runs in the editor process, it may access plDocumentObject's and extract data from them.

Member Function Documentation

◆ Finalize()

virtual void plLongOpProxy::Finalize	(	plResult	result,
		const plDataBuffer &	resultData )

inlinevirtual

Called once the corresponding plLongOpWorker has finished.

Parameters

result	Whether the operation succeeded or failed (e.g. via user cancellation).
resultData	Optional data written by plLongOpWorker::Execute().

Reimplemented in plLongOpProxy_BakeScene, and plLongOpProxy_BuildNavMesh.

◆ GetDisplayName()

virtual const char * plLongOpProxy::GetDisplayName ( ) const

pure virtual

Called by the plQtLongOpsPanel to determine the display string to be shown in the UI.

Implemented in plLongOpProxy_BakeScene, and plLongOpProxy_BuildNavMesh.

◆ GetReplicationInfo()

virtual void plLongOpProxy::GetReplicationInfo	(	plStringBuilder &	out_sReplicationOpType,
		plStreamWriter &	inout_config )

pure virtual

Called every time the long op shall be executed.

Parameters

out_sReplicationOpType	must name the plLongOpWorker that shall be executed in the engine process.
config	can be optionally written to. The data is transmitted to the plLongOpWorker on the other side and fed to it in plLongOpWorker::InitializeExecution().

Implemented in plLongOpProxy_BakeScene, and plLongOpProxy_BuildNavMesh.

◆ InitializeRegistered()

virtual void plLongOpProxy::InitializeRegistered	(	const plUuid &	documentGuid,
		const plUuid &	componentGuid )

inlinevirtual

Called once by plLongOpControllerManager::RegisterLongOp() to inform the proxy to which plDocument and component (plDocumentObject) it is linked.
