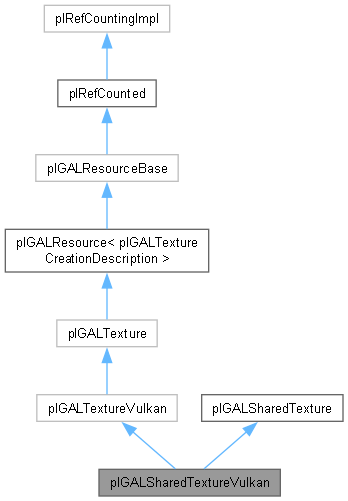

Inheritance diagram for plGALSharedTextureVulkan:

[legend]

Protected Member Functions
	plGALSharedTextureVulkan (const plGALTextureCreationDescription &Description, plEnum< plGALSharedTextureType > sharedType, plGALPlatformSharedHandle hSharedHandle)

virtual plResult	InitPlatform (plGALDevice *pDevice, plArrayPtr< plGALSystemMemoryDescription > pInitialData) override

virtual plResult	DeInitPlatform (plGALDevice *pDevice) override

virtual plGALPlatformSharedHandle	GetSharedHandle () const override
	Returns the handle that can be used to open this texture on another device / process. Call plGALDevice::OpenSharedTexture to do so.

virtual void	WaitSemaphoreGPU (plUInt64 uiValue) const override
	Before the current render pipeline is executed, the GPU will wait for the semaphore to have the given value.

virtual void	SignalSemaphoreGPU (plUInt64 uiValue) const override
	Once the current render pipeline is done on the GPU, the semaphore will be signaled with the given value.

Protected Member Functions inherited from plGALTextureVulkan
	plGALTextureVulkan (const plGALTextureCreationDescription &Description, bool bLinearCPU, bool bStaging)

virtual void	SetDebugNamePlatform (const char *szName) const override

plResult	CreateStagingBuffer (const vk::ImageCreateInfo &createInfo)

Protected Member Functions inherited from plGALTexture
	plGALTexture (const plGALTextureCreationDescription &Description)

Protected Attributes
plEnum< plGALSharedTextureType >	m_SharedType = plGALSharedTextureType::None

plGALPlatformSharedHandle	m_hSharedHandle

vk::Semaphore	m_SharedSemaphore

Protected Attributes inherited from plGALTextureVulkan
vk::Image	m_image

vk::Format	m_imageFormat = vk::Format::eUndefined

vk::ImageLayout	m_preferredLayout = vk::ImageLayout::eUndefined

vk::PipelineStageFlags	m_stages = {}

vk::AccessFlags	m_access = {}

plVulkanAllocation	m_alloc = nullptr

plVulkanAllocationInfo	m_allocInfo

plGALDeviceVulkan *	m_pDevice = nullptr

bool	m_bLinearCPU = false

bool	m_bStaging = false

StagingMode	m_stagingMode = StagingMode::None

plGALTextureHandle	m_hStagingTexture

plGALBufferHandle	m_hStagingBuffer

Protected Attributes inherited from plGALTexture
plGALTextureResourceViewHandle	m_hDefaultResourceView

plGALRenderTargetViewHandle	m_hDefaultRenderTargetView

plHashTable< plUInt32, plGALTextureResourceViewHandle >	m_ResourceViews

plHashTable< plUInt32, plGALRenderTargetViewHandle >	m_RenderTargetViews

plHashTable< plUInt32, plGALTextureUnorderedAccessViewHandle >	m_UnorderedAccessViews

Protected Attributes inherited from plGALResource< plGALTextureCreationDescription >
const plGALTextureCreationDescription	m_Description

Friends
class	plGALDeviceVulkan

class	plMemoryUtils

Additional Inherited Members
Public Types inherited from plGALTextureVulkan
enum class	StagingMode : plUInt8 { None , Buffer , Texture , TextureAndBuffer }

Public Member Functions inherited from plGALTextureVulkan
PL_ALWAYS_INLINE vk::Image	GetImage () const

PL_ALWAYS_INLINE vk::Format	GetImageFormat () const

PL_ALWAYS_INLINE vk::ImageLayout	GetPreferredLayout () const

PL_ALWAYS_INLINE vk::ImageLayout	GetPreferredLayout (vk::ImageLayout targetLayout) const

PL_ALWAYS_INLINE vk::PipelineStageFlags	GetUsedByPipelineStage () const

PL_ALWAYS_INLINE vk::AccessFlags	GetAccessMask () const

PL_ALWAYS_INLINE plVulkanAllocation	GetAllocation () const

PL_ALWAYS_INLINE const plVulkanAllocationInfo &	GetAllocationInfo () const

PL_ALWAYS_INLINE bool	IsLinearLayout () const

vk::Extent3D	GetMipLevelSize (plUInt32 uiMipLevel) const

vk::ImageSubresourceRange	GetFullRange () const

vk::ImageAspectFlags	GetAspectMask () const

PL_ALWAYS_INLINE StagingMode	GetStagingMode () const

PL_ALWAYS_INLINE plGALTextureHandle	GetStagingTexture () const

PL_ALWAYS_INLINE plGALBufferHandle	GetStagingBuffer () const

plUInt32	ComputeSubResourceOffsets (plDynamicArray< SubResourceOffset > &out_subResourceOffsets) const

Public Member Functions inherited from plGALResource< plGALTextureCreationDescription >
PL_ALWAYS_INLINE	plGALResource (const plGALTextureCreationDescription &description)

PL_ALWAYS_INLINE const plGALTextureCreationDescription &	GetDescription () const

Public Member Functions inherited from plGALResourceBase
void	SetDebugName (const char *szName) const

virtual const plGALResourceBase *	GetParentResource () const

Public Member Functions inherited from plRefCounted
virtual	~plRefCounted ()=default
	Adds a virtual destructor.

Public Member Functions inherited from plRefCountingImpl
	plRefCountingImpl ()=default
	Constructor.

	plRefCountingImpl (const plRefCountingImpl &rhs)

void	operator= (const plRefCountingImpl &rhs)

plInt32	AddRef () const
	Increments the reference counter. Returns the new reference count.

plInt32	ReleaseRef () const
	Decrements the reference counter. Returns the new reference count.

bool	IsReferenced () const
	Returns true if the reference count is greater than 0, false otherwise.

plInt32	GetRefCount () const
	Returns the current reference count.

Static Protected Member Functions inherited from plGALTextureVulkan
static vk::Format	ComputeImageFormat (plGALDeviceVulkan *pDevice, plEnum< plGALResourceFormat > galFormat, vk::ImageCreateInfo &ref_createInfo, vk::ImageFormatListCreateInfo &ref_imageFormats, bool bStaging)

static void	ComputeCreateInfo (plGALDeviceVulkan *pDevice, const plGALTextureCreationDescription &description, vk::ImageCreateInfo &ref_createInfo, vk::PipelineStageFlags &ref_stages, vk::AccessFlags &ref_access, vk::ImageLayout &ref_preferredLayout)

static void	ComputeCreateInfoLinear (vk::ImageCreateInfo &ref_createInfo, vk::PipelineStageFlags &ref_stages, vk::AccessFlags &ref_access)

static void	ComputeAllocInfo (bool bLinearCPU, plVulkanAllocationCreateInfo &ref_allocInfo)

static StagingMode	ComputeStagingMode (plGALDeviceVulkan *pDevice, const plGALTextureCreationDescription &description, const vk::ImageCreateInfo &createInfo)

Member Function Documentation

◆ DeInitPlatform()

plResult plGALSharedTextureVulkan::DeInitPlatform ( plGALDevice * pDevice )

overrideprotectedvirtual

Reimplemented from plGALTextureVulkan.

◆ GetSharedHandle()

plGALPlatformSharedHandle plGALSharedTextureVulkan::GetSharedHandle ( ) const

overrideprotectedvirtual

Returns the handle that can be used to open this texture on another device / process. Call plGALDevice::OpenSharedTexture to do so.

Implements plGALSharedTexture.

◆ InitPlatform()

plResult plGALSharedTextureVulkan::InitPlatform	(	plGALDevice *	pDevice,
		plArrayPtr< plGALSystemMemoryDescription >	pInitialData )

overrideprotectedvirtual

Reimplemented from plGALTextureVulkan.

◆ SignalSemaphoreGPU()

void plGALSharedTextureVulkan::SignalSemaphoreGPU ( plUInt64 uiValue ) const

overrideprotectedvirtual

Once the current render pipeline is done on the GPU, the semaphore will be signaled with the given value.

Parameters

iValue Value the semaphore is set to once we are done using the texture (after the current render pipeline).

Implements plGALSharedTexture.

◆ WaitSemaphoreGPU()

void plGALSharedTextureVulkan::WaitSemaphoreGPU ( plUInt64 uiValue ) const

overrideprotectedvirtual

Before the current render pipeline is executed, the GPU will wait for the semaphore to have the given value.

Parameters

iValue Value the semaphore needs to have before the texture can be used.

Implements plGALSharedTexture.

The documentation for this class was generated from the following files:

Code/Engine/RendererVulkan/Resources/SharedTextureVulkan.h
Code/Engine/RendererVulkan/Resources/Implementation/SharedTextureVulkan.cpp
