plQtProxy Class Reference

Glue class that maps plActions to QActions. QActions are only created if the plAction is actually mapped somewhere. Document and Global actions are manually executed and don't solely rely on Qt's ShortcutContext setting to prevent ambiguous action shortcuts. More...

#include <QtProxy.moc.h>

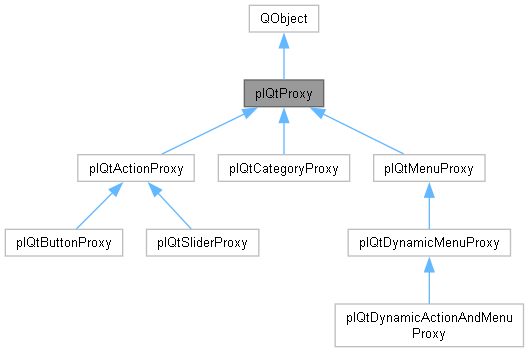

Inheritance diagram for plQtProxy:

Public Member Functions
virtual void	Update ()=0
virtual void	SetAction (plAction *pAction)
plAction *	GetAction ()

Static Public Member Functions
static bool	TriggerDocumentAction (plDocument *pDocument, QKeyEvent *pEvent, bool bTestOnly)
	Converts the QKeyEvent into a shortcut and tries to find a matching action in the document and global action list.
static plRttiMappedObjectFactory< plQtProxy > &	GetFactory ()
static QSharedPointer< plQtProxy >	GetProxy (plActionContext &ref_context, plActionDescriptorHandle hAction)

Protected Member Functions
	PL_MAKE_SUBSYSTEM_STARTUP_FRIEND (GuiFoundation, QtProxies)

Protected Attributes
plAction *	m_pAction

Static Protected Attributes
static plRttiMappedObjectFactory< plQtProxy >	s_Factory
static plMap< plActionDescriptorHandle, QWeakPointer< plQtProxy > >	s_GlobalActions
static plMap< const plDocument *, plMap< plActionDescriptorHandle, QWeakPointer< plQtProxy > > >	s_DocumentActions
static plMap< QWidget *, plMap< plActionDescriptorHandle, QWeakPointer< plQtProxy > > >	s_WindowActions
static QObject *	s_pSignalProxy = nullptr

Detailed Description

Glue class that maps plActions to QActions. QActions are only created if the plAction is actually mapped somewhere. Document and Global actions are manually executed and don't solely rely on Qt's ShortcutContext setting to prevent ambiguous action shortcuts.

Member Function Documentation

TriggerDocumentAction()

bool plQtProxy::TriggerDocumentAction ( plDocument * pDocument, QKeyEvent * pEvent, bool bTestOnly )

static

Converts the QKeyEvent into a shortcut and tries to find a matching action in the document and global action list.

Document actions are not mapped as ShortcutContext::WindowShortcut because docking allows for multiple documents to be mapped into the same window. Instead, ShortcutContext::WidgetWithChildrenShortcut is used to prevent ambiguous action shortcuts and the actions are executed manually via filtering QEvent::ShortcutOverride at the dock widget level. The function always has to be called two times: A: QEvent::ShortcutOverride: Only check with bTestOnly = true that we want to override the shortcut. This will instruct Qt to send the event as a regular key press event to the widget that accepted the override. B: QEvent::keyPressEvent: Execute the actual action with bTestOnly = false;

Parameters

pDocument	The document for which matching actions should be searched for. If null, only global actions are searched.
pEvent	The key event that should be converted into a shortcut.
bTestOnly	Accept the event and return true but don't execute the action. Use this inside QEvent::ShortcutOverride.

Returns

Whether the key event was consumed and an action executed.

---

The documentation for this class was generated from the following files:

• Code/Tools/Libs/GuiFoundation/ActionViews/QtProxy.moc.h
• Code/Tools/Libs/GuiFoundation/ActionViews/Implementation/QtProxy.cpp
