Represents a sound (called an 'event') in the Fmod sound system. More...

#include <FmodEventComponent.h>

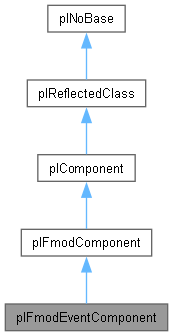

Inheritance diagram for plFmodEventComponent:

[legend]

Public Member Functions
virtual void	SerializeComponent (plWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (plWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

void	SetPaused (bool b)

bool	GetPaused () const

void	SetUseOcclusion (bool b)

bool	GetUseOcclusion () const

void	SetOcclusionCollisionLayer (plUInt8 uiCollisionLayer)

plUInt8	GetOcclusionCollisionLayer () const

void	SetOcclusionThreshold (float fThreshold)

float	GetOcclusionThreshold () const

void	SetPitch (float f)

float	GetPitch () const

void	SetVolume (float f)

float	GetVolume () const

void	SetSoundEventFile (const char *szFile)

const char *	GetSoundEventFile () const

void	SetSoundEvent (const plFmodSoundEventResourceHandle &hSoundEvent)

const plFmodSoundEventResourceHandle &	GetSoundEvent () const

void	SetShowDebugInfo (bool bShow)

bool	GetShowDebugInfo () const

void	Restart ()
	Will start the sound, if it was not playing. Will restart the sound, if it was already playing. If the sound was paused so far, this will change the paused state to playing.

void	StartOneShot ()
	Plays a completely new sound at the location of this component and with all its current properties.

void	StopSound (bool bImmediate)
	Stops the current sound from playing. Typically allows the sound to fade out briefly, unless specified otherwise.

void	SoundCue ()
	Triggers an Fmod sound cue. Whatever that is useful for.

plFmodParameterId	FindParameter (const char *szName) const
	Tries to find the Fmod event parameter by name. Returns the parameter id or -1, if no such parameter exists.

void	SetParameter (plFmodParameterId paramId, float fValue)
	Sets an Fmod event parameter value. See FindParameter() for the index.

float	GetParameter (plFmodParameterId paramId) const
	Gets an Fmod event parameter value. See FindParameter() for the index. Returns 0, if the index is invalid.

void	SetEventParameter (const char *szParamName, float fValue)
	Sets an event parameter via name lookup, so this is less efficient than SetParameter()

void	OnMsgSetFloatParameter (plMsgSetFloatParameter &ref_msg)
	Allows one to set event parameters through the generic plMsgSetFloatParameter message.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plEnum< plOnComponentFinishedAction >	m_OnFinishedAction

Protected Member Functions
virtual void	OnSimulationStarted () override
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

void	OnMsgDeleteGameObject (plMsgDeleteGameObject &msg)

void	Update ()

void	UpdateParameters (FMOD::Studio::EventInstance *pInstance)

void	UpdateOcclusion ()

void	InvalidateResource (bool bTryToRestore)
	Called when the event resource has been unloaded (for a reload)

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	Deinitialize ()
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

virtual void	OnActivated ()
	This method is called when the component gets activated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
bool	m_bPaused

bool	m_bUseOcclusion

plUInt8	m_uiOcclusionThreshold

plUInt8	m_uiOcclusionCollisionLayer

float	m_fPitch

float	m_fVolume

plInt32	m_iTimelinePosition = -1

plUInt32	m_uiOcclusionStateIndex = plInvalidIndex

plFmodSoundEventResourceHandle	m_hSoundEvent

FMOD::Studio::EventDescription *	m_pEventDesc

FMOD::Studio::EventInstance *	m_pEventInstance

plEventMessageSender< plMsgFmodSoundFinished >	m_SoundFinishedEventSender

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Friends
class	plComponentManagerSimple< class plFmodEventComponent, plComponentUpdateType::WhenSimulating >

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

Represents a sound (called an 'event') in the Fmod sound system.

Provides functions to start, pause, stop a sound, set parameters, change volume, pitch etc.

Member Function Documentation

◆ DeserializeComponent()

void plFmodEventComponent::DeserializeComponent ( plWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from plFmodComponent.

◆ OnDeactivated()

void plFmodEventComponent::OnDeactivated ( )

overrideprotectedvirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ OnMsgSetFloatParameter()

void plFmodEventComponent::OnMsgSetFloatParameter ( plMsgSetFloatParameter & ref_msg )

Allows one to set event parameters through the generic plMsgSetFloatParameter message.

Requires event parameter lookup via a name, so this is less efficient than SetParameter().

◆ OnSimulationStarted()

void plFmodEventComponent::OnSimulationStarted ( )

overrideprotectedvirtual

This method is called once for active components, at the start of the next world update, but only when the world is simulated.

This is the one preferred method to setup typical game logic. In a pure game environment there is no practical difference between OnActivated() and OnSimulationStarted(), as OnSimulationStarted() will be called right after OnActivated().

However, when a scene is open inside the editor, there is an important difference: OnActivated() is called once the component was created. OnSimulationStarted() is only called once the game simulation is started inside the editor. As an example, if a component starts a sound in OnActivated(), that sound will play right after the scene has been loaded into the editor. If instead the sound gets started in OnSimulationStarted(), it will only play once the user starts the game mode inside the editor.

Additionally, OnSimulationStarted() is only ever executed once on a component, even if the plWorld pauses and resumes world simulation multiple times. Thus components that should only execute a thing exactly once, will work correctly. In contrast OnActivated() and OnDeactivated() will be executed every time the component's active state is toggled, which could re-execute the same behavior multiple times.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from plComponent.

◆ plFmodComponentIsAbstract()

virtual void plFmodEventComponent::plFmodComponentIsAbstract ( )

inlineoverrideprivatevirtual

Implements plFmodComponent.

◆ SerializeComponent()

void plFmodEventComponent::SerializeComponent ( plWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from plFmodComponent.

◆ SetPitch()

void plFmodEventComponent::SetPitch ( float f )

Todo: Global pitch might better be a bus setting

◆ StartOneShot()

void plFmodEventComponent::StartOneShot ( )

Plays a completely new sound at the location of this component and with all its current properties.

Pitch, volume, position, direction and velocity are copied to the new sound instance. The new sound event then plays to the end and cannot be controlled through this component any further. If the referenced Fmod sound event is not a "one shot" event, this function is ignored. The event that is controlled through this component is unaffected by this.

The documentation for this class was generated from the following files:

Code/EnginePlugins/FmodPlugin/Components/FmodEventComponent.h
Code/EnginePlugins/FmodPlugin/Components/FmodEventComponent.cpp
