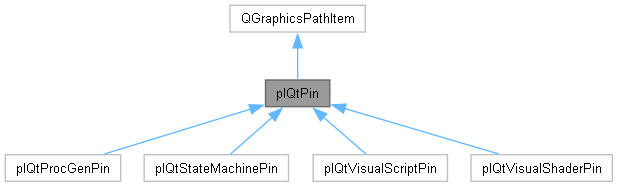

Inheritance diagram for plQtPin:

[legend]

Public Member Functions
virtual int	type () const override

void	AddConnection (plQtConnection *pConnection)

void	RemoveConnection (plQtConnection *pConnection)

plArrayPtr< plQtConnection * >	GetConnections ()

bool	HasAnyConnections () const

const plPin *	GetPin () const

virtual void	SetPin (const plPin &pin)

virtual void	ConnectedStateChanged (bool bConnected)

virtual QPointF	GetPinPos () const

virtual QPointF	GetPinDir () const

virtual QRectF	GetPinRect () const

virtual void	UpdateConnections ()

void	SetHighlightState (plQtPinHighlightState state)

void	SetActive (bool bActive)

virtual void	ExtendContextMenu (QMenu &ref_menu)

virtual void	keyPressEvent (QKeyEvent *pEvent) override

Protected Member Functions
virtual bool	UpdatePinColors (const plColorGammaUB *pOverwriteColor=nullptr)

virtual QVariant	itemChange (GraphicsItemChange change, const QVariant &value) override

Protected Attributes
plQtPinHighlightState	m_HighlightState = plQtPinHighlightState::None

QGraphicsTextItem *	m_pLabel

QPointF	m_PinCenter

bool	m_bTranslatePinName = true

The documentation for this class was generated from the following files:
