Adds a dynamic point light to the scene, optionally casting shadows. More...

#include <PointLightComponent.h>

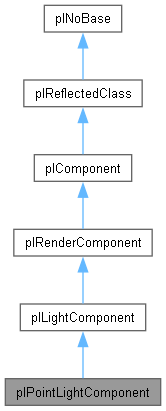

Inheritance diagram for plPointLightComponent:

[legend]

Public Member Functions
virtual void	SerializeComponent (plWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (plWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

virtual plResult	GetLocalBounds (plBoundingBoxSphere &ref_bounds, bool &ref_bAlwaysVisible, plMsgUpdateLocalBounds &ref_msg) override
	Called by plRenderComponent::OnUpdateLocalBounds(). If PL_SUCCESS is returned, bounds and bAlwaysVisible will be integrated into the plMsgUpdateLocalBounds result, otherwise the out values are simply ignored.

void	SetRange (float fRange)
	Sets the radius of the lightsource. If zero, the radius is automatically determined from the intensity.

float	GetRange () const

float	GetEffectiveRange () const
	Returns the final radius of the lightsource.

void	SetFalloff (float fFalloff)

float	GetFalloff () const

Public Member Functions inherited from plLightComponent
void	SetUsingColorTemperature (bool bUseColorTemperature)
	Used to enable kelvin color values. This is a physical representation of light color using. for more detail: https://wikipedia.org/wiki/Color_temperature.

bool	GetUsingColorTemperature () const

void	SetLightColor (plColorGammaUB lightColor)

plColorGammaUB	GetBaseLightColor () const

plColorGammaUB	GetLightColor () const

void	SetTemperature (plUInt32 uiTemperature)

plUInt32	GetTemperature () const

void	SetIntensity (float fIntensity)
	Sets the brightness of the lightsource.

float	GetIntensity () const

void	SetSpecularMultiplier (float fSpecularMultiplier)

float	GetSpecularMultiplier () const

void	SetCastShadows (bool bCastShadows)
	Sets whether the lightsource shall cast dynamic shadows.

bool	GetCastShadows () const

void	SetPenumbraSize (float fPenumbraSize)
	Sets the fuzziness of the shadow edges.

float	GetPenumbraSize () const

void	SetSlopeBias (float fShadowBias)
	Allows to tweak how dynamic shadows are applied to reduce artifacts.

float	GetSlopeBias () const

void	SetConstantBias (float fShadowBias)
	Allows to tweak how dynamic shadows are applied to reduce artifacts.

float	GetConstantBias () const

void	SetWidth (float fWidth)
	Sets the width of the area light.

float	GetWidth () const

void	SetLength (float fLength)
	Sets the length of the area light.

float	GetLength () const

void	OnMsgSetColor (plMsgSetColor &ref_msg)

Public Member Functions inherited from plRenderComponent
void	TriggerLocalBoundsUpdate ()
	Call this when some value was modified that affects the size of the local bounding box and it should be recomputed.

PL_ALWAYS_INLINE plUInt32	GetUniqueIdForRendering (plUInt32 uiInnerIndex=0, plUInt32 uiInnerIndexShift=24) const
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Public Member Functions inherited from plComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

plComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const plComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

plGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const plGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

plWorld *	GetWorld ()
	Returns the corresponding world for this component.

const plWorld *	GetWorld () const
	Returns the corresponding world for this component.

plComponentHandle	GetHandle () const
	Returns a handle to this component.

plUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (plUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg)
	Sends a message to this component.

PL_ALWAYS_INLINE bool	SendMessage (plMessage &ref_msg) const

void	PostMessage (const plMessage &msg, plTime delay=plTime::MakeZero(), plObjectMsgQueueType::Enum queueType=plObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const plMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (plUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (plUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds plObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the plObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
void	OnMsgExtractRenderData (plMsgExtractRenderData &msg) const

Protected Member Functions inherited from plRenderComponent
virtual void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

virtual void	OnActivated () override
	This method is called when the component gets activated.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

void	OnUpdateLocalBounds (plMsgUpdateLocalBounds &msg)

void	InvalidateCachedRenderData ()

Protected Member Functions inherited from plComponent
	plComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual plWorldModuleTypeId	GetTypeId () const =0

virtual plComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	OnSimulationStarted ()
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (plMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
float	m_fRange = 0.0f

float	m_fEffectiveRange = 0.0f

float	m_fFalloff = 0.0f

Protected Attributes inherited from plLightComponent
plColorGammaUB	m_LightColor = plColor::White

plUInt32	m_uiTemperature = 6550

float	m_fIntensity = 10.0f

float	m_fSpecularMultiplier = 1.0f

float	m_fPenumbraSize = 0.1f

float	m_fSlopeBias = 0.25f

float	m_fConstantBias = 0.1f

bool	m_bCastShadows = false

bool	m_bUseColorTemperature = false

float	m_fWidth

float	m_fLength

Protected Attributes inherited from plComponent
const plRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Additional Inherited Members
Static Public Member Functions inherited from plLightComponent
static float	CalculateEffectiveRange (float fRange, float fIntensity, float fWidth=0.0f, float fLength=0.0f)
	Calculates how far a lightsource would shine given the specified range and intensity.

static float	CalculateScreenSpaceSize (const plBoundingSphere &sphere, const plCamera &camera)
	Calculates how large on screen (in pixels) the lightsource would be.

Static Public Member Functions inherited from plRenderComponent
static plUInt32	GetUniqueIdForRendering (const plComponent &component, plUInt32 uiInnerIndex=0, plUInt32 uiInnerIndexShift=24)
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

Adds a dynamic point light to the scene, optionally casting shadows.

For performance reasons, prefer to use plSpotLightComponent where possible. Do not use shadows just to limit the light cone, when a spot light could achieve the same.

Member Function Documentation

◆ DeserializeComponent()

void plPointLightComponent::DeserializeComponent ( plWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from plLightComponent.

◆ GetLocalBounds()

plResult plPointLightComponent::GetLocalBounds	(	plBoundingBoxSphere &	ref_bounds,
		bool &	ref_bAlwaysVisible,
		plMsgUpdateLocalBounds &	ref_msg )

overridevirtual

Called by plRenderComponent::OnUpdateLocalBounds(). If PL_SUCCESS is returned, bounds and bAlwaysVisible will be integrated into the plMsgUpdateLocalBounds result, otherwise the out values are simply ignored.

Implements plRenderComponent.

◆ SerializeComponent()

void plPointLightComponent::SerializeComponent ( plWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from plLightComponent.

The documentation for this class was generated from the following files:

Code/Engine/RendererCore/Lights/PointLightComponent.h
Code/Engine/RendererCore/Lights/Implementation/PointLightComponent.cpp
