plShaderProgramCompiler Class Reference

Shader compiler interface. Custom shader compiles need to derive from this class and implement the pure virtual interface functions. Instances are created via reflection so each implementation must be properly reflected. More...

#include <ShaderCompiler.h>

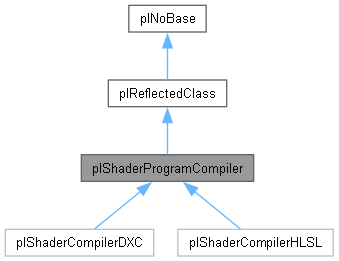

Inheritance diagram for plShaderProgramCompiler:

Public Member Functions
virtual void	GetSupportedPlatforms (plHybridArray< plString, 4 > &out_platforms)=0
	Returns the platforms that this shader compiler supports.
virtual plResult	ModifyShaderSource (plShaderProgramData &inout_data, plLogInterface *pLog)=0
virtual plResult	Compile (plShaderProgramData &inout_data, plLogInterface *pLog)=0
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

Shader compiler interface. Custom shader compiles need to derive from this class and implement the pure virtual interface functions. Instances are created via reflection so each implementation must be properly reflected.

Member Function Documentation

Compile()

virtual plResult plShaderProgramCompiler::Compile ( plShaderProgramData & inout_data, plLogInterface * pLog )

pure virtual

Compiles the shader comprised of multiple stages defined in inout_data.

Parameters

inout_data	The state of the shader compiler. m_Resources and m_ByteCode should be written to on successful return code.
pLog	Logging interface to be used when outputting any errors.

Returns

Returns whether the shader was compiled successfully. On failure, errors should be written to pLog.

Implemented in plShaderCompilerDXC, and plShaderCompilerHLSL.

GetSupportedPlatforms()

virtual void plShaderProgramCompiler::GetSupportedPlatforms ( plHybridArray< plString, 4 > & out_platforms )

pure virtual

Returns the platforms that this shader compiler supports.

Parameters

out_platforms

Filled with the platforms this compiler supports.

Implemented in plShaderCompilerDXC, and plShaderCompilerHLSL.

ModifyShaderSource()

virtual plResult plShaderProgramCompiler::ModifyShaderSource ( plShaderProgramData & inout_data, plLogInterface * pLog )

pure virtual

Allows the shader compiler to modify the shader source before hashing and compiling. This allows it to implement custom features by injecting code before the compile process. Mostly used to define resource bindings that do not cause conflicts across shader stages.

Parameters

inout_data	The state of the shader compiler. Only m_sShaderSource should be modified by the implementation.
pLog	Logging interface to be used when outputting any errors.

Returns

Returns whether the shader could be modified. On failure, the shader won't be compiled.

Implemented in plShaderCompilerDXC, and plShaderCompilerHLSL.

---

The documentation for this class was generated from the following file:

• Code/Engine/RendererCore/ShaderCompiler/ShaderCompiler.h
