plGALTextureDX11 Class Reference

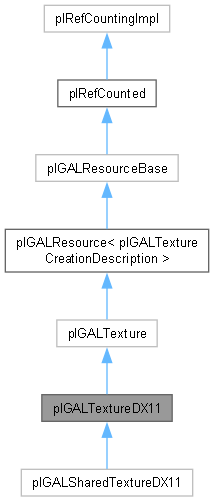

Inheritance diagram for plGALTextureDX11:
Inheritance graph
[legend]

Public Member Functions

PL_ALWAYS_INLINE ID3D11Resource * GetDXTexture () const

PL_ALWAYS_INLINE ID3D11Resource * GetDXStagingTexture () const

- Public Member Functions inherited from plGALResource< plGALTextureCreationDescription >
PL_ALWAYS_INLINE plGALResource (const plGALTextureCreationDescription &description)

PL_ALWAYS_INLINE const plGALTextureCreationDescription & GetDescription () const

- Public Member Functions inherited from plGALResourceBase
void SetDebugName (const char *szName) const

virtual const plGALResourceBase * GetParentResource () const

- Public Member Functions inherited from plRefCounted
virtual ~plRefCounted ()=default
 Adds a virtual destructor.

- Public Member Functions inherited from plRefCountingImpl
 plRefCountingImpl ()=default
 Constructor.

 plRefCountingImpl (const plRefCountingImpl &rhs)

void operator= (const plRefCountingImpl &rhs)

plInt32 AddRef () const
 Increments the reference counter. Returns the new reference count.

plInt32 ReleaseRef () const
 Decrements the reference counter. Returns the new reference count.

bool IsReferenced () const
 Returns true if the reference count is greater than 0, false otherwise.

plInt32 GetRefCount () const
 Returns the current reference count.


Protected Member Functions

 plGALTextureDX11 (const plGALTextureCreationDescription &Description)

virtual plResult InitPlatform (plGALDevice *pDevice, plArrayPtr< plGALSystemMemoryDescription > pInitialData) override

virtual plResult DeInitPlatform (plGALDevice *pDevice) override

virtual void SetDebugNamePlatform (const char *szName) const override

plResult InitFromNativeObject (plGALDeviceDX11 *pDXDevice)

plResult CreateStagingTexture (plGALDeviceDX11 *pDevice)

- Protected Member Functions inherited from plGALTexture
 plGALTexture (const plGALTextureCreationDescription &Description)


Static Protected Member Functions

static plResult Create2DDesc (const plGALTextureCreationDescription &description, plGALDeviceDX11 *pDXDevice, D3D11_TEXTURE2D_DESC &out_Tex2DDesc)

static plResult Create3DDesc (const plGALTextureCreationDescription &description, plGALDeviceDX11 *pDXDevice, D3D11_TEXTURE3D_DESC &out_Tex3DDesc)

static void ConvertInitialData (const plGALTextureCreationDescription &description, plArrayPtr< plGALSystemMemoryDescription > pInitialData, plHybridArray< D3D11_SUBRESOURCE_DATA, 16 > &out_InitialData)


Protected Attributes

ID3D11Resource * m_pDXTexture = nullptr

ID3D11Resource * m_pDXStagingTexture = nullptr

- Protected Attributes inherited from plGALTexture
plGALTextureResourceViewHandle m_hDefaultResourceView

plGALRenderTargetViewHandle m_hDefaultRenderTargetView

plHashTable< plUInt32, plGALTextureResourceViewHandle > m_ResourceViews

plHashTable< plUInt32, plGALRenderTargetViewHandle > m_RenderTargetViews

plHashTable< plUInt32, plGALTextureUnorderedAccessViewHandle > m_UnorderedAccessViews

- Protected Attributes inherited from plGALResource< plGALTextureCreationDescription >
const plGALTextureCreationDescription m_Description


Friends

class plGALDeviceDX11

class plMemoryUtils

class plGALSharedTextureDX11


Member Function Documentation

◆ DeInitPlatform()

plResult plGALTextureDX11::DeInitPlatform ( plGALDevice * pDevice)
overrideprotectedvirtual

Implements plGALTexture.

◆ InitFromNativeObject()

plResult plGALTextureDX11::InitFromNativeObject ( plGALDeviceDX11 * pDXDevice)
protected
Todo
Validation if interface of corresponding texture object exists

◆ InitPlatform()

plResult plGALTextureDX11::InitPlatform ( plGALDevice * pDevice,
plArrayPtr< plGALSystemMemoryDescription > pInitialData )
overrideprotectedvirtual

Implements plGALTexture.

◆ SetDebugNamePlatform()

void plGALTextureDX11::SetDebugNamePlatform ( const char * szName) const
overrideprotectedvirtual

Implements plGALResourceBase.

The documentation for this class was generated from the following files:
