[internal] An implementation of plTypedEnumProperty that uses custom getter / setter functions to access an enum property. More...

#include <EnumProperty.h>

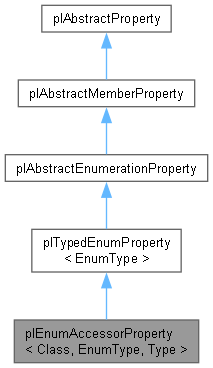

Inheritance diagram for plEnumAccessorProperty< Class, EnumType, Type >:

[legend]

Public Types
using	RealType = typename plTypeTraits<Type>::NonConstReferenceType

using	GetterFunc = Type (Class::*)() const

using	SetterFunc = void (Class::*)(Type value)

Public Member Functions
	plEnumAccessorProperty (const char *szPropertyName, GetterFunc getter, SetterFunc setter)
	Constructor.

virtual void *	GetPropertyPointer (const void *pInstance) const override
	Returns a pointer to the property data or nullptr. If a valid pointer is returned, that pointer and the information from GetSpecificType() can be used to step deeper into the type (if required).

virtual plInt64	GetValue (const void *pInstance) const override
	Returns the value of the property. Pass the instance pointer to the surrounding class along.

virtual void	SetValue (void *pInstance, plInt64 value) const override
	Modifies the value of the property. Pass the instance pointer to the surrounding class along.

Public Member Functions inherited from plTypedEnumProperty< EnumType >
	plTypedEnumProperty (const char *szPropertyName)
	Passes the property name through to plAbstractEnumerationProperty.

virtual const plRTTI *	GetSpecificType () const override
	Returns the actual type of the property. You can then test whether it derives from plEnumBase or plBitflagsBase to determine whether we are dealing with an enum or bitflags property.

Public Member Functions inherited from plAbstractEnumerationProperty
	plAbstractEnumerationProperty (const char *szPropertyName)
	Passes the property name through to plAbstractMemberProperty.

virtual void	GetValuePtr (const void pInstance, void pObject) const override
	Writes the value of this property in pInstance to pObject. pObject needs to point to an instance of this property's type.

virtual void	SetValuePtr (void pInstance, const void pObject) const override
	Sets the value of pObject to the property in pInstance. pObject needs to point to an instance of this property's type.

Public Member Functions inherited from plAbstractMemberProperty
	plAbstractMemberProperty (const char *szPropertyName)
	Passes the property name through to plAbstractProperty.

virtual plPropertyCategory::Enum	GetCategory () const override
	Returns plPropertyCategory::Member.

Public Member Functions inherited from plAbstractProperty
	plAbstractProperty (const char *szPropertyName)
	The constructor must get the name of the property. The string must be a compile-time constant.

const char *	GetPropertyName () const
	Returns the name of the property.

const plBitflags< plPropertyFlags > &	GetFlags () const
	Returns the flags of the property.

plAbstractProperty *	AddFlags (plBitflags< plPropertyFlags > flags)
	Adds flags to the property. Returns itself to allow to be called during initialization.

plAbstractProperty *	AddAttributes (plPropertyAttribute pAttrib1, plPropertyAttribute pAttrib2=nullptr, plPropertyAttribute pAttrib3=nullptr, plPropertyAttribute pAttrib4=nullptr, plPropertyAttribute pAttrib5=nullptr, plPropertyAttribute pAttrib6=nullptr)
	Adds attributes to the property. Returns itself to allow to be called during initialization. Allocate an attribute using standard 'new'.

plArrayPtr< const plPropertyAttribute *const >	GetAttributes () const
	Returns the array of property attributes.

template<typename Type >
const Type *	GetAttributeByType () const
	Returns the first attribute that derives from the given type, or nullptr if nothing is found.

Additional Inherited Members
Protected Attributes inherited from plAbstractProperty
plBitflags< plPropertyFlags >	m_Flags

const char *	m_szPropertyName

plHybridArray< const plPropertyAttribute *, 2, plStaticsAllocatorWrapper >	m_Attributes

Detailed Description

template<typename Class, typename EnumType, typename Type>
class plEnumAccessorProperty< Class, EnumType, Type >

[internal] An implementation of plTypedEnumProperty that uses custom getter / setter functions to access an enum property.

Member Function Documentation

◆ GetPropertyPointer()

template<typename Class , typename EnumType , typename Type >

virtual void * plEnumAccessorProperty< Class, EnumType, Type >::GetPropertyPointer ( const void * pInstance ) const

inlineoverridevirtual

Returns a pointer to the property data or nullptr. If a valid pointer is returned, that pointer and the information from GetSpecificType() can be used to step deeper into the type (if required).

You need to pass the pointer to an object on which you are operating. This function is mostly of interest when the property itself is a compound type (a struct or class). If it is a simple type (int, float, etc.) it doesn't make much sense to retrieve the pointer.

For example GetSpecificType() might return that a property is of type plVec3. In that case one might either stop and just use the code to handle plVec3 types, or one might continue and enumerate all sub-properties (x, y and z) as well.

Note: There is no guarantee that this function returns a non-nullptr pointer, independent of the type. When a property uses custom 'accessors' (functions to get / set the property value), it is not possible (or useful) to get the property pointer.

Implements plAbstractMemberProperty.

◆ GetValue()

template<typename Class , typename EnumType , typename Type >

virtual plInt64 plEnumAccessorProperty< Class, EnumType, Type >::GetValue ( const void * pInstance ) const

inlineoverridevirtual

Returns the value of the property. Pass the instance pointer to the surrounding class along.

Implements plAbstractEnumerationProperty.

◆ SetValue()

template<typename Class , typename EnumType , typename Type >

virtual void plEnumAccessorProperty< Class, EnumType, Type >::SetValue	(	void *	pInstance,
		plInt64	value ) const

inlineoverridevirtual

Modifies the value of the property. Pass the instance pointer to the surrounding class along.

Note: Make sure the property is not read-only before calling this, otherwise an assert will fire.

Implements plAbstractEnumerationProperty.

The documentation for this class was generated from the following file:

Code/Engine/Foundation/Reflection/Implementation/EnumProperty.h
