plParticleStream Class Reference

Base class for all particle streams. More...

#include <ParticleStream.h>

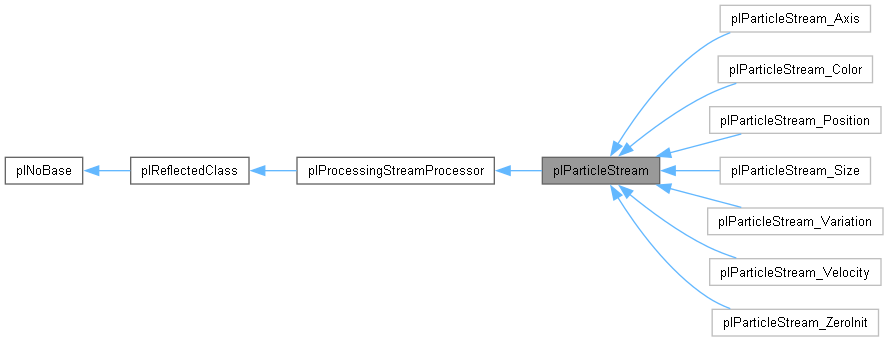

Inheritance diagram for plParticleStream:

Protected Member Functions
virtual void	Initialize (plParticleSystemInstance *pOwner)
virtual plResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.
virtual void	Process (plUInt64 uiNumElements) final override
	The actual method which processes the data, will be called with the number of elements to process.
virtual void	InitializeElements (plUInt64 uiStartIndex, plUInt64 uiNumElements) override
	The default implementation initializes all data with zero.

Protected Attributes
plProcessingStream *	m_pStream
Protected Attributes inherited from plProcessingStreamProcessor
plProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Friends
class	plParticleSystemInstance
class	plParticleStreamFactory

Additional Inherited Members
Public Member Functions inherited from plProcessingStreamProcessor
	plProcessingStreamProcessor ()
	Base constructor.
virtual	~plProcessingStreamProcessor ()
	Base destructor.
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()
Public Attributes inherited from plProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.

Detailed Description

Base class for all particle streams.

Member Function Documentation

InitializeElements()

void plParticleStream::InitializeElements ( plUInt64 uiStartIndex, plUInt64 uiNumElements )

overrideprotectedvirtual

The default implementation initializes all data with zero.

Implements plProcessingStreamProcessor.

Reimplemented in plParticleStream_Axis, plParticleStream_Color, plParticleStream_Position, plParticleStream_Size, plParticleStream_Variation, and plParticleStream_Velocity.

Process()

virtual void plParticleStream::Process ( plUInt64 uiNumElements )

inlinefinaloverrideprotectedvirtual

The actual method which processes the data, will be called with the number of elements to process.

Implements plProcessingStreamProcessor.

UpdateStreamBindings()

plResult plParticleStream::UpdateStreamBindings ( )

finaloverrideprotectedvirtual

Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.

Implements plProcessingStreamProcessor.

---

The documentation for this class was generated from the following files:

• Code/EnginePlugins/ParticlePlugin/Streams/ParticleStream.h
• Code/EnginePlugins/ParticlePlugin/Streams/ParticleStream.cpp
