plAbstractArrayProperty Class Reference

The base class for a property that represents an array of values. More...

#include <AbstractProperty.h>

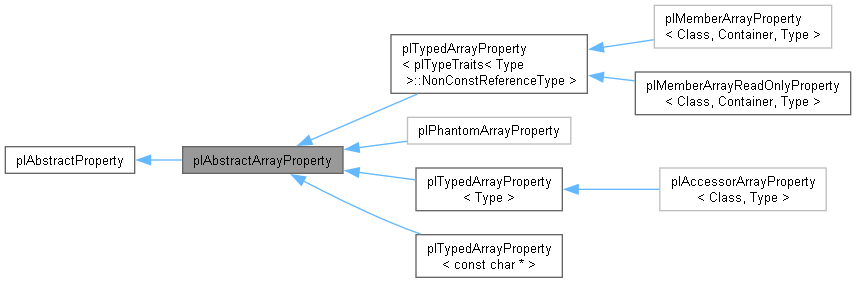

Inheritance diagram for plAbstractArrayProperty:

Public Member Functions
	plAbstractArrayProperty (const char *szPropertyName)
	Passes the property name through to plAbstractProperty.
virtual plPropertyCategory::Enum	GetCategory () const override
	Returns plPropertyCategory::Array.
virtual plUInt32	GetCount (const void *pInstance) const =0
	Returns number of elements.
virtual void	GetValue (const void *pInstance, plUInt32 uiIndex, void *pObject) const =0
	Writes element at index uiIndex to the target of pObject.
virtual void	SetValue (void *pInstance, plUInt32 uiIndex, const void *pObject) const =0
	Writes the target of pObject to the element at index uiIndex.
virtual void	Insert (void *pInstance, plUInt32 uiIndex, const void *pObject) const =0
	Inserts the target of pObject into the array at index uiIndex.
virtual void	Remove (void *pInstance, plUInt32 uiIndex) const =0
	Removes the element in the array at index uiIndex.
virtual void	Clear (void *pInstance) const =0
	Clears the array.
virtual void	SetCount (void *pInstance, plUInt32 uiCount) const =0
	Resizes the array to uiCount.
virtual void *	GetValuePointer (void *pInstance, plUInt32 uiIndex) const
Public Member Functions inherited from plAbstractProperty
	plAbstractProperty (const char *szPropertyName)
	The constructor must get the name of the property. The string must be a compile-time constant.
const char *	GetPropertyName () const
	Returns the name of the property.
virtual const plRTTI *	GetSpecificType () const =0
	Returns the type information of the constant property. Use this to cast this property to a specific version of plTypedConstantProperty.
const plBitflags< plPropertyFlags > &	GetFlags () const
	Returns the flags of the property.
plAbstractProperty *	AddFlags (plBitflags< plPropertyFlags > flags)
	Adds flags to the property. Returns itself to allow to be called during initialization.
plAbstractProperty *	AddAttributes (plPropertyAttribute *pAttrib1, plPropertyAttribute *pAttrib2=nullptr, plPropertyAttribute *pAttrib3=nullptr, plPropertyAttribute *pAttrib4=nullptr, plPropertyAttribute *pAttrib5=nullptr, plPropertyAttribute *pAttrib6=nullptr)
	Adds attributes to the property. Returns itself to allow to be called during initialization. Allocate an attribute using standard 'new'.
plArrayPtr< const plPropertyAttribute *const >	GetAttributes () const
	Returns the array of property attributes.
template<typename Type >
const Type *	GetAttributeByType () const
	Returns the first attribute that derives from the given type, or nullptr if nothing is found.

Additional Inherited Members
Protected Attributes inherited from plAbstractProperty
plBitflags< plPropertyFlags >	m_Flags
const char *	m_szPropertyName
plHybridArray< const plPropertyAttribute *, 2, plStaticsAllocatorWrapper >	m_Attributes

Detailed Description

The base class for a property that represents an array of values.

Member Function Documentation

Clear()

virtual void plAbstractArrayProperty::Clear ( void * pInstance ) const

pure virtual

Clears the array.

Implemented in plAccessorArrayProperty< Class, Type >, plMemberArrayProperty< Class, Container, Type >, plMemberArrayReadOnlyProperty< Class, Container, Type >, and plPhantomArrayProperty.

GetCategory()

virtual plPropertyCategory::Enum plAbstractArrayProperty::GetCategory ( ) const

inlineoverridevirtual

Returns plPropertyCategory::Array.

Implements plAbstractProperty.

GetCount()

virtual plUInt32 plAbstractArrayProperty::GetCount ( const void * pInstance ) const

pure virtual

Returns number of elements.

Implemented in plAccessorArrayProperty< Class, Type >, plMemberArrayProperty< Class, Container, Type >, plMemberArrayReadOnlyProperty< Class, Container, Type >, and plPhantomArrayProperty.

GetValue()

virtual void plAbstractArrayProperty::GetValue ( const void * pInstance, plUInt32 uiIndex, void * pObject ) const

pure virtual

Writes element at index uiIndex to the target of pObject.

Implemented in plAccessorArrayProperty< Class, Type >, plMemberArrayProperty< Class, Container, Type >, plMemberArrayReadOnlyProperty< Class, Container, Type >, and plPhantomArrayProperty.

Insert()

virtual void plAbstractArrayProperty::Insert ( void * pInstance, plUInt32 uiIndex, const void * pObject ) const

pure virtual

Inserts the target of pObject into the array at index uiIndex.

Implemented in plAccessorArrayProperty< Class, Type >, plMemberArrayProperty< Class, Container, Type >, plMemberArrayReadOnlyProperty< Class, Container, Type >, and plPhantomArrayProperty.

Remove()

virtual void plAbstractArrayProperty::Remove ( void * pInstance, plUInt32 uiIndex ) const

pure virtual

Removes the element in the array at index uiIndex.

Implemented in plAccessorArrayProperty< Class, Type >, plMemberArrayProperty< Class, Container, Type >, plMemberArrayReadOnlyProperty< Class, Container, Type >, and plPhantomArrayProperty.

SetCount()

virtual void plAbstractArrayProperty::SetCount ( void * pInstance, plUInt32 uiCount ) const

pure virtual

Resizes the array to uiCount.

Implemented in plAccessorArrayProperty< Class, Type >, plMemberArrayProperty< Class, Container, Type >, plMemberArrayReadOnlyProperty< Class, Container, Type >, and plPhantomArrayProperty.

SetValue()

virtual void plAbstractArrayProperty::SetValue ( void * pInstance, plUInt32 uiIndex, const void * pObject ) const

pure virtual

Writes the target of pObject to the element at index uiIndex.

Implemented in plAccessorArrayProperty< Class, Type >, plMemberArrayProperty< Class, Container, Type >, plMemberArrayReadOnlyProperty< Class, Container, Type >, and plPhantomArrayProperty.

---

The documentation for this class was generated from the following file:

• Code/Engine/Foundation/Reflection/Implementation/AbstractProperty.h
