plAnimGraphNode Class Reference

Base class for all nodes in an plAnimGraphInstance. More...

#include <AnimGraphNode.h>

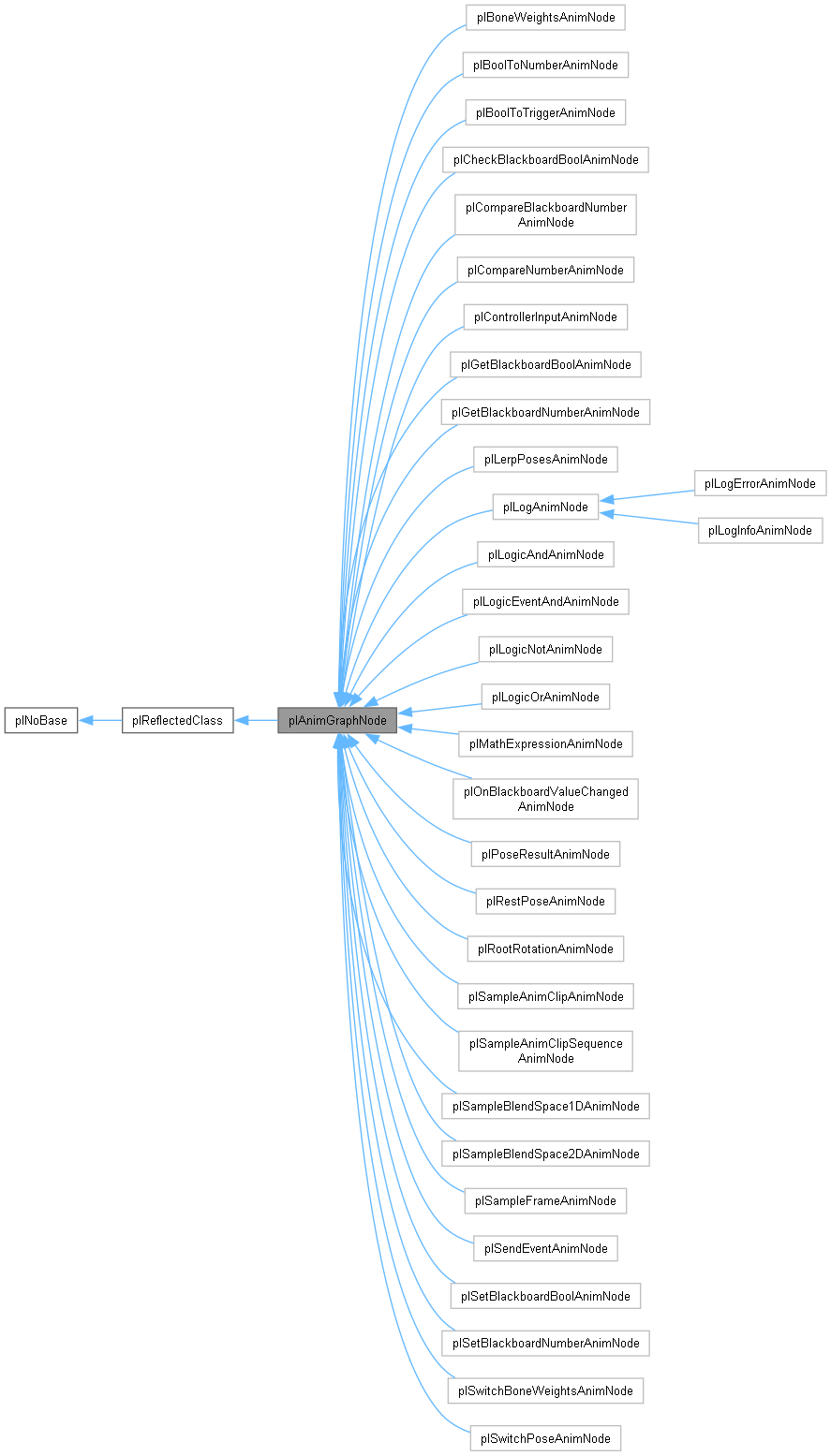

Inheritance diagram for plAnimGraphNode:

Public Member Functions
const char *	GetCustomNodeTitle () const
void	SetCustomNodeTitle (const char *szSz)
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
virtual plResult	SerializeNode (plStreamWriter &stream) const =0
virtual plResult	DeserializeNode (plStreamReader &stream)=0
virtual void	Step (plAnimController &ref_controller, plAnimGraphInstance &ref_graph, plTime tDiff, const plSkeletonResource *pSkeleton, plGameObject *pTarget) const =0
virtual bool	GetInstanceDataDesc (plInstanceDataDesc &out_desc) const

Protected Attributes
plHashedString	m_sCustomNodeTitle
plUInt32	m_uiInstanceDataOffset = plInvalidIndex

Friends
class	plAnimGraphInstance
class	plAnimGraph
class	plAnimGraphResource

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Detailed Description

Base class for all nodes in an plAnimGraphInstance.

These nodes are used to configure which skeletal animations can be played on an object, and how they would be played back exactly. The nodes implement different functionality. For example logic nodes are used to figure out how to play an animation, other nodes then sample and combining animation poses, and yet other nodes can inform the user about events or they write state back to the animation graph's blackboard.

---

The documentation for this class was generated from the following files:

• Code/Engine/RendererCore/AnimationSystem/AnimGraph/AnimGraphNode.h
• Code/Engine/RendererCore/AnimationSystem/AnimGraph/Implementation/AnimGraphNode.cpp
