An implementation of plInputDeviceController that handles XBox 360 controllers. More...

#include <InputDeviceXBox.h>

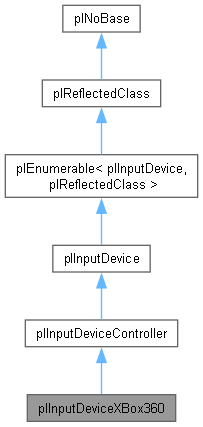

Inheritance diagram for plInputDeviceXBox360:

[legend]

Public Member Functions
virtual bool	IsControllerConnected (plUInt8 uiPhysical) const override
	Queries whether the controller with the given physical index is connected to the computer. This may change at any time.

Public Member Functions inherited from plInputDeviceController
void	EnableVibration (plUInt8 uiVirtual, bool bEnable)
	Enables or disables vibration on the given controller (virtual index). If it is disabled, the controller will never vibrate, even if vibration profiles are sent to it.

bool	IsVibrationEnabled (plUInt8 uiVirtual) const
	Checks whether vibration is enabled on the given controller (virtual index).

void	SetVibrationStrength (plUInt8 uiVirtual, Motor::Enum motor, float fValue)
	Sets the vibration strength for the given controller and motor. fValue is a value between 0 and 1.

float	GetVibrationStrength (plUInt8 uiVirtual, Motor::Enum motor)
	Returns the amount of (constant) vibration that is currently set on this controller.

void	SetControllerMapping (plUInt8 uiVirtualController, plInt8 iTakeInputFromPhysical)
	Sets from which physical controller a virtual controller is supposed to take its input.

plInt8	GetControllerMapping (plUInt8 uiVirtual) const
	Returns from which physical controller the given virtual controller takes its input. May be negative, which means the virtual controller is deactivated.

void	AddVibrationTrack (plUInt8 uiVirtual, Motor::Enum motor, float *pVibrationTrackValue, plUInt32 uiSamples, float fScalingFactor=1.0f)
	Adds a short 'vibration track' (a sequence of vibrations) to the given controller.

Public Member Functions inherited from plInputDevice
	plInputDevice ()
	Default Constructor.

float	GetInputSlotState (plStringView sSlot) const
	Allows to query current input values for the given slot.

bool	HasDeviceBeenUsedLastFrame () const
	Returns true, if the device was 'used' during the last frame, ie. when it generated input due to some user interaction.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Static Public Member Functions
static plInputDeviceXBox360 *	GetDevice ()
	Returns an plInputDeviceXBox360 device.

static void	DestroyAllDevices ()
	Destroys all devices of this type. Automatically called at engine shutdown.

Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Private Member Functions
virtual void	InitializeDevice () override
	Override this if you need to do device specific initialization before the first use.

virtual void	UpdateInputSlotValues () override
	Override this, if you need to query the state of the hardware to update the input slots.

virtual void	RegisterInputSlots () override
	Override this to register all the input slots that this device exposes.

virtual void	UpdateHardwareState (plTime tTimeDifference) override
	This function is called once after plInputManager::Update with the same time delta value. It allows to update hardware state, such as the vibration of gamepad motors.

Additional Inherited Members
Public Types inherited from plInputDeviceController
enum	{ MaxControllers = 4 , VibrationSamplesPerSecond = 16 , VibrationTrackSeconds = 2 , MaxVibrationSamples = VibrationSamplesPerSecond * VibrationTrackSeconds }

Protected Member Functions inherited from plInputDeviceController
void	UpdateVibration (plTime tTimeDifference)
	Combines the constant vibration and vibration tracks and applies them on each controller.

Protected Member Functions inherited from plInputDevice
virtual void	ResetInputSlotValues ()
	Override this, if you need to reset certain input slot values to zero, after the plInputManager is finished with the current frame update.

Static Protected Member Functions inherited from plInputDevice
static void	RegisterInputSlot (plStringView sName, plStringView sDefaultDisplayName, plBitflags< plInputSlotFlags > SlotFlags)
	Calls RegisterInputSlot() on the plInputManager and passes the parameters through.

Protected Attributes inherited from plInputDevice
plMap< plString, float >	m_InputSlotValues
	Stores all the values for all input slots that this device handles.

plUInt32	m_uiLastCharacter
	If this input device type handles character input, it should write the last typed character into this variable. The plInputManager calls RetrieveLastCharacter() to query what the user typed last.

Protected Attributes inherited from plEnumerable< plInputDevice, plReflectedClass >
plEnumerable *	m_pNextInstance

Detailed Description

An implementation of plInputDeviceController that handles XBox 360 controllers.

Works on all platforms that provide the XINPUT API.

Member Function Documentation

◆ InitializeDevice()

virtual void plInputDeviceXBox360::InitializeDevice ( )

inlineoverrideprivatevirtual

Override this if you need to do device specific initialization before the first use.

Implements plInputDevice.

◆ IsControllerConnected()

bool plInputDeviceXBox360::IsControllerConnected ( plUInt8 uiPhysical ) const

overridevirtual

Queries whether the controller with the given physical index is connected to the computer. This may change at any time.

Implements plInputDeviceController.

◆ RegisterInputSlots()

void plInputDeviceXBox360::RegisterInputSlots ( )

overrideprivatevirtual

Override this to register all the input slots that this device exposes.

This is called once during initialization. It needs to call RegisterInputSlot() once for every input slot that this device exposes to the system.

Implements plInputDevice.

◆ UpdateHardwareState()

void plInputDeviceXBox360::UpdateHardwareState ( plTime tTimeDifference )

overrideprivatevirtual

This function is called once after plInputManager::Update with the same time delta value. It allows to update hardware state, such as the vibration of gamepad motors.

Reimplemented from plInputDevice.

◆ UpdateInputSlotValues()

void plInputDeviceXBox360::UpdateInputSlotValues ( )

overrideprivatevirtual

Override this, if you need to query the state of the hardware to update the input slots.

Note: This function might be called multiple times before ResetInputSlotValues() is called. This will be the case when plInputManager::PollHardware is used to make more frequent hardware updates than input is actually processed. Just make sure to always accumulate delta values (such as mouse move values) and don't expect ResetInputSlotValues() to be called in tandem with this function and it will be fine.

Implements plInputDevice.

The documentation for this class was generated from the following files:

Code/EnginePlugins/XBoxControllerPlugin/InputDeviceXBox.h
Code/EnginePlugins/XBoxControllerPlugin/InputDeviceXBox.cpp
Code/EnginePlugins/XBoxControllerPlugin/Startup.cpp
