plQtStandardPropertyWidget Class Reference

Base class for most 'simple' property type widgets. Implements some of the standard functionality. More...

#include <PropertyBaseWidget.moc.h>

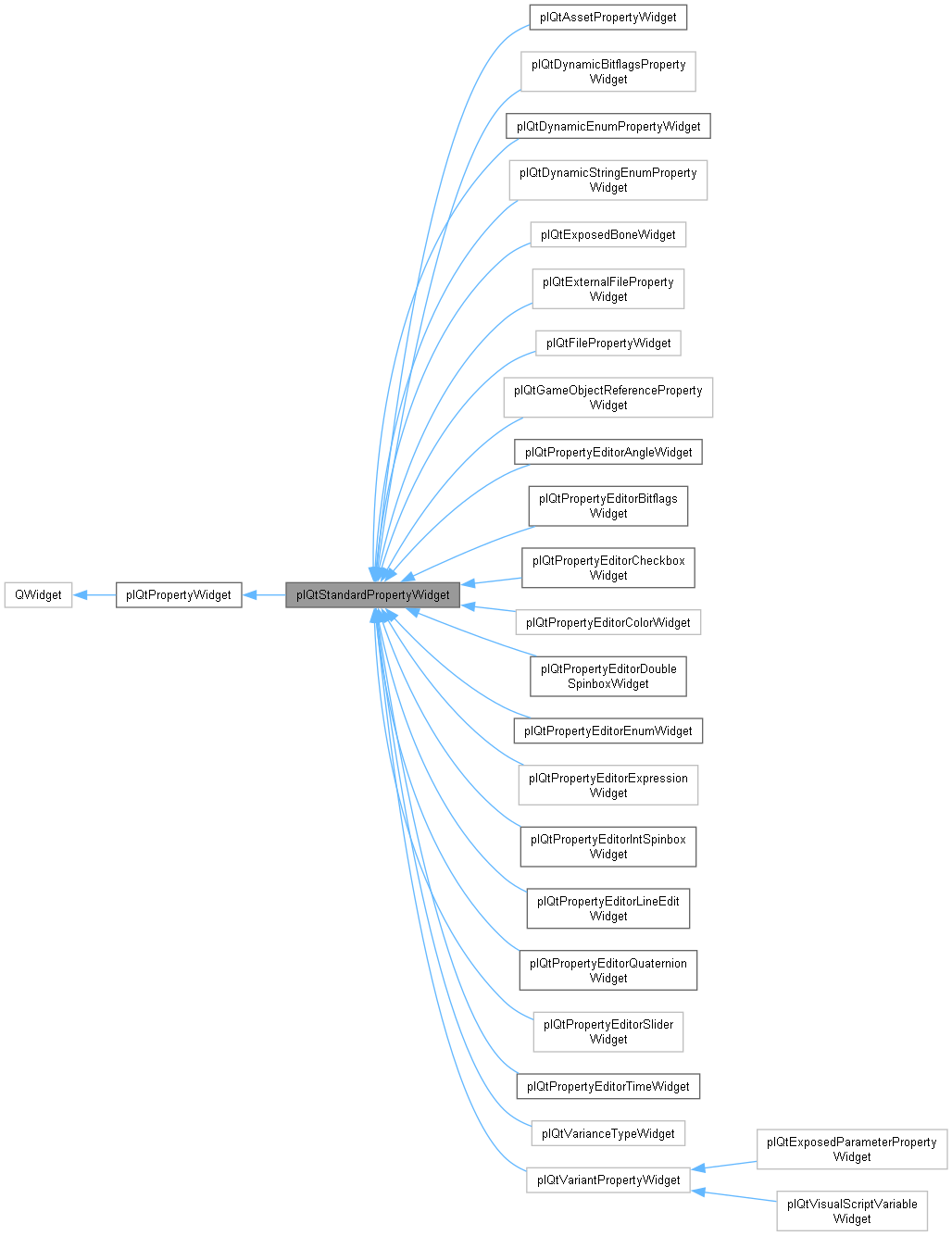

Inheritance diagram for plQtStandardPropertyWidget:

Public Member Functions
	plQtStandardPropertyWidget ()
	*** plQtStandardPropertyWidget ***
virtual void	SetSelection (const plHybridArray< plPropertySelection, 8 > &items) override
	This is called whenever the selection in the editor changes and thus the widget may need to display a different value.
Public Member Functions inherited from plQtPropertyWidget
	plQtPropertyWidget ()
	*** BASE ***
void	Init (plQtPropertyGridWidget *pGrid, plObjectAccessorBase *pObjectAccessor, const plRTTI *pType, const plAbstractProperty *pProp)
const plAbstractProperty *	GetProperty () const
const plHybridArray< plPropertySelection, 8 > &	GetSelection () const
virtual bool	HasLabel () const
	If this returns true (default), a QLabel is created and the text that GetLabel() returns is displayed.
virtual const char *	GetLabel (plStringBuilder &ref_sTmp) const
	The return value is used to display a label, if HasLabel() returns true.
virtual void	ExtendContextMenu (QMenu &ref_menu)
virtual void	SetIsDefault (bool bIsDefault)
	Whether the variable that the widget represents is currently set to the default value or has been modified.
bool	GetCommonVariantSubType (const plHybridArray< plPropertySelection, 8 > &items, const plAbstractProperty *pProperty, plVariantType::Enum &out_type)
	If the property is of type plVariant this function returns whether all items have the same type. If true is returned, out_Type contains the common type. Note that 'invalid' can be a common type.
plVariant	GetCommonValue (const plHybridArray< plPropertySelection, 8 > &items, const plAbstractProperty *pProperty)
void	PrepareToDie ()
virtual void	SetReadOnly (bool bReadOnly=true)
	By default disables the widget, but can be overridden to make a widget more interactable (for example to be able to copy text from it).

Protected Member Functions
void	BroadcastValueChanged (const plVariant &NewValue)
virtual void	DoPrepareToDie () override
const plVariant &	GetOldValue () const
virtual void	InternalSetValue (const plVariant &value)=0
Protected Member Functions inherited from plQtPropertyWidget
void	Broadcast (plPropertyEvent::Type type)
void	PropertyChangedHandler (const plPropertyEvent &ed)
virtual void	OnInit ()=0
bool	IsUndead () const
virtual bool	eventFilter (QObject *pWatched, QEvent *pEvent) override

Protected Attributes
plVariant	m_OldValue
Protected Attributes inherited from plQtPropertyWidget
plQtPropertyGridWidget *	m_pGrid = nullptr
plObjectAccessorBase *	m_pObjectAccessor = nullptr
const plRTTI *	m_pType = nullptr
const plAbstractProperty *	m_pProp = nullptr
plHybridArray< plPropertySelection, 8 >	m_Items
bool	m_bIsDefault
	Whether the variable that the widget represents is currently set to the default value or has been modified.

Additional Inherited Members
Public Slots inherited from plQtPropertyWidget
void	OnCustomContextMenu (const QPoint &pt)
Static Public Member Functions inherited from plQtPropertyWidget
static const plRTTI *	GetCommonBaseType (const plHybridArray< plPropertySelection, 8 > &items)
static QColor	SetPaletteBackgroundColor (plColorGammaUB inputColor, QPalette &ref_palette)

Detailed Description

Base class for most 'simple' property type widgets. Implements some of the standard functionality.

Member Function Documentation

DoPrepareToDie()

virtual void plQtStandardPropertyWidget::DoPrepareToDie ( )

inlineoverrideprotectedvirtual

Implements plQtPropertyWidget.

SetSelection()

void plQtStandardPropertyWidget::SetSelection ( const plHybridArray< plPropertySelection, 8 > & items )

overridevirtual

This is called whenever the selection in the editor changes and thus the widget may need to display a different value.

If the array holds more than one element, the user selected multiple objects. In this case, the code should check whether the values differ across the selected objects and if so, the widget should display "multiple values".

Reimplemented from plQtPropertyWidget.

Reimplemented in plQtExposedBoneWidget, and plQtVarianceTypeWidget.

---

The documentation for this class was generated from the following files:

• Code/Tools/Libs/GuiFoundation/PropertyGrid/PropertyBaseWidget.moc.h
• Code/Tools/Libs/GuiFoundation/PropertyGrid/Implementation/PropertyBaseWidget.cpp
