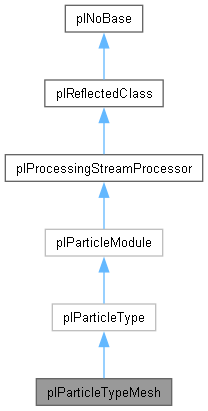

Inheritance diagram for plParticleTypeMesh:

[legend]

Public Member Functions
virtual void	CreateRequiredStreams () override

virtual void	ExtractTypeRenderData (plMsgExtractRenderData &ref_msg, const plTransform &instanceTransform) const override

Public Member Functions inherited from plParticleType
virtual float	GetMaxParticleRadius (float fParticleSize) const

Public Member Functions inherited from plParticleModule
virtual void	QueryOptionalStreams ()

void	Reset (plParticleSystemInstance *pOwner)

virtual void	OnFinalize ()
	Called after everything is set up.

plParticleSystemInstance *	GetOwnerSystem ()

const plParticleSystemInstance *	GetOwnerSystem () const

plParticleEffectInstance *	GetOwnerEffect () const

virtual void	RequestRequiredWorldModulesForCache (plParticleWorldModule *pParticleModule)
	Override this to cache world module pointers for later (through plParticleWorldModule::GetCachedWorldModule()).

Public Member Functions inherited from plProcessingStreamProcessor
	plProcessingStreamProcessor ()
	Base constructor.

virtual	~plProcessingStreamProcessor ()
	Base destructor.

Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
plMeshResourceHandle	m_hMesh

plMaterialResourceHandle	m_hMaterial

plTempHashedString	m_sTintColorParameter

Public Attributes inherited from plProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.

Protected Member Functions
virtual void	InitializeElements (plUInt64 uiStartIndex, plUInt64 uiNumElements) override
	This method needs to be implemented in order to initialize new elements to specific values.

virtual void	Process (plUInt64 uiNumElements) override
	The actual method which processes the data, will be called with the number of elements to process.

bool	QueryMeshAndMaterialInfo () const

Protected Member Functions inherited from plParticleType
virtual void	StepParticleSystem (const plTime &tDiff, plUInt32 uiNumNewParticles)

Protected Member Functions inherited from plParticleModule
virtual void	OnReset ()
	Called by Reset()

void	CreateStream (const char szName, plProcessingStream::DataType Type, plProcessingStream *ppStream, bool bWillInitializeStream)

virtual plResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.

plRandom &	GetRNG () const

Protected Attributes
plProcessingStream *	m_pStreamPosition = nullptr

plProcessingStream *	m_pStreamSize = nullptr

plProcessingStream *	m_pStreamColor = nullptr

plProcessingStream *	m_pStreamRotationSpeed = nullptr

plProcessingStream *	m_pStreamRotationOffset = nullptr

plProcessingStream *	m_pStreamAxis = nullptr

bool	m_bRenderDataCached = false

plBoundingBoxSphere	m_Bounds

plRenderData::Category	m_RenderCategory

Protected Attributes inherited from plParticleType
plTime	m_TimeDiff

plUInt64	m_uiLastExtractedFrame

Protected Attributes inherited from plProcessingStreamProcessor
plProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Additional Inherited Members
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Static Protected Member Functions inherited from plParticleType
static plUInt32	ComputeSortingKey (plParticleTypeRenderMode::Enum mode, plUInt32 uiTextureHash)

Member Function Documentation

◆ CreateRequiredStreams()

void plParticleTypeMesh::CreateRequiredStreams ( )

overridevirtual

void plParticleTypeMesh::ExtractTypeRenderData	(	plMsgExtractRenderData &	ref_msg,
		const plTransform &	instanceTransform ) const

overridevirtual

void plParticleTypeMesh::InitializeElements	(	plUInt64	uiStartIndex,
		plUInt64	uiNumElements )

overrideprotectedvirtual

This method needs to be implemented in order to initialize new elements to specific values.

Reimplemented from plParticleType.

virtual void plParticleTypeMesh::Process ( plUInt64 uiNumElements )

inlineoverrideprotectedvirtual

The actual method which processes the data, will be called with the number of elements to process.

The documentation for this class was generated from the following files:
