plThread Class Reference

This class is the base class for platform independent long running threads. More...

#include <Thread.h>

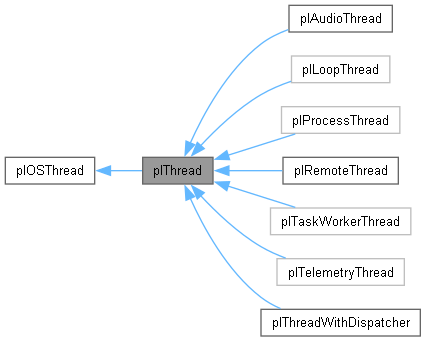

Inheritance diagram for plThread:

Public Types
enum	plThreadStatus { Created = 0 , Running , Finished }
	Describes the thread status.

Public Member Functions
	plThread (plStringView sName="plThread", plUInt32 uiStackSize=128 *1024)
	Initializes the runnable class.
virtual	~plThread ()
	Destructor checks if the thread is deleted while still running, which is not allowed as this is a data hazard.
plThreadStatus	GetThreadStatus () const
	Returns the thread status.
bool	IsRunning () const
	Helper function to determine if the thread is running.
const char *	GetThreadName () const
	Returns the thread name.
Public Member Functions inherited from plOSThread
	plOSThread (plOSThreadEntryPoint threadEntryPoint, void *pUserData=nullptr, plStringView sName="plOSThread", plUInt32 uiStackSize=128 *1024)
	Initializes the thread instance (e.g. thread creation etc.)
virtual	~plOSThread ()
	Destructor.
void	Start ()
	Starts the thread.
void	Join ()
	Waits in the calling thread until the thread has finished execution (e.g. returned from the thread function)
const plThreadID &	GetThreadID () const
	Returns the thread ID of the thread object, may be used in comparison operations with plThreadUtils::GetCurrentThreadID() for example.

Static Public Member Functions
static const plThread *	GetCurrentThread ()
	Returns the current plThread if the current platform thread is an plThread. Returns nullptr otherwise.
Static Public Member Functions inherited from plOSThread
static plInt32	GetThreadCount ()
	Returns how many plOSThreads are currently active.

Static Public Attributes
static plEvent< const plThreadEvent &, plMutex >	s_ThreadEvents
	These events inform about threads starting and finishing.

Private Member Functions
virtual plUInt32	Run ()=0
	The run function can be used to implement a long running task in a thread in a platform independent way.

Friends
plUInt32	RunThread (plThread *pThread)

Additional Inherited Members
Protected Attributes inherited from plOSThread
plThreadHandle	m_hHandle
plThreadID	m_ThreadID
plOSThreadEntryPoint	m_EntryPoint
void *	m_pUserData
plString	m_sName
plUInt32	m_uiStackSize

Detailed Description

This class is the base class for platform independent long running threads.

Used by deriving from this class and overriding the Run() method.

Member Function Documentation

Run()

virtual plUInt32 plThread::Run ( )

privatepure virtual

The run function can be used to implement a long running task in a thread in a platform independent way.

Implemented in plAudioThread, plProcessThread, plRemoteThread, plTaskWorkerThread, and plThreadWithDispatcher.

Member Data Documentation

s_ThreadEvents

plEvent< const plThreadEvent &, plMutex > plThread::s_ThreadEvents

static

These events inform about threads starting and finishing.

The events are raised on the executing thread! That means thread-specific code may be executed during the event callback, e.g. to set up thread-local functionality.

---

The documentation for this class was generated from the following files:

• Code/Engine/Foundation/Threading/Thread.h
• Code/Engine/Foundation/Threading/Implementation/Thread.cpp
