plGALBufferVulkan Class Reference

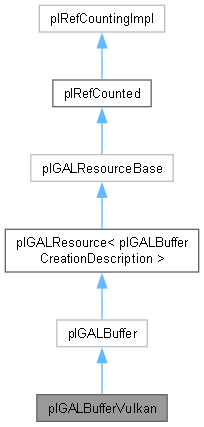

Inheritance diagram for plGALBufferVulkan:

Classes
struct	BufferVulkan

Public Member Functions
void	DiscardBuffer () const
PL_ALWAYS_INLINE vk::Buffer	GetVkBuffer () const
const vk::DescriptorBufferInfo &	GetBufferInfo () const
PL_ALWAYS_INLINE vk::IndexType	GetIndexType () const
PL_ALWAYS_INLINE plVulkanAllocation	GetAllocation () const
PL_ALWAYS_INLINE const plVulkanAllocationInfo &	GetAllocationInfo () const
PL_ALWAYS_INLINE vk::PipelineStageFlags	GetUsedByPipelineStage () const
PL_ALWAYS_INLINE vk::AccessFlags	GetAccessMask () const
Public Member Functions inherited from plGALBuffer
PL_ALWAYS_INLINE plUInt32	GetSize () const
Public Member Functions inherited from plGALResource< plGALBufferCreationDescription >
PL_ALWAYS_INLINE	plGALResource (const plGALBufferCreationDescription &description)
PL_ALWAYS_INLINE const plGALBufferCreationDescription &	GetDescription () const
Public Member Functions inherited from plGALResourceBase
void	SetDebugName (const char *szName) const
virtual const plGALResourceBase *	GetParentResource () const
Public Member Functions inherited from plRefCounted
virtual	~plRefCounted ()=default
	Adds a virtual destructor.
Public Member Functions inherited from plRefCountingImpl
	plRefCountingImpl ()=default
	Constructor.
	plRefCountingImpl (const plRefCountingImpl &rhs)
void	operator= (const plRefCountingImpl &rhs)
plInt32	AddRef () const
	Increments the reference counter. Returns the new reference count.
plInt32	ReleaseRef () const
	Decrements the reference counter. Returns the new reference count.
bool	IsReferenced () const
	Returns true if the reference count is greater than 0, false otherwise.
plInt32	GetRefCount () const
	Returns the current reference count.

Static Public Member Functions
static vk::DeviceSize	GetAlignment (const plGALDeviceVulkan *pDevice, vk::BufferUsageFlags usage)

Protected Member Functions
	plGALBufferVulkan (const plGALBufferCreationDescription &Description, bool bCPU=false)
virtual plResult	InitPlatform (plGALDevice *pDevice, plArrayPtr< const plUInt8 > pInitialData) override
virtual plResult	DeInitPlatform (plGALDevice *pDevice) override
virtual void	SetDebugNamePlatform (const char *szName) const override
void	CreateBuffer () const
Protected Member Functions inherited from plGALBuffer
	plGALBuffer (const plGALBufferCreationDescription &Description)

Protected Attributes
BufferVulkan	m_currentBuffer
vk::DescriptorBufferInfo	m_resourceBufferInfo
plDeque< BufferVulkan >	m_usedBuffers
plVulkanAllocationInfo	m_allocInfo
vk::PipelineStageFlags	m_stages = {}
vk::AccessFlags	m_access = {}
vk::IndexType	m_indexType = vk::IndexType::eUint16
vk::BufferUsageFlags	m_usage = {}
vk::DeviceSize	m_size = 0
plGALDeviceVulkan *	m_pDeviceVulkan = nullptr
vk::Device	m_device
bool	m_bCPU = false
plString	m_sDebugName
Protected Attributes inherited from plGALBuffer
plGALBufferResourceViewHandle	m_hDefaultResourceView
plHashTable< plUInt32, plGALBufferResourceViewHandle >	m_ResourceViews
plHashTable< plUInt32, plGALBufferUnorderedAccessViewHandle >	m_UnorderedAccessViews
Protected Attributes inherited from plGALResource< plGALBufferCreationDescription >
const plGALBufferCreationDescription	m_Description

Friends
class	plGALDeviceVulkan
class	plMemoryUtils

Member Function Documentation

DeInitPlatform()

plResult plGALBufferVulkan::DeInitPlatform ( plGALDevice * pDevice )

overrideprotectedvirtual

Implements plGALBuffer.

InitPlatform()

plResult plGALBufferVulkan::InitPlatform ( plGALDevice * pDevice, plArrayPtr< const plUInt8 > pInitialData )

overrideprotectedvirtual

Implements plGALBuffer.

SetDebugNamePlatform()

void plGALBufferVulkan::SetDebugNamePlatform ( const char * szName ) const

overrideprotectedvirtual

Implements plGALResourceBase.

---

The documentation for this class was generated from the following files:

• Code/Engine/RendererVulkan/Resources/BufferVulkan.h
• Code/Engine/RendererVulkan/Resources/Implementation/BufferVulkan.cpp
• Code/Engine/RendererVulkan/Resources/Implementation/BufferVulkan_inl.h
